Thermal Solutions for Power Tools & Intelligent Control Systems

Industry status

Power-tool platforms are converging on brushless drives and lithium battery packs, concentrating thermal load onto a handful of MOSFETs, gate drivers, and power resistors inside the controller PCBA. Operating conditions — sustained heavy load, frequent switching, vibration, and drop impact — degrade conventional thermal greases and low-density pads, which then flow, displace, or tear in service. End customers in North America and Europe now require export-compliance documentation as a precondition for material approval.

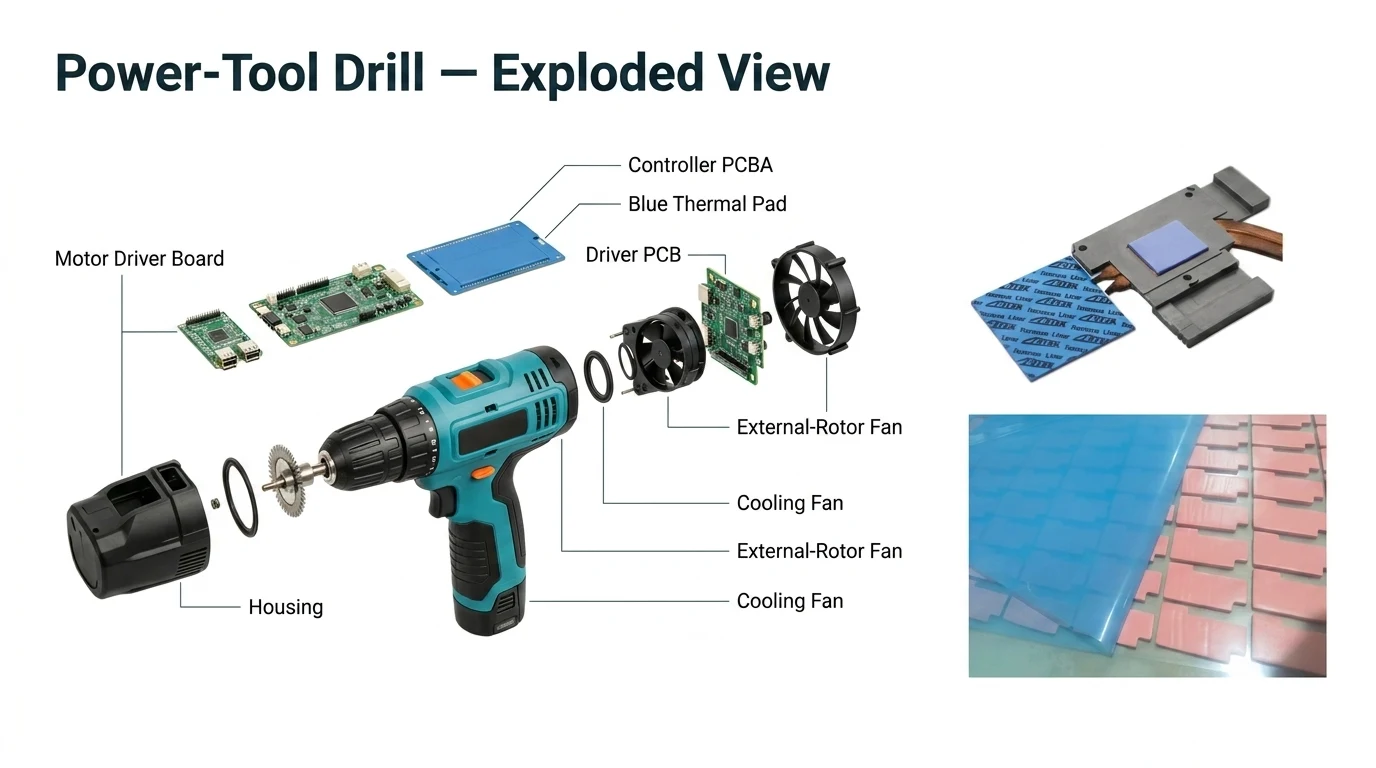

The two critical thermal interfaces in a typical platform, and the Ziitek materials qualified at each position on the FYT program, are described below.

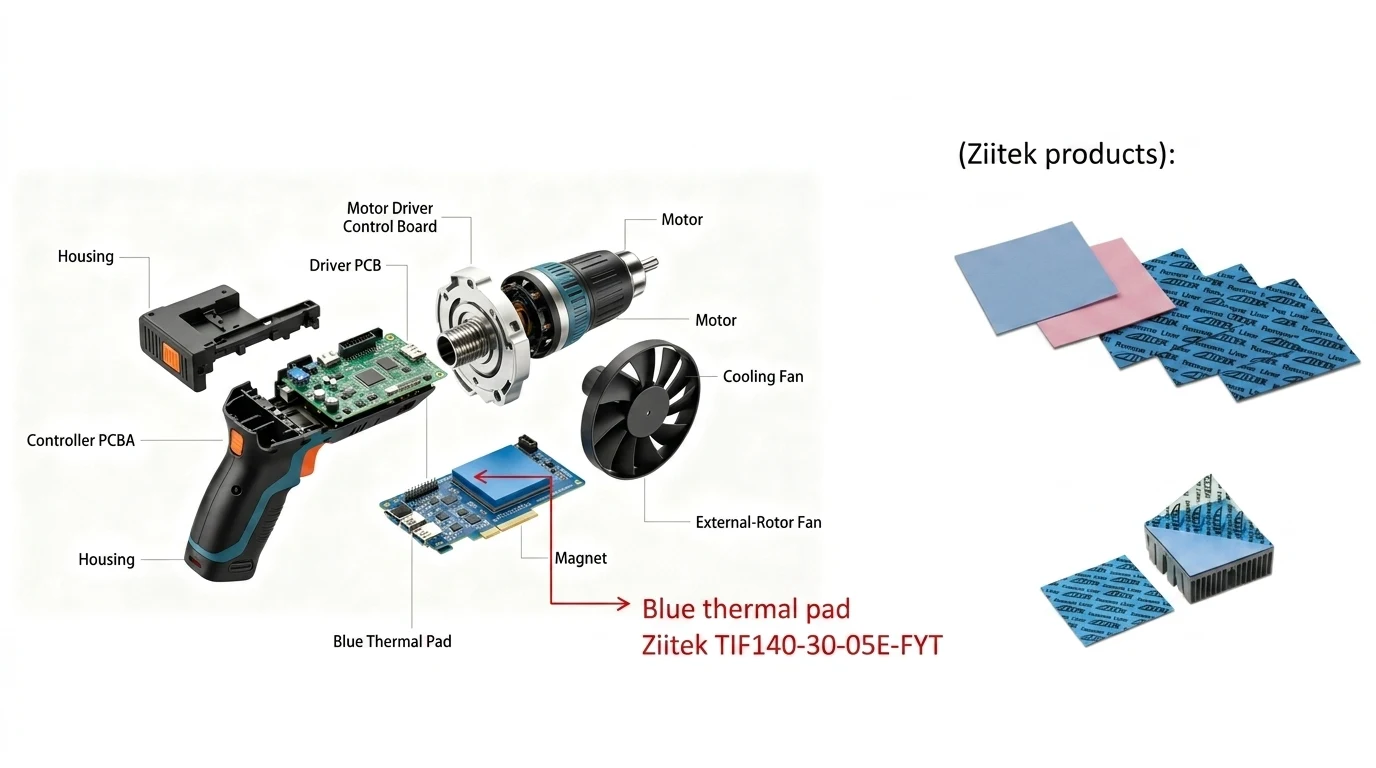

PCBA control board to heatsink — gap fill

At the interface between the motor-driver PCBA and the aluminum heatsink, the customer previously used an imported Tier-1 silicone pad. The incumbent pad was 3.0 W/m·K at Shore OO 30; the low hardness made it prone to tearing during die-cut assembly. Ziitek qualified TIF140-30-05E-FYT — same 3.0 W/m·K conductivity, but moved to Shore OO 45 — for this position. The higher hardness improved die-cut handling, vibration resistance, and locating accuracy on the assembly line without sacrificing gap-fill conformity. The pad ships without backing adhesive but remains tack-coated and self-locating on the PCBA.

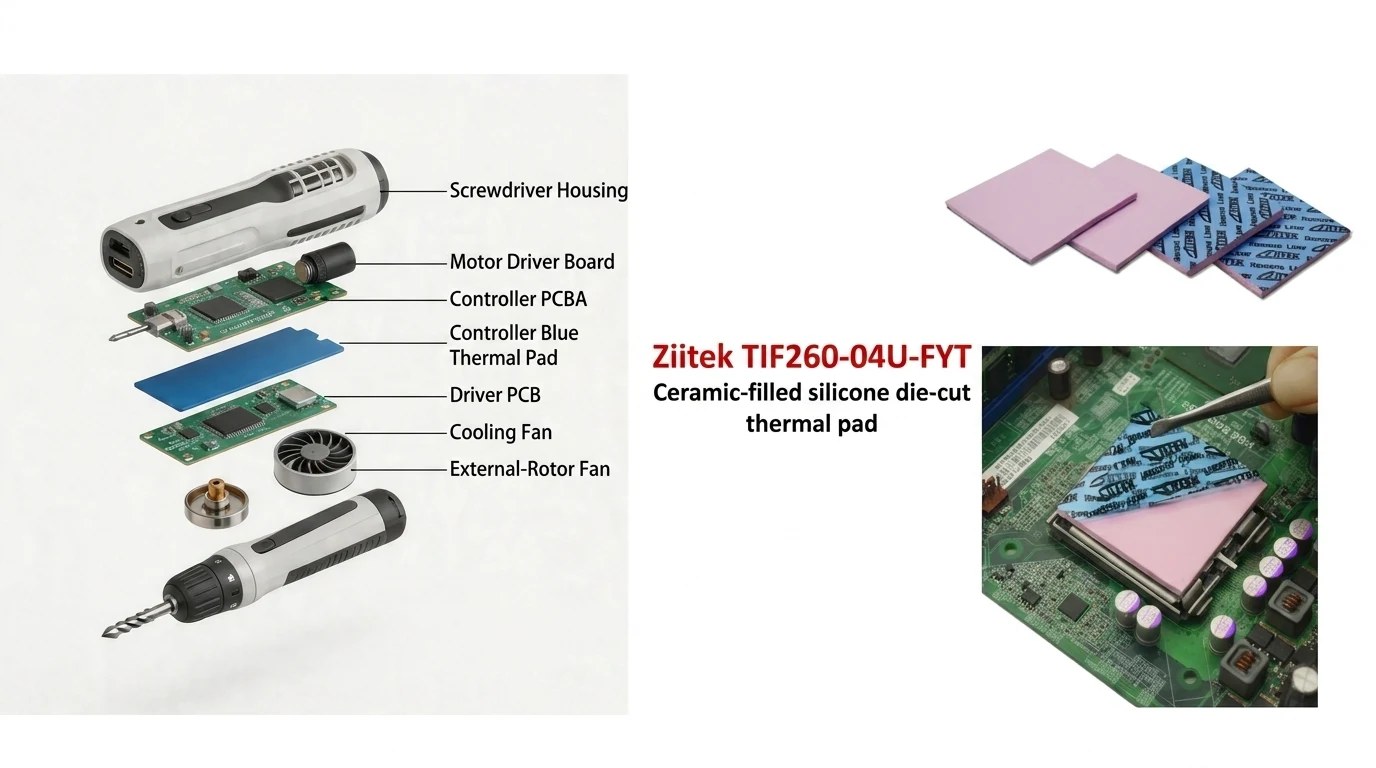

MOSFET to aluminum housing — die-cut interface

At the interface between the MOSFET array and the aluminum housing, the incumbent imported pad was tested at 0.8 W/m·K by a third-party lab. Ziitek qualified TIF260-04U-FYT, tested at 1.25 W/m·K by the same lab, with better compression rebound and improved tear resistance under die-cut handling. The pad is die-cut to the exact MOSFET footprint and supplied with a backing adhesive that simplifies assembly without compromising thermal contact.

International compliance and material qualification

Tools shipped under the FYT program must clear a multi-jurisdiction compliance stack — PAHs, PFAS, POPs, RoHS, SVHC, TSCA, California Proposition 65, and REACH — before any new thermal material can be approved. The TIF140-30-05E-FYT and TIF260-04U-FYT materials are UL94 V-0 listed and ship with the full SDS / RoHS / REACH / PFAS-free declarations attached to every batch.

Project results

On the FYT program, replacing the incumbent imported pads with the TIF140-30-05E-FYT / TIF260-04U-FYT combination produced the following verified results:

• Peak MOSFET junction temperature reduced by 18 °C; expected device life extended by more than 2×
• Per-unit BOM cost on the thermal interface reduced by approximately 20%
• Assembly yield improved from 92% to 98.5%, reducing rework loss
• Passed full-tool 1 m drop testing and 200-hour vibration testing
• Lead time reduced from 6–8 weeks (imported) to 2–3 weeks (Ziitek), with 24-hour local engineering support

Sample-to-mass-production cycle was 10 weeks: first sample shipment in week 2, third-party test report and customer-side temperature testing in weeks 2–3, full compression / thermal-cycle / aging validation through week 5, 500-unit pilot run at 98.5% yield in week 7, and signed annual strategic agreement in week 10.

Conclusion

Ziitek's power-tools portfolio is qualified against incumbent imported pads on a live brushless tool platform, with verified performance, cost, lead-time, and export-compliance advantages. The TIF140 / TIF260 family is the reference configuration we recommend for new cordless platform programs.
