TIS680-28AB Silicone Potting Compound
- Breakdown Voltage (V/mm)
- ≥10000
- Density (g/cm³)
- 2.2
- Dielectric Constant @1MHz
- 4.2
- Flame Rating
- V-0
- Hardness (Shore A)
- 65
- Part A Viscosity (mPa·s)
- 6000
TIS680-28AB — Product overview

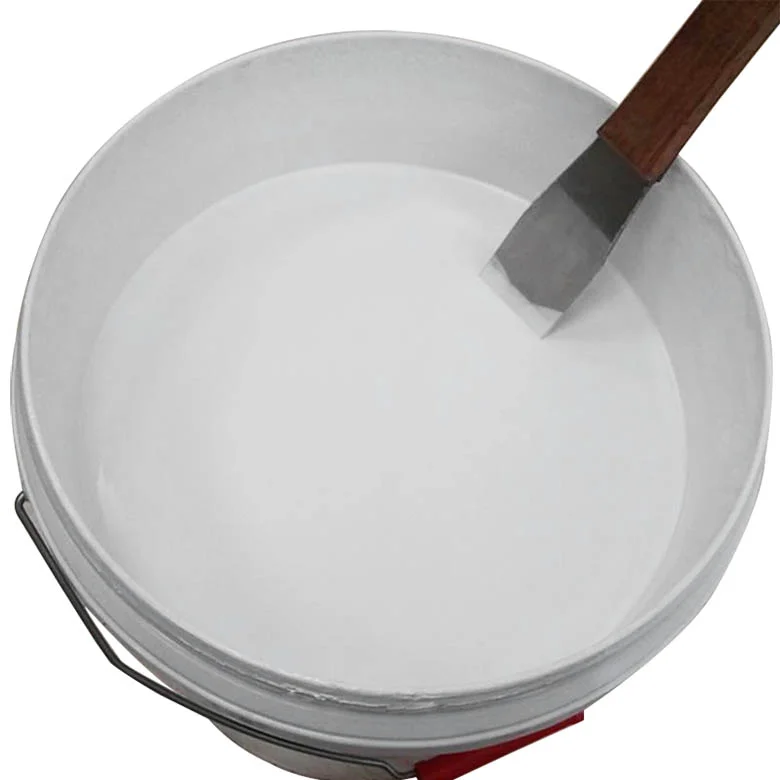

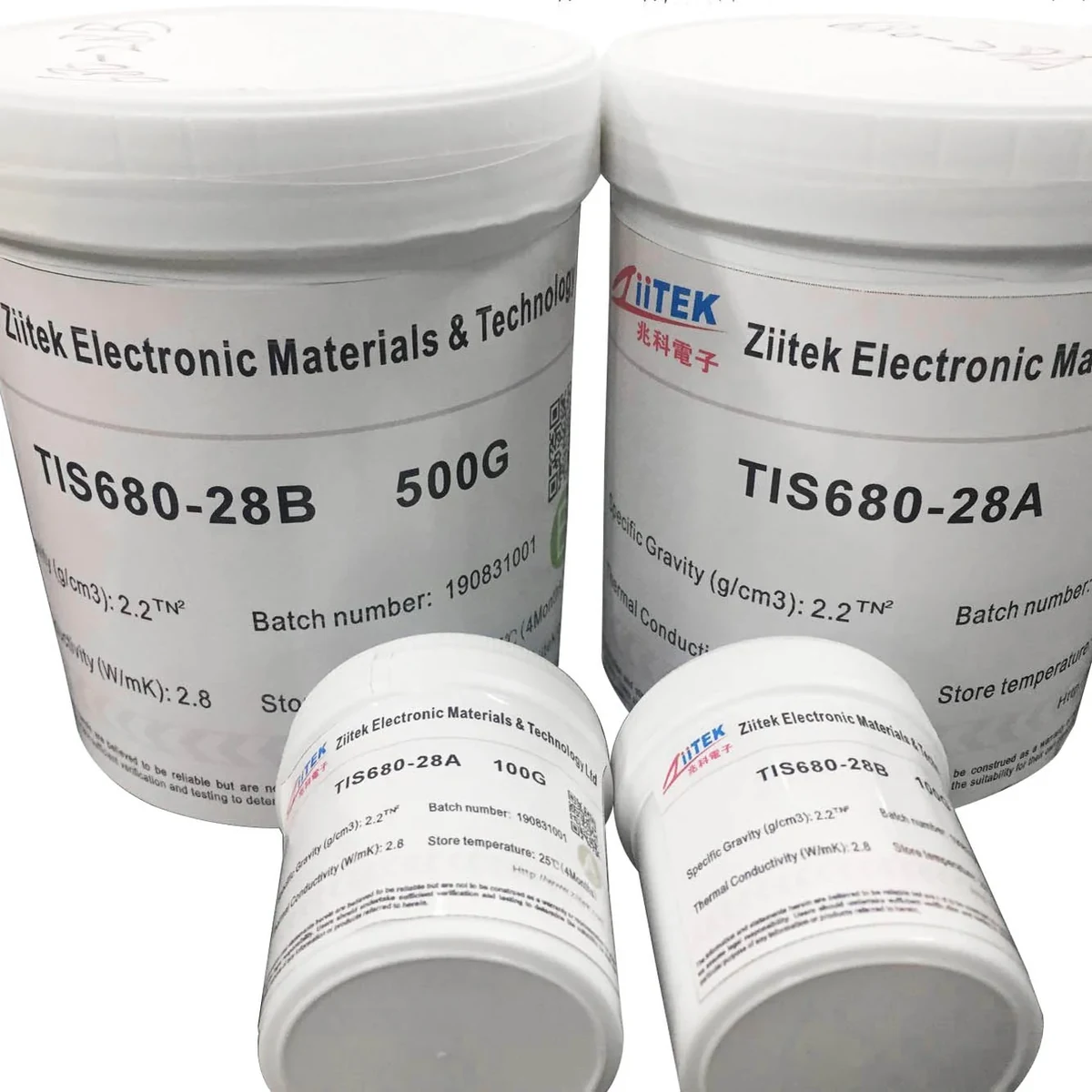

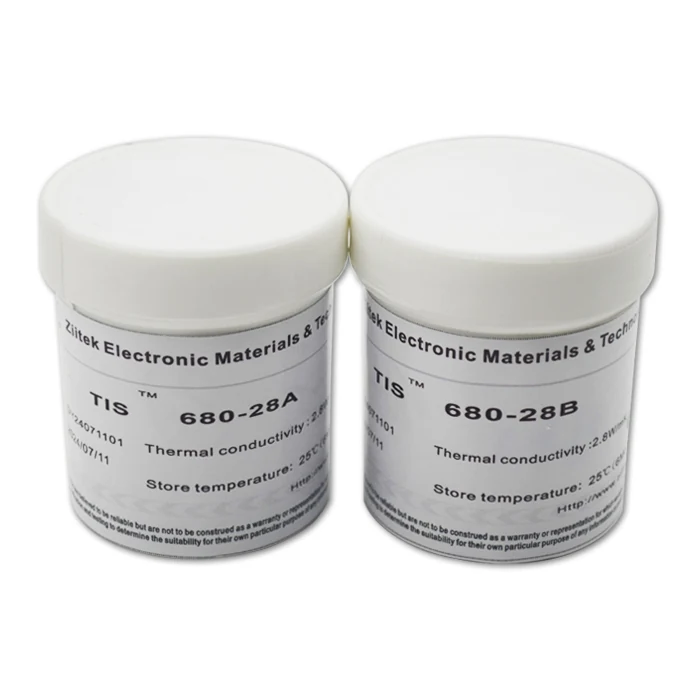

TIS®680-28AB is a two-component potting adhesive. When Component A and Component B are mixed in a specific ratio, the adhesive can cure and form into shape either at room temperature or under heating conditions. After curing, it forms a dense elastomer with integrated performance characteristics: excellent thermal conductivity, electrical insulation, resistance to extreme temperatures, and anti-aging properties. It features low shrinkage rate, can closely adhere to various substrates, and effectively fills the gaps between electronic components. This product delivers comprehensive protection for electronic assemblies, including thermal conduction, insulation, waterproofing, shock absorption, flame retardancy, and mechanical safeguarding.
TIS680-28AB — Features
Good thermal conductivity
Excellent electrical insulation performance
Controllable curing performance
Flexibly adjustable mechanical properties
Low viscosity facilitating gas release
Excellent solvent and water resistance
Where this grade is used
Typical application targets for this grade include New energy vehicle electronics, Industrial electronics and power equipment, Consumer electronics, Medical electronics, Aerospace electronic components, Rail transit electronic equipment, Marine detection equipment.
EV packs · OBC · inverters · BMS
New energy
EV battery modules, traction inverters, on-board chargers, and renewable power conversion — thermal management for high-current cycling loads with HV isolation requirements.
Drives · IGBT · controllers · sensors
Power Tools & Control Systems
Industrial controls, motor drives, power-stage IGBTs, and rugged modules — thermal interfaces, sealing, and encapsulation built for serviceable assemblies and harsh environments.
TIS680-28AB — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIS680-28AB_Data-Sheet.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Material Properties (Before Curing) | ||
| Color/Part A | White | Visual |
| Color/Part B | White | Visual |
| Part A Viscosity (mPa·s) | 6000 | GB/T 10247 |
| Part B Viscosity (mPa·s) | 6000 | GB/T 10247 |
| Mix Ratio | 1:1 | - |
| Shelf Life (Month) @25°C | 12 (Unopened) | - |
| Cure Schedule | ||
| Pot Life @25°C | 30 mins | Ziitek Test Method |
| Cure @25°C (hours) | 3 | Ziitek Test Method |
| Cure @70°C | 20 mins | Ziitek Test Method |
| Cure Material Properties | ||
| Color | White | Visual |
| Hardness (Shore A) | 65 | ASTM D2240 |
| Density (g/cm³) | 2.2 | ASTM D792 |
| Thermal Impedance @10 psi | 0.28 °C·in²/W | ASTM D5470 |
| Thermal Conductivity (W/m·K) | 2.8 | ASTM D5470 |
| Breakdown Voltage (V/mm) | ≥10000 | ASTM D149 |
| Dielectric Constant @1MHz | 4.2 | ASTM D150 |
| Volume Resistivity | > 1.0×10¹³ Ω·cm | ASTM D257 |
| Elongation at Break | 4.0 % | ASTM D638 |
| Water Absorption (% WT) @ 25°C, 24 h Immersion | < 0.1 | ASTM D570 |
| Recommended Operating Temperature | -45~200 °C | - |
| Flame Rating | V-0 | UL 94 |
* Match values to the PDF revision cited on your purchase order.
Related silicone potting compounds models
TIS680-28AB — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIS680-28AB?
The customer workbook lists nominal through-plane conductivity as 2.8 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIS680-28AB die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Silicone potting compounds parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIS680-28AB?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIS680-28AB RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
