TIF030-WA Thermal Gel
- Bond Line Thickness (mm)
- 0.1 mm
- Density (g/cm³)
- 4.0
- Flame Rating
- V-0
- Recommended Operating Tem…
- -40~200
- Thermal Conductivity (W/m·K)
- 3.0
- Color
- Gray
TIF030-WA — Product overview

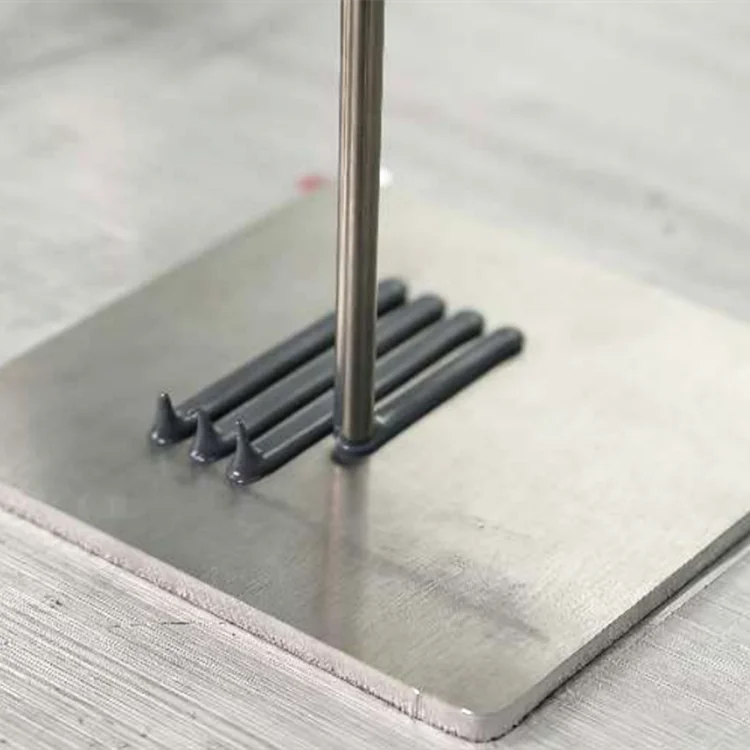

TIF®030-WA is a one-component thermally conductive and wave-absorbing silicone gel engineered for high-performance equipment. It delivers excellent EMI suppression alongside superior thermal conductivity, making it ideal for applications that need both electromagnetic wave absorption and heat dissipation in a single material. Its gel form gives outstanding application flexibility, gap adaptability, compressibility, and conformability, and it is compatible with large-scale automated dispensing — especially suitable for irregular surfaces and gap-filling scenarios. EMI absorption peaks around 11 GHz (~17 dB attenuation) across roughly 1-16 GHz.
TIF030-WA — Features
Integrated thermal conductivity and EMI wave-absorption dual functions
Highly flexible silicone gel material
High-viscosity stable system
No filler migration
Easy automated dispensing
Long-term reliability
Single-part dispense and use
No curing required
Where this grade is used
Typical application targets for this grade include RF modules in routers and switches, RF chips in smartphones, tablets, and laptops, Battery management systems for new-energy vehicles, Power modules and industrial control motherboards, Lasers, sensors, and high-speed transmission interfaces.
Servers · GPU · accelerators · DIMM
Data Center & AI Servers
High-flux silicon and dense PCBs — CPU/GPU bond-lines, VRM/DIMM/NIC interfaces, and accelerator cold-plate paths. Match grade against clamp force, TIM impedance, and rework cadence.
EV packs · OBC · inverters · BMS
New energy
EV battery modules, traction inverters, on-board chargers, and renewable power conversion — thermal management for high-current cycling loads with HV isolation requirements.
Drives · IGBT · controllers · sensors
Power Tools & Control Systems
Industrial controls, motor drives, power-stage IGBTs, and rugged modules — thermal interfaces, sealing, and encapsulation built for serviceable assemblies and harsh environments.
TIF030-WA — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIF030-WA_Data-Sheet.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Color | Gray | Visual |
| Construction | Ceramic and magnetic powder filled silicone material | — |
| Flow Rate (g/min) | 30 | — |
| Density (g/cm³) | 4.0 | ASTM D792 |
| Thermal Conductivity (W/m·K) | 3.0 | ASTM D5470 |
| Thermal Impedance @10psi (°C·in²/W) | 0.08 | ASTM D5470 |
| Thermal Impedance @50psi (°C·in²/W) | 0.07 | ASTM D5470 |
| Recommended Operating Temperature (°C) | -40~200 | — |
| Bond Line Thickness (mm) | 0.1 | — |
| Flame Rating | V-0 | UL94 |
| Shelf Life (Month) | 12 (Unopened) | — |
* Match values to the PDF revision cited on your purchase order.
Related thermal putty and thermal gel models
TIF030-WA — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIF030-WA?
The customer workbook lists nominal through-plane conductivity as — W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIF030-WA die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Thermal putty and thermal gel parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIF030-WA?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIF030-WA RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
