TIF050AB-11S Thermal Gel
- Bond Line Thickness
- 0.1 mm
- Breakdown Voltage (V/mm)
- ≥5500
- Component A Viscosity (mP…
- 2,800,000
- Component B Viscosity (mP…
- 3,000,000
- Density (g/cm³)
- 3.2
- Flame Rating
- V-0

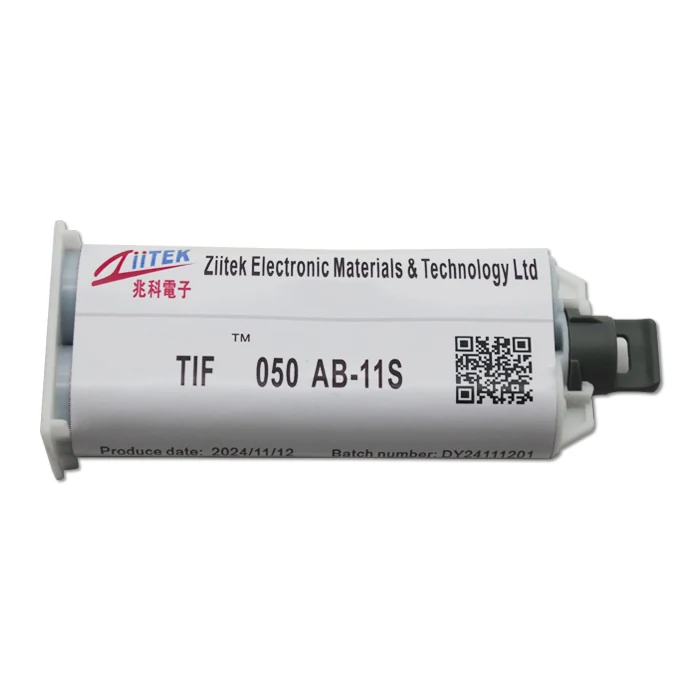

TIF050AB-11S — Product overview
TIF®050AB-11S is a high thermal conductivity liquid gap-filling material adopting a two-component formulation, which can be tailored to differentiated curing requirements under varying temperatures. Specifically engineered for low-stress assembly scenarios and high compressive modulus application requirements, this material forms intimate contact with mating surfaces during electronic product assembly, effectively reducing contact thermal resistance while delivering excellent electrical insulation performance. After curing, its performance is equivalent to that of thermal conductive silicone sheets, with outstanding high-temperature resistance and anti-aging stability.
TIF050AB-11S — Features
High thermal conductivity
Two-part formulation for easy storage
Excellent low and high temperature mechanical and chemical stability
Ultra-conforming low-stress interface application
Ambient or accelerated cure schedules
Optimized shear thinning characteristics for ease of dispensing
Where this grade is used
Typical application targets for this grade include Computer and peripherals, Telecommunications, Automotive electronics, Thermally conductive vibration dampening, Heat sink and any heat generating semiconductor.
Servers · GPU · accelerators · DIMM
Data Center & AI Servers
High-flux silicon and dense PCBs — CPU/GPU bond-lines, VRM/DIMM/NIC interfaces, and accelerator cold-plate paths. Match grade against clamp force, TIM impedance, and rework cadence.
EV packs · OBC · inverters · BMS
New energy
EV battery modules, traction inverters, on-board chargers, and renewable power conversion — thermal management for high-current cycling loads with HV isolation requirements.
Drives · IGBT · controllers · sensors
Power Tools & Control Systems
Industrial controls, motor drives, power-stage IGBTs, and rugged modules — thermal interfaces, sealing, and encapsulation built for serviceable assemblies and harsh environments.
TIF050AB-11S — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIF050AB-11S_Data-Sheet (1).pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Uncured Material Properties | ||
| Construction & Composition | Ceramic filled silicon material | - |
| Color/Part A | White | Visual |
| Color/Part B | Gray | Visual |
| Component A Viscosity (mPa·s) | 2,800,000 | GB/T 10247 |
| Component B Viscosity (mPa·s) | 3,000,000 | GB/T 10247 |
| Flow Rate | 6 g/min | Ziitek Test Method (50 cc syringe/1.5 mm orifice/90 psi) |
| Density (g/cm³) | 3.2 | ASTM D792 |
| Bond Line Thickness | 0.1 mm | - |
| Thermal Resistance @10psi | 0.08 °C·in²/W | ASTM D5470 |
| Thermal Resistance @50psi | 0.07 °C·in²/W | ASTM D5470 |
| Mix Ratio | 1:1 | - |
| Shelf Life (months) | 12 | - |
| Cure Schedule | ||
| Pot Life @ 25°C | 30 min | Ziitek Test Method |
| Cure @ 25°C | 60 min | Ziitek Test Method |
| Cure @ 70°C | 30 min | Ziitek Test Method |
| Cure Material Properties | ||
| Color | Gray | Visual |
| Hardness (Shore OO) | 45 | ASTM D2240 |
| Recommended Operating Temperature | -45 ~ 200 °C | - |
| Breakdown Voltage (V/mm) | ≥5500 | ASTM D149 |
| Flame Rating | V-0 | UL 94 |
| Thermal Conductivity (W/m·K) | 5.0 | ASTM D5470 |
* Match values to the PDF revision cited on your purchase order.
Related thermal putty and thermal gel models
TIF050AB-11S — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIF050AB-11S?
The customer workbook lists nominal through-plane conductivity as 5 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIF050AB-11S die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Thermal putty and thermal gel parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIF050AB-11S?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIF050AB-11S RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
