TIF800TU Silicone Thermal Pad
- Breakdown Voltage (V/mm)
- ≥5500
- Density (g/cm³)
- 3.3
- Dielectric Constant @1MHz
- 7.5
- Flame Rating
- V-0
- Hardness (Shore OO) (3 se…
- ASTM D2240 25/10
- Recommended Operating Tem…
- -40~200

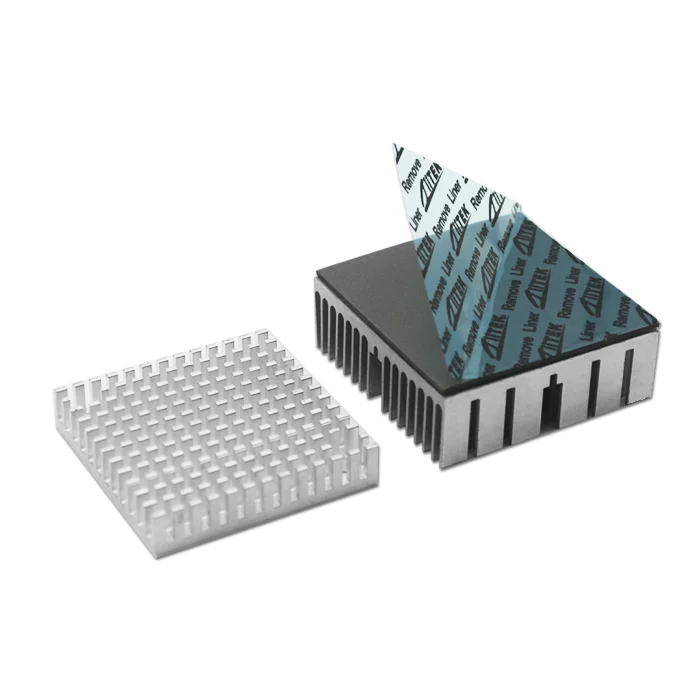

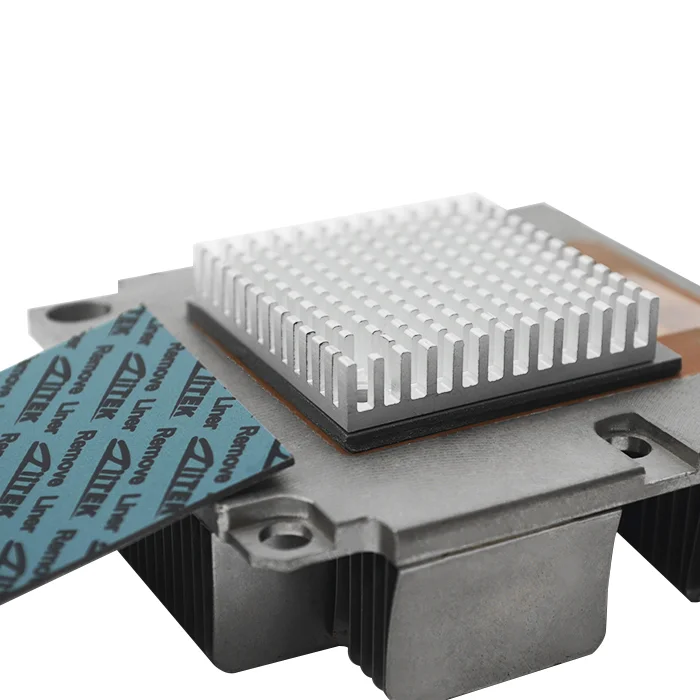

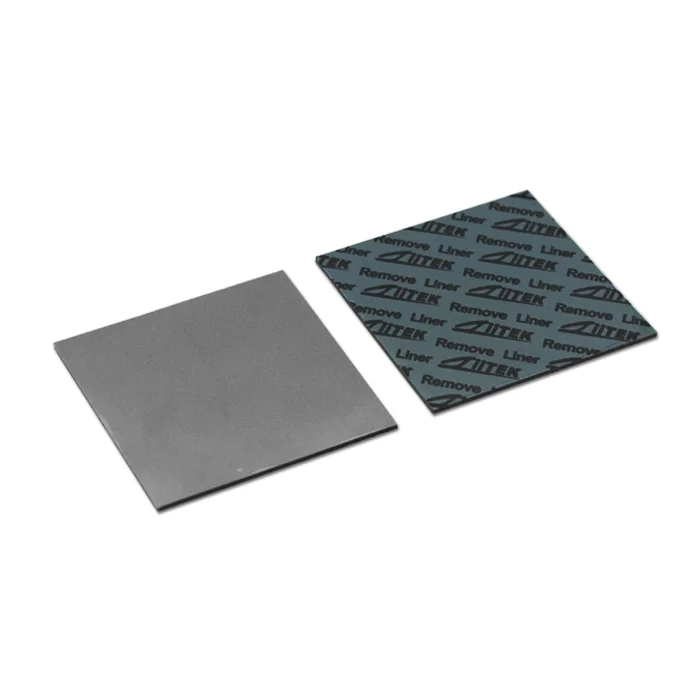

TIF800TU — Product overview
TIF®800TU Series is an ultra-soft thermal interface material, specially designed to protect precision components extremely sensitive to mechanical stress. This product combines ultra-high thermal conductivity with extreme gel-like softness, adapting to various uneven heat dissipation interfaces, compensating for assembly tolerances, minimizing air thermal resistance, and efficiently dissipating heat while providing comprehensive protection for chips, sensors and optoelectronic devices. It is the preferred solution for heat dissipation and protection in precision electronics.
TIF800TU — Features
Excellent thermal conductivity
Super soft and highly compliant
Good insulation performance
Self adhesive without the need for additional surface adhesive
Where this grade is used
Typical application targets for this grade include AI Servers, Semiconductor Packaging, Low-Altitude Aircraft, Optical Communication Products, 5G Base Stations.
Servers · GPU · accelerators · DIMM
Data Center & AI Servers
High-flux silicon and dense PCBs — CPU/GPU bond-lines, VRM/DIMM/NIC interfaces, and accelerator cold-plate paths. Match grade against clamp force, TIM impedance, and rework cadence.
EV packs · OBC · inverters · BMS
New energy
EV battery modules, traction inverters, on-board chargers, and renewable power conversion — thermal management for high-current cycling loads with HV isolation requirements.
TIF800TU — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIF800TU_Data-Sheet.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Color | Gray | Visual |
| Construction | Ceramic filled silicone elastomer | — |
| Thickness Range | 0.030" (0.75 mm) / 0.040~0.200" (1.00~5.00 mm) | ASTM D374 |
| Hardness (Shore OO) (3 second/30 second) | ASTM D2240 25/10 | — |
| Density (g/cm³) | 3.3 | ASTM D792 |
| Recommended Operating Temperature (°C) | -40~200 | — |
| Breakdown Voltage (V/mm) | ≥5500 | ASTM D149 |
| Dielectric Constant @1MHz | 7.5 | ASTM D150 |
| Volume Resistivity (Ω·cm) | >1.0×10¹² | ASTM D257 |
| Thermal Conductivity (W/m·K) | 16.0 | — |
| Flame Rating | V-0 | UL94 (E331100) |
* Match values to the PDF revision cited on your purchase order.
Related silicone thermal pads models
| Model | Series | λ (W/m·K) | Hardness | View |
|---|---|---|---|---|
| TIF100-10-02S | TIF100 | 1 W/m·K | 45 | Details |
| TIF100-12-66U | TIF100 | 1.2 W/m·K | 27~65 | Details |
| TIF100-15-11U | TIF100 | 1.5 W/m·K | 27~65 | Details |
| TIF100-18-02S | TIF100 | 1.8 W/m·K | 45~65 | Details |
| TIF500-18-11US | TIF500 | 1.8 W/m·K | 20~65 | Details |
| TIF100-20-05E | TIF100 | 2 W/m·K | 35~65 | Details |
| TIF200-20-14S | TIF200 | 2 W/m·K | 45±5 | Details |
| TIF400 | TIF400 | 2 W/m·K | 45 | Details |
TIF800TU — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIF800TU?
The customer workbook lists nominal through-plane conductivity as 16 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIF800TU die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Silicone thermal pads parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIF800TU?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIF800TU RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
