TIS300-45 Thermally Conductive Insulator
- Density (g/cm³)
- 2.4
- Flame Rating
- V-0
- Hardness
- 70 Shore OO
- Recommended Operating Tem…
- -40 to 200 °C
- Surface Resistivity (Ω·cm)
- <1.0×10³
- Thermal Conductivity (W/m·K)
- 4.5
TIS300-45 — Product overview

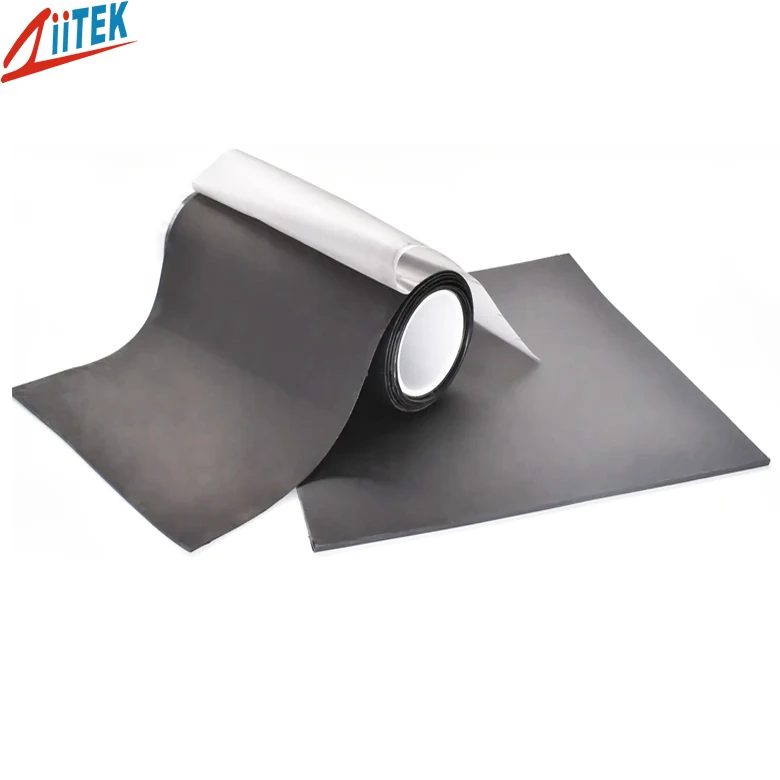

TIS®300-45 Series is a nickel/graphite-filled silicone sheet that is both thermally conductive (4.5 W/m·K) and electrically conductive. It is developed for thermal management and EMI suppression in 3C electronics, high-frequency signal devices, and precision electromagnetic components. The material combines strong thermal performance with low surface resistivity and a soft, elastic feel suitable for low-pressure assembly.
TIS300-45 — Features
High thermal conductivity (4.5 W/m·K)
Low surface resistivity (<1.0×10³ Ω·cm) for EMI shielding
Good corrosion resistance
High compressibility, soft yet elastic, suitable for low-stress applications
Where this grade is used
Typical application targets for this grade include LED lighting, Noise suppression for 3C products, Absorption of high-order harmonic interference in RAM, Wi-Fi signal improvement, Reducing error rate in signal-mode switching of mobile phones, Noise suppression of electromagnetic components in FPC, IC, laptops, and tablets.
Drives · IGBT · controllers · sensors
Power Tools & Control Systems
Industrial controls, motor drives, power-stage IGBTs, and rugged modules — thermal interfaces, sealing, and encapsulation built for serviceable assemblies and harsh environments.
EV packs · OBC · inverters · BMS
New energy
EV battery modules, traction inverters, on-board chargers, and renewable power conversion — thermal management for high-current cycling loads with HV isolation requirements.
TIS300-45 — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIS300-45_Data-sheet.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Color | Dark Gray | Visual |
| Construction | Graphite nickel-plated filled silicone rubber | — |
| Thickness Range | 0.020-0.200" (0.50-5.00 mm) | ASTM D374 |
| Hardness | 70 Shore OO | ASTM D2240 |
| Density (g/cm³) | 2.4 | ASTM D792 |
| Recommended Operating Temperature | -40 to 200 °C | — |
| Surface Resistivity (Ω·cm) | <1.0×10³ | ASTM D257 |
| Thermal Conductivity (W/m·K) | 4.5 | ASTM D5470 / ISO 22007 |
| Flame Rating | V-0 | UL94 (E331100) |
* Match values to the PDF revision cited on your purchase order.
Related thermally conductive insulators models
TIS300-45 — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIS300-45?
The customer workbook lists nominal through-plane conductivity as 4.5 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIS300-45 die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Thermally conductive insulators parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIS300-45?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIS300-45 RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
