TIS300 Thermally Conductive Insulator
- Density (g/cm³)
- 2.4
- Flame Rating
- V-0
- Hardness (Shore OO)
- 70
- Recommended Operating Tem…
- -40~200
- Surface Resistivity (Ω·cm)
- <1.0×10³
- Thermal Conductivity (W/m·K)
- 4.5
TIS300 — Product overview

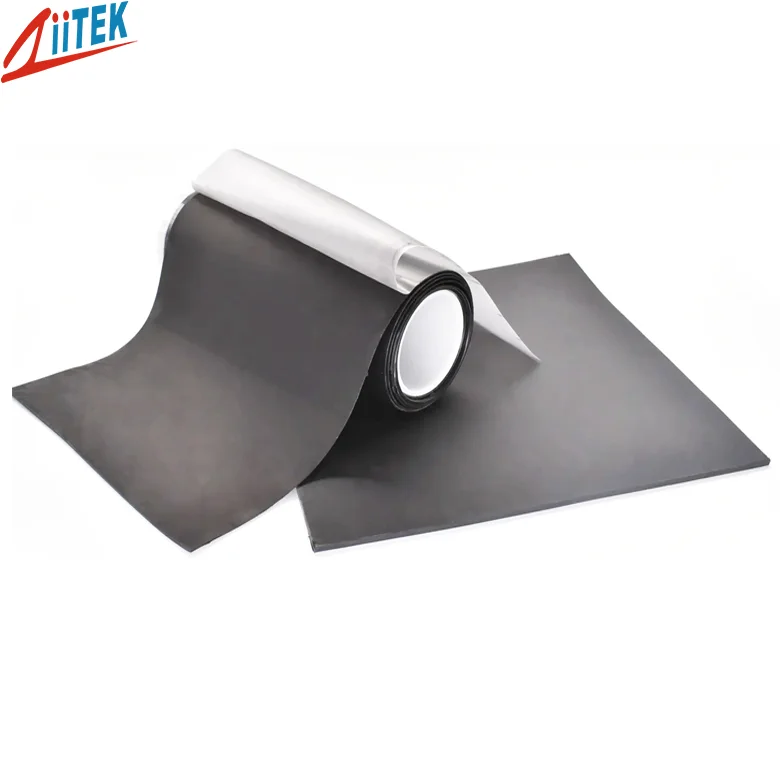

TIS®300-45 Series is a nickel/graphite-filled conductive and thermally conductive silicone sheet, specially developed for thermal management and electromagnetic interference suppression of 3C electronic products, high-frequency signal devices, and precision electromagnetic components. It features excellent thermal conductivity and surface resistivity, while providing high compressibility and soft elasticity, making it suitable for low-pressure installation environments. The TIS®300-45 series material is resistant to corrosion caused by leakage current and maintains its stability under harsh conditions.
TIS300 — Features
High thermal conductivity
Surface resistivity (Ohm·cm)
Good corrosion resistance
High compressibility, soft yet elastic, suitable for low-stress applications
Where this grade is used
Typical application targets for this grade include LED lighting, Noise suppression for 3C products, Absorption of high-order harmonic interference in RAM, Improvement of Wifi signal, Error rate in signal mode switching of mobile phones and other devices, Noise suppression of electromagnetic components in FPC, IC, and other electronic devices, such as laptops, tablets, etc..
Drives · IGBT · controllers · sensors
Power Tools & Control Systems
Industrial controls, motor drives, power-stage IGBTs, and rugged modules — thermal interfaces, sealing, and encapsulation built for serviceable assemblies and harsh environments.
EV packs · OBC · inverters · BMS
New energy
EV battery modules, traction inverters, on-board chargers, and renewable power conversion — thermal management for high-current cycling loads with HV isolation requirements.
TIS300 — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIS300-45_Data-sheet.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Color | Dark Gray | Visual |
| Construction | Graphite nickel-plated filled silicone rubber | — |
| Thickness Range | 0.020~0.200" (0.50~5.00 mm) | ASTM D374 |
| Hardness (Shore OO) | 70 | ASTM D2240 |
| Density (g/cm³) | 2.4 | ASTM D792 |
| Recommended Operating Temperature (°C) | -40~200 | — |
| Surface Resistivity (Ω·cm) | <1.0×10³ | ASTM D257 |
| Thermal Conductivity (W/m·K) | 4.5 | ASTM D5470 |
| Thermal Conductivity (W/m·K) | 4.5 | ISO22007 |
| Flame Rating | V-0 | UL94 (E331100) |
* Match values to the PDF revision cited on your purchase order.
Related thermally conductive insulators models
TIS300 — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIS300?
The customer workbook lists nominal through-plane conductivity as 4.5 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIS300 die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Thermally conductive insulators parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIS300?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIS300 RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
