TIG780-38D Thermal Grease
- Density (g/cm³)
- 2.36
- Thermal Conductivity (W/m·K)
- 3.8
- Viscosity (mPa·s)
- 220000
- Color
- White
- Construction
- Metal oxide filled silicone oil
- Thermal Impedance @10 psi…
- 0.045

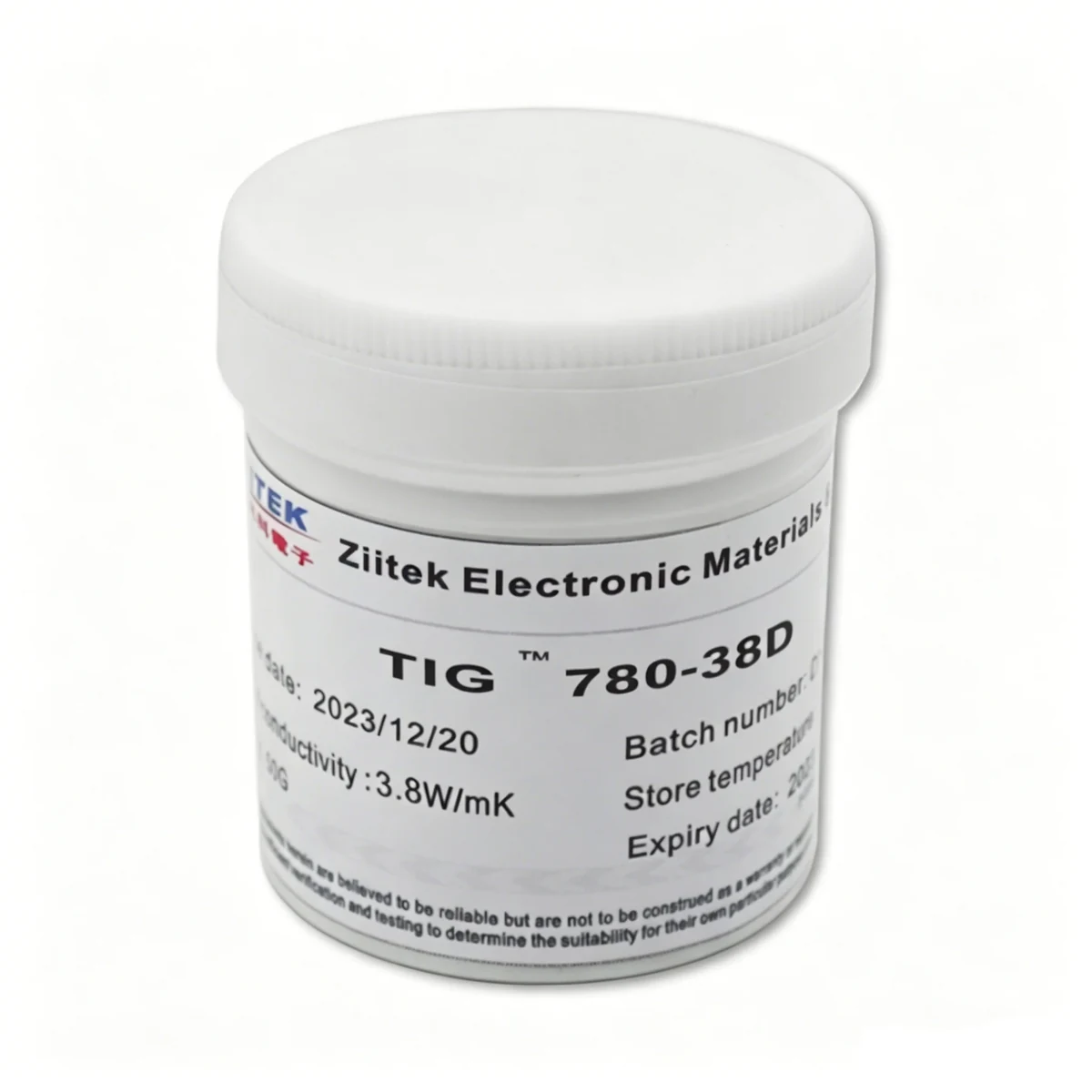

TIG780-38D — Product overview

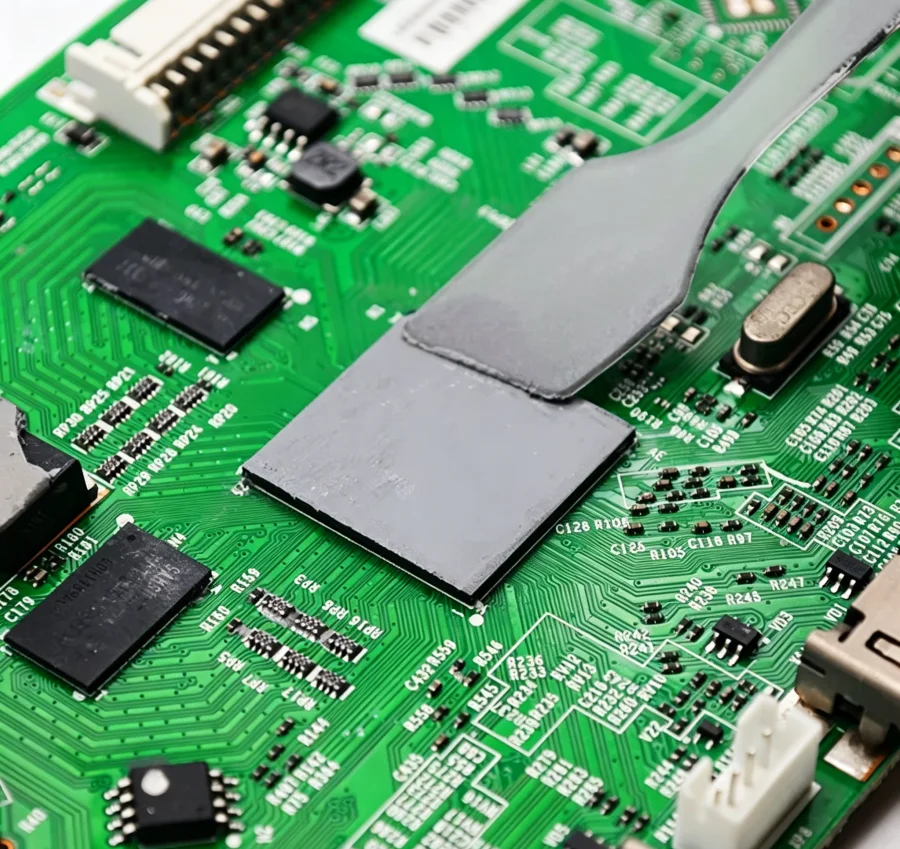

TIG™780-38D is an environmentally safe thixotropic thermal silicone grease that combines good stir-ability under shear with strong stay-in-place behavior at rest. When external force is applied the consistency of the grease decreases, providing good stirring ability; once the force is removed the grease becomes static, the consistency increases, and no flow or stringing occurs. The thixotropic rheology improves scratch and coating performance during application, eliminates hanging or sagging on vertical surfaces, supports finer dispensing operations, and delivers good storage stability together with reliable thermal conductivity. The D variant is supplied in a dispenser-friendly form for production-line use.
TIG780-38D — Features
Thixotropic, stay-in-place behavior with no flow or stringing
Easy to stir, scrape and dispense under shear
Good thermal conductivity
Non-toxic and environmentally safe
Excellent long-term storage stability
Thoroughly wets out contact surfaces to create low thermal resistance
Where this grade is used

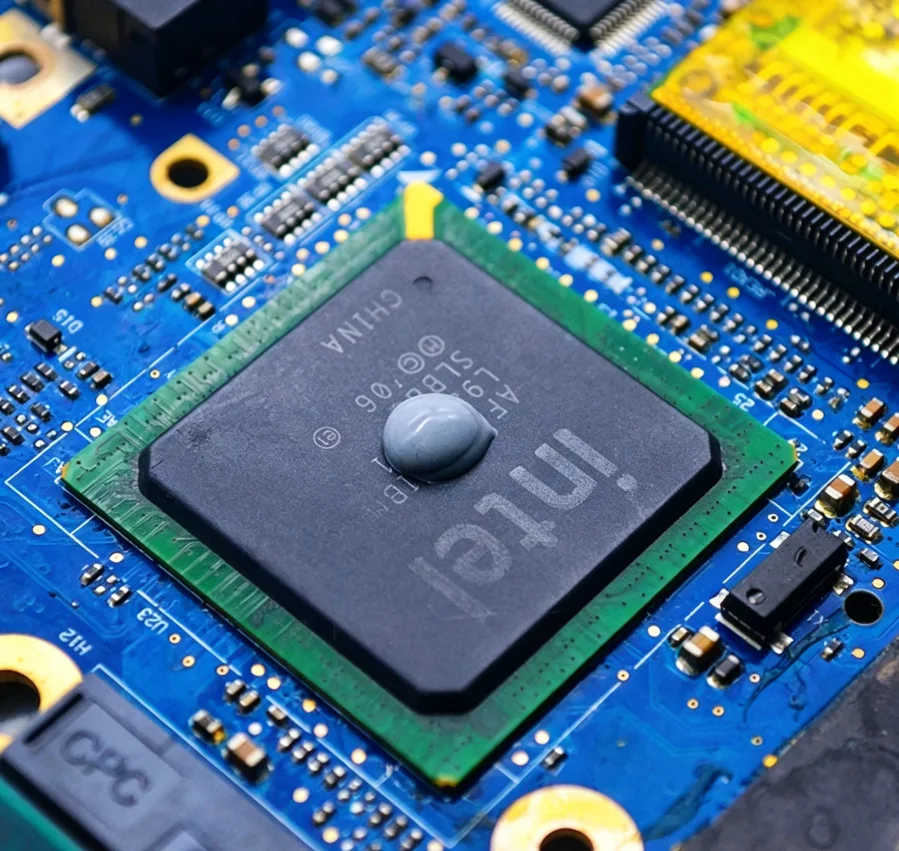

Typical application targets for this grade include Microprocessors, Chipsets, Graphic processing chips, Set-top boxes, LED lighting, Production lines requiring automated grease dispensing.
Servers · GPU · accelerators · DIMM
Data Center & AI Servers
High-flux silicon and dense PCBs — CPU/GPU bond-lines, VRM/DIMM/NIC interfaces, and accelerator cold-plate paths. Match grade against clamp force, TIM impedance, and rework cadence.
Drives · IGBT · controllers · sensors
Power Tools & Control Systems
Industrial controls, motor drives, power-stage IGBTs, and rugged modules — thermal interfaces, sealing, and encapsulation built for serviceable assemblies and harsh environments.
TIG780-38D — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIG780-38D-Series-Datasheet.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Color | White | Visual |
| Construction | Metal oxide filled silicone oil | — |
| Density (g/cm³) | 2.36 | ASTM D297 |
| Thermal Conductivity (W/m·K) | 3.8 | ASTM D5470 |
| Thermal Impedance @10 psi (°C·cm²/W) | 0.045 | ASTM D5470 |
| Thermal Impedance @50 psi (°C·cm²/W) | 0.033 | ASTM D5470 |
| Viscosity (mPa·s) | 220000 | GB/T 10247 |
* Match values to the PDF revision cited on your purchase order.
Related thermal grease models
TIG780-38D — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIG780-38D?
The customer workbook lists nominal through-plane conductivity as 3.8 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIG780-38D die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Thermal grease parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIG780-38D?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIG780-38D RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
