TIG780-38S Thermal Grease
- Density (g/cm³)
- 2.7 g/cm³
- Thermal Conductivity (W/m·K)
- 3.8
- Viscosity (mPa.s)
- 6000000 mPa.s
- Color
- Gray
- Construction
- Metal oxide filled Silicone Oil
- Thermal impedance @10psi
- 0.038°C*in²/W

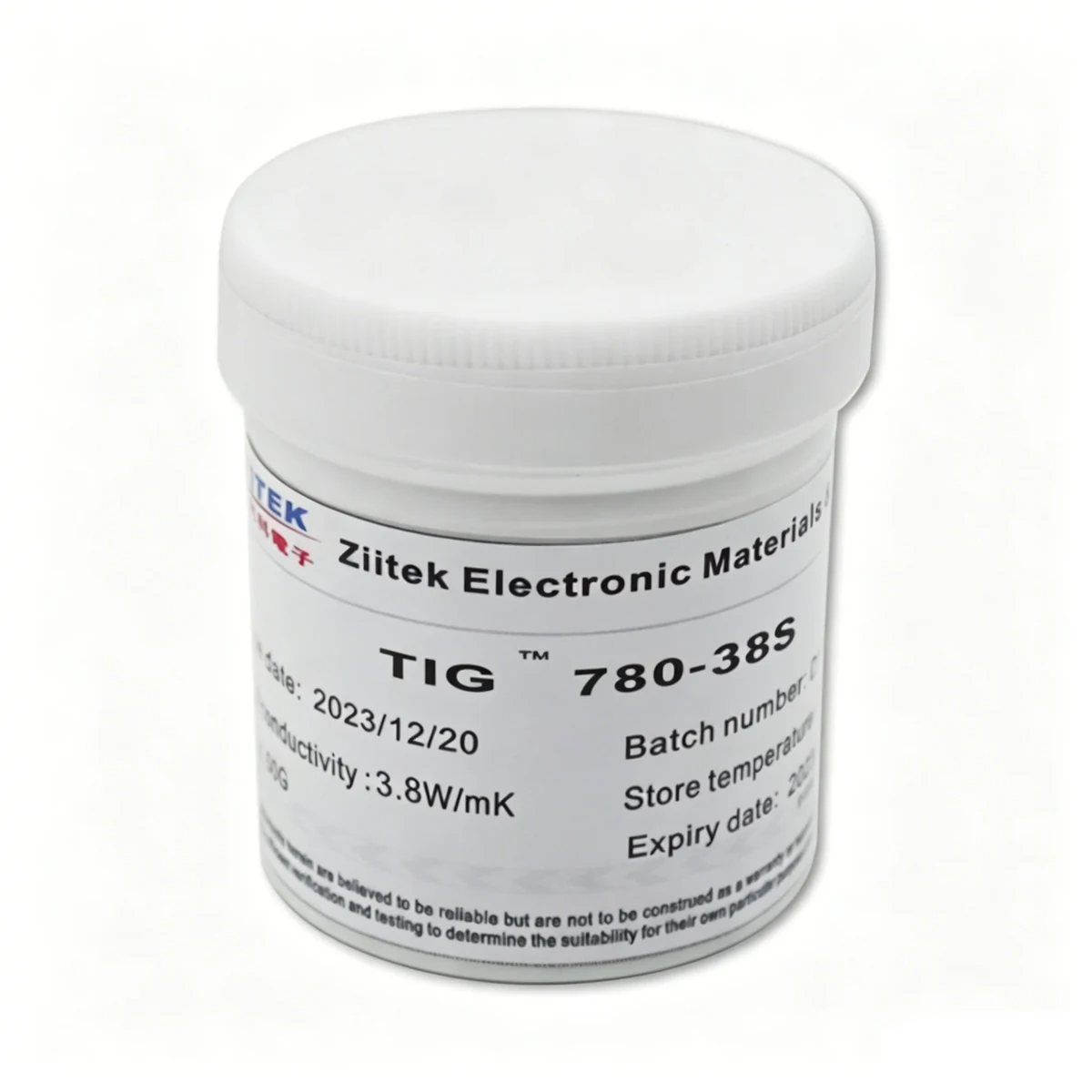

TIG780-38S — Product overview

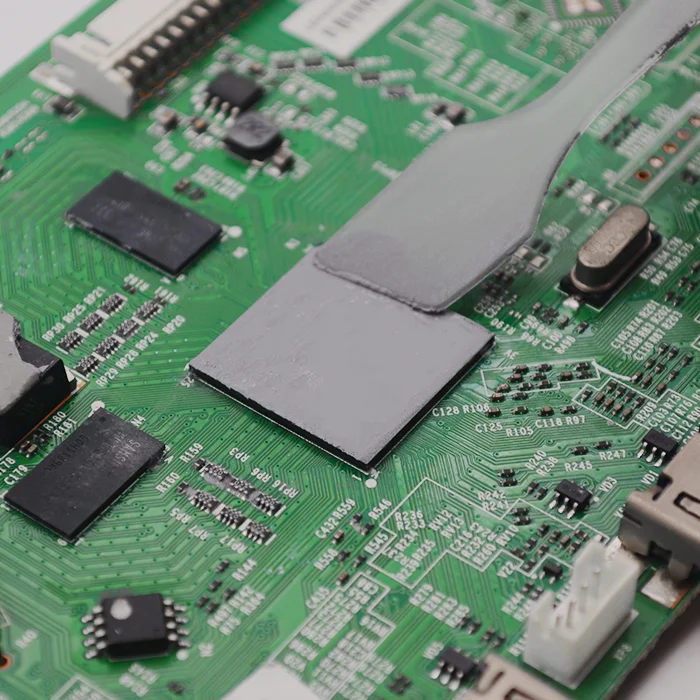

TIG™780-38S Is the use of environmentally safe thermal silicone grease, with good agitation and thixotropy. When the external force is applied, the consistency of the silicone grease decreases, showing a good stirring ability. However, after the removal of the external force, the silicon grease is in a static state, and the consistency of the silicone grease increases, showing good thixotropy and no flow drawing phenomenon. The thixotropic thermal conductive silicone grease has better scratch and coating property in the use process, will not appear the hanging phenomenon, is more conducive to the operation of the glue, has good fine and thermal conductivity, and has the advantages of good storage stability
TIG780-38S — Features
Good thermal conductivity
Non-toxic and environmentally safe
Excellent long term stability
Thoroughly wets out contact surfaces to create low thermal resistance
Where this grade is used

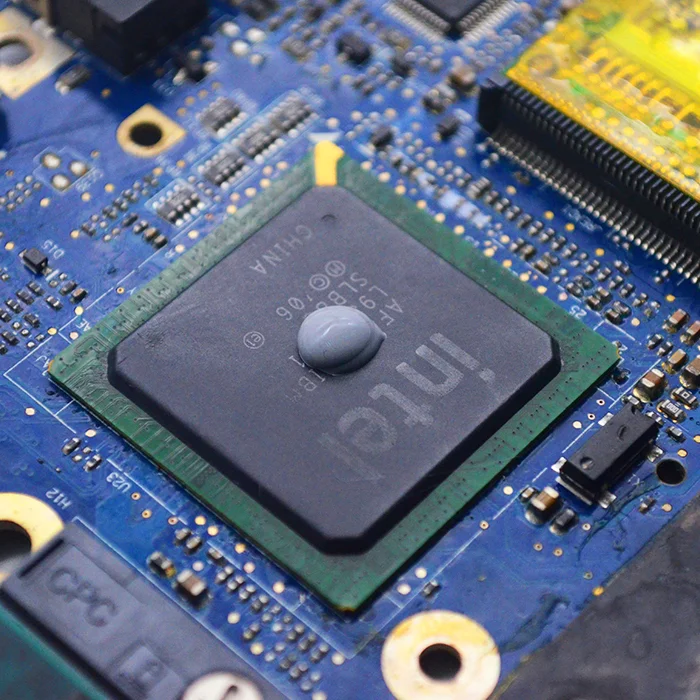

Typical application targets for this grade include Microprocessors, Chipsets, Graphic processing chips, Set Top Box.
TIG780-38S — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIG780-38S-Series-Datasheet.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Color | Gray | Visual |
| Construction | Metal oxide filled Silicone Oil | — |
| Density (g/cm³) | 2.7 g/cm³ | ASTM D297 |
| Thermal Conductivity (W/m·K) | 3.8 | ASTM D5470 |
| Thermal impedance @10psi | 0.038°C*in²/W | ASTM D5470 |
| Thermal impedance @50psi | 0.026 °C*in²/W | ASTM D5470 |
| Viscosity (mPa.s) | 6000000 mPa.s | GB/T 10247 |
* Match values to the PDF revision cited on your purchase order.
Related thermal grease models
TIG780-38S — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIG780-38S?
The customer workbook lists nominal through-plane conductivity as 3.8 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIG780-38S die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Thermal grease parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIG780-38S?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIG780-38S RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
