TIG780-40 Thermal Grease
- Bond line Thickness (mm)
- 0.019 mm
- Specific Gravity
- 2.90
- Thermal Conductivity (W/m·K)
- 4.00
- Viscosity (mPa.s)
- 35000
- Color
- White
- Construction
- Metal oxide filled /silicone oil

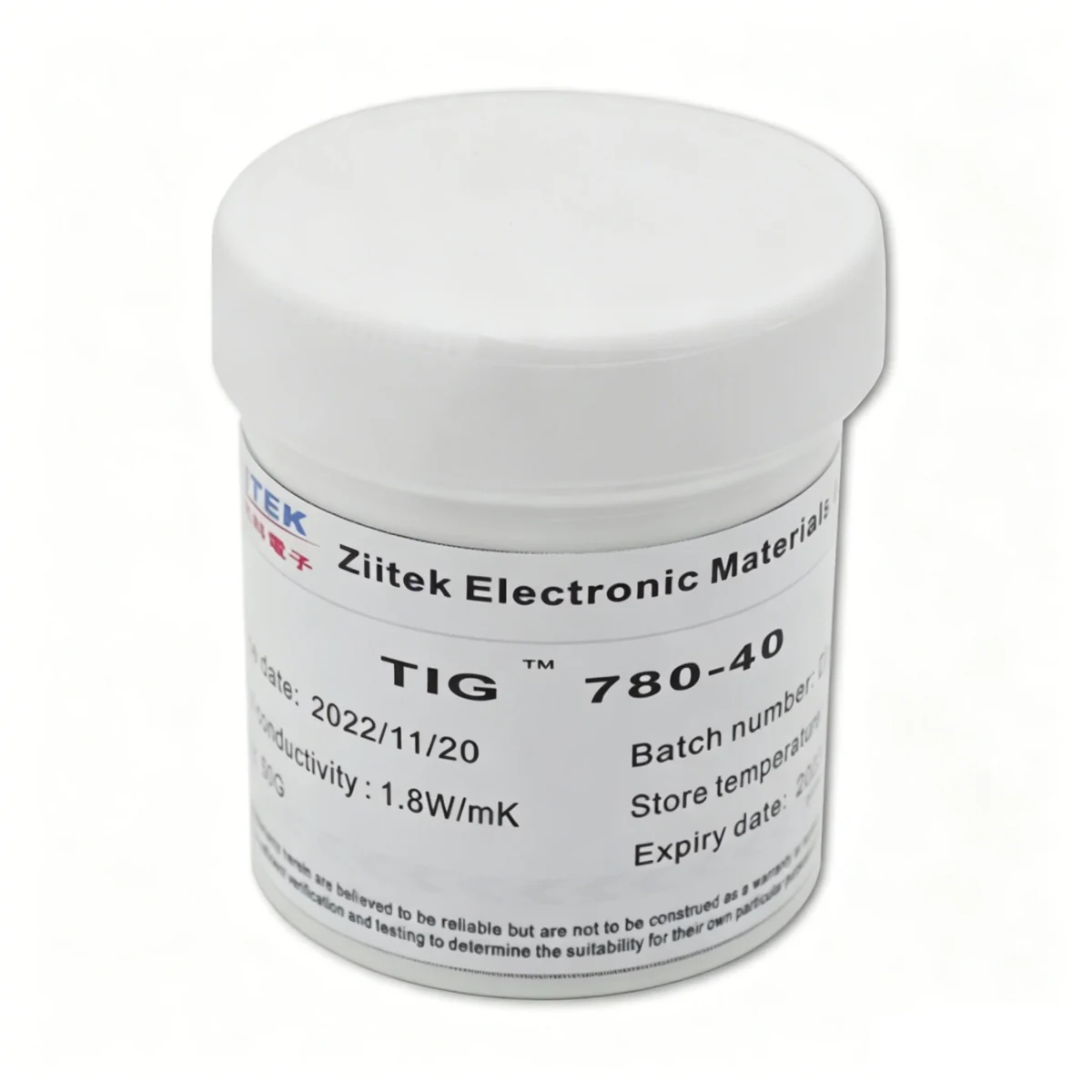

TIG780-40 — Product overview
TIG™780-40 is environmentally safe silicone-based thermal grease designed to solve overheating and reliability issues. TIG™780-40 is a heat-conducting product in the shape of paste. They serve to moisten the contact surface sufficiently so as to form an interface of extremely low thermal impedance. Consequently, the heat dissipation efficiency is far superior to that offered by others.
TIG780-40 — Features
Low thermal impedance 0.028℃*in²/W
Non-toxic & environmentally safe
Excellent long term stability
Thoroughly wets out contact surfaces to create. low thermal resistance
Where this grade is used
Typical application targets for this grade include Microprocessors, Chipsets, Graphic processing chips, Set Top Box.
TIG780-40 — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIG780-40-TDS_EN_REV01.1.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Color | White | Visual |
| Construction | Metal oxide filled /silicone oil | Ziitek Test Method |
| Specific Gravity | 2.90 | ASTM D792 |
| Thermal Conductivity (W/m·K) | 4.00 | ASTM D5470 |
| Bond line Thickness (mm) | 0.019 | ASTM D374 |
| Thermal Impedance (°C·in²/W) @20 psi | 0.028 | ASTM D5470 |
| Recommended operating temp (°C) | – 45 ~ 200 | Ziitek Test Method |
| Viscosity (mPa.s) | 35000 | GB/T 10247 |
* Match values to the PDF revision cited on your purchase order.
Related thermal grease models
TIG780-40 — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIG780-40?
The customer workbook lists nominal through-plane conductivity as 4 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIG780-40 die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Thermal grease parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIG780-40?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIG780-40 RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
