TIS100-10-1150-A1 Thermally Conductive Insulator
- Dielectric Breakdown Voltage
- >5000 VAC/mm
- Dielectric Constant
- 5.5
- Flame Rating
- UL 94V0
- Hardness
- 50 Shore A
- Specific Gravity (g/cm³)
- 1.7
- Thermal Conductivity (W/m·K)
- >0.6
TIS100-10-1150-A1 — Product overview

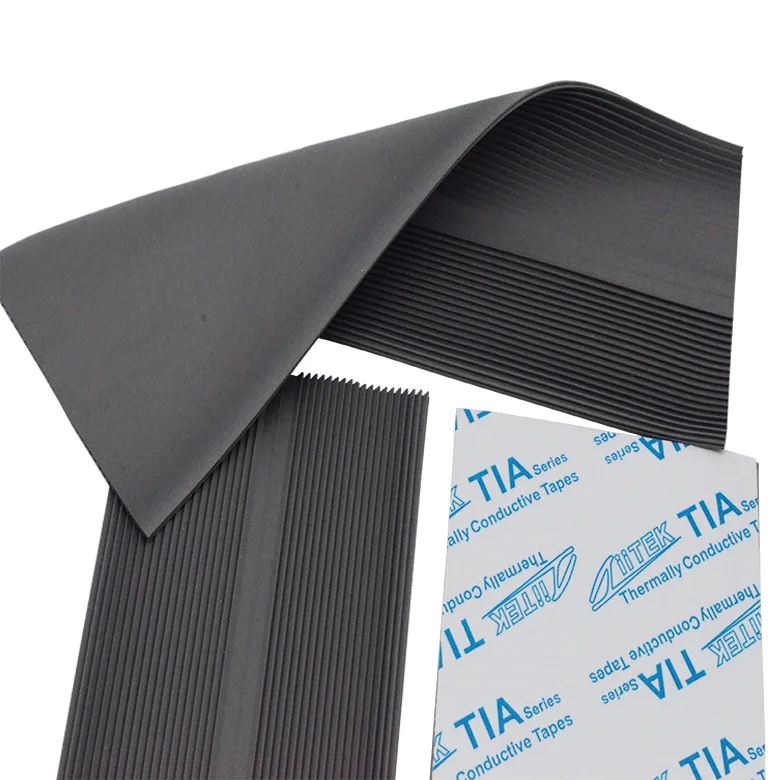

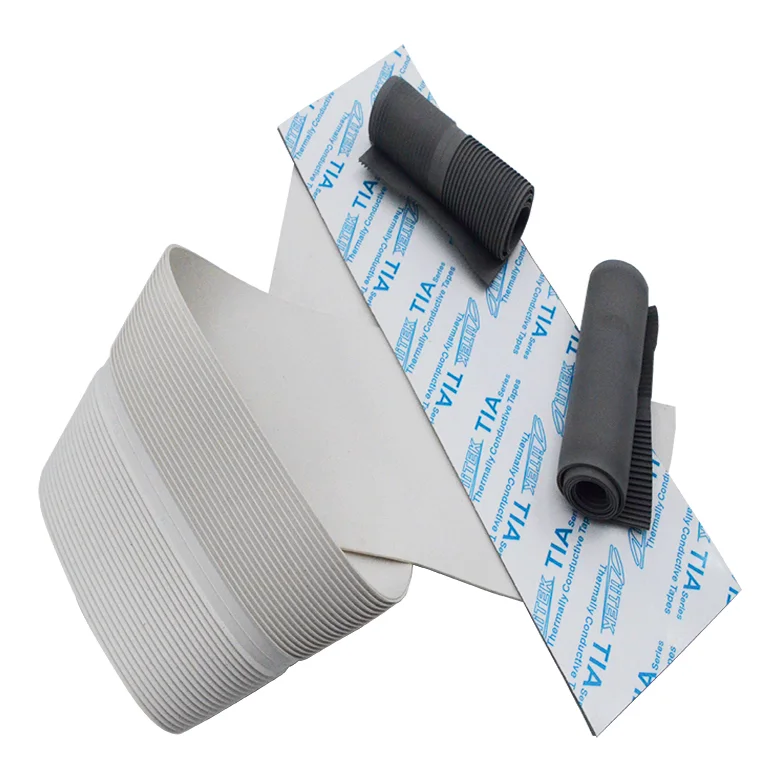

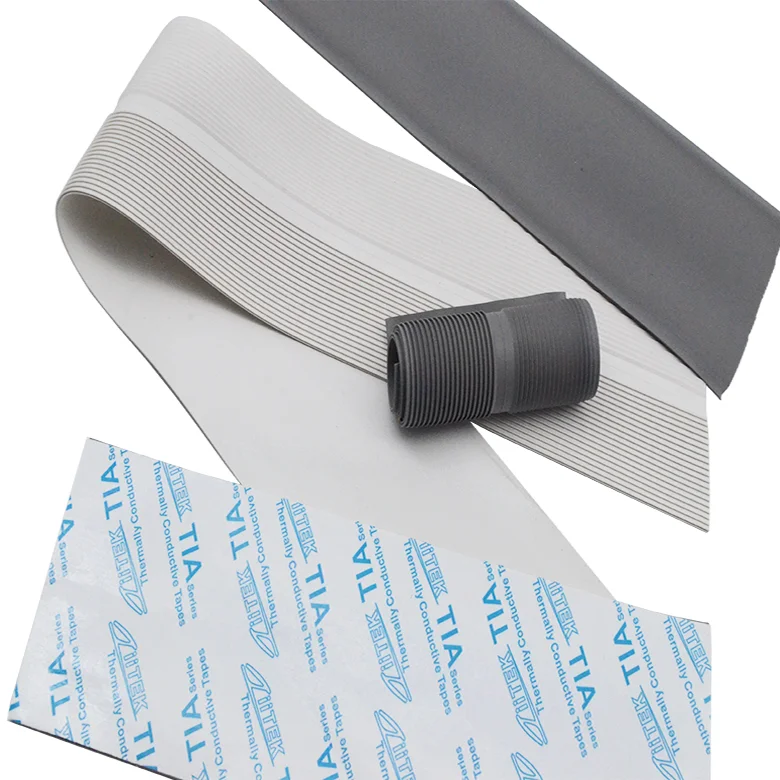

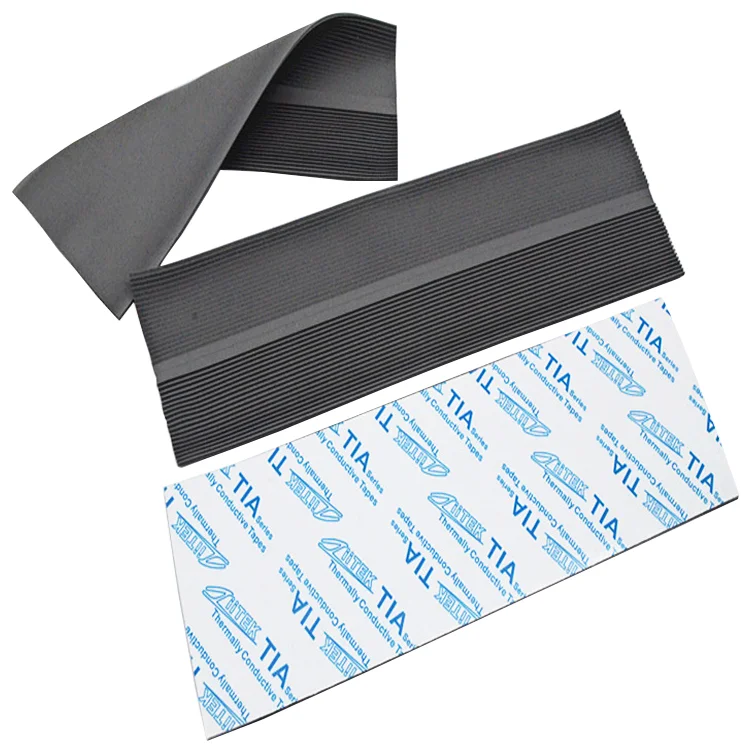

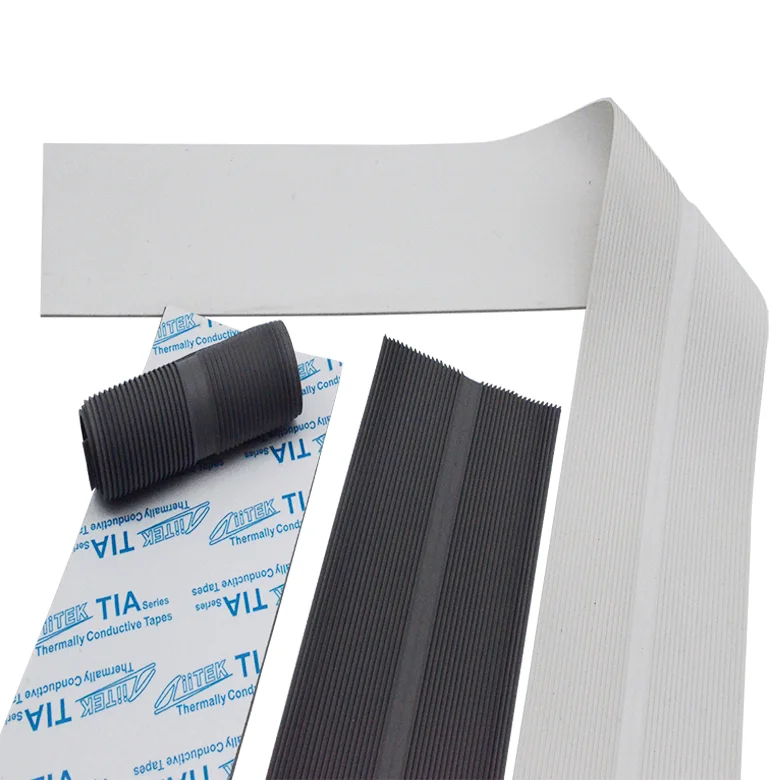

The TIS™100-10-1150-A1 Series thermal conductive silicone extrusion insulation material is efficient insulation products, It also has thermal conductivity. It is used to add insulating silicone base material to the thermal conductivity material to achieve the effect of insulation and thermal conduction
TIS100-10-1150-A1 — Features
Good thermal conductive
High dielectric strength
Low thermal resistance with high voltage isolation
Resistant to tears and punctures
Where this grade is used
Typical application targets for this grade include Power conversion equipment, Power semiconductors: T0 packages, MOSFETs & IGBTs, Audio and Video components, Automotive control units, Motor controllers, General high pressure interface.
TIS100-10-1150-A1 — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIS100-10-1150-A1-Series-Datasheet.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | — |
| Molding Method | Extrusion / Hot Pressing | ASTM D751 |
| Specific Gravity (g/cm³) | 1.7 | ASTM D297 |
| Heat Capacity | 0.45 MJ/m³·K | ISO22007-2 |
| Hardness | 50 Shore A | ASTM 2240 |
| Tensile Strength | 450 psi / mm | ASTM D412 |
| Continuous Use Temp | (-58 to 356℉) / (-50 to 180°C) | — |
| Dielectric Breakdown Voltage | >5000 VAC/mm | ASTM D149 |
| Dielectric Constant | 5.5 | ASTM D150 |
| Volume Resistivity (Ω·cm) | 5.0×10¹³ | ASTM D257 |
| Flame Rating | UL 94V0 | E331100 |
| Thermal Conductivity (W/m·K) | >0.6 | ASTM D5470 |
* Match values to the PDF revision cited on your purchase order.
Related thermally conductive insulators models
TIS100-10-1150-A1 — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIS100-10-1150-A1?
The customer workbook lists nominal through-plane conductivity as 0.6 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIS100-10-1150-A1 die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Thermally conductive insulators parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIS100-10-1150-A1?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIS100-10-1150-A1 RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
