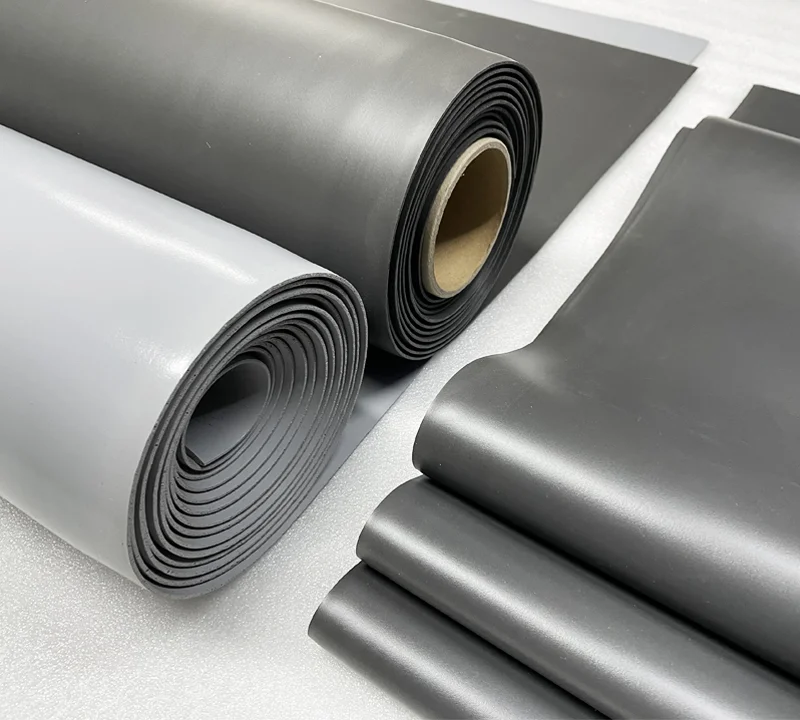

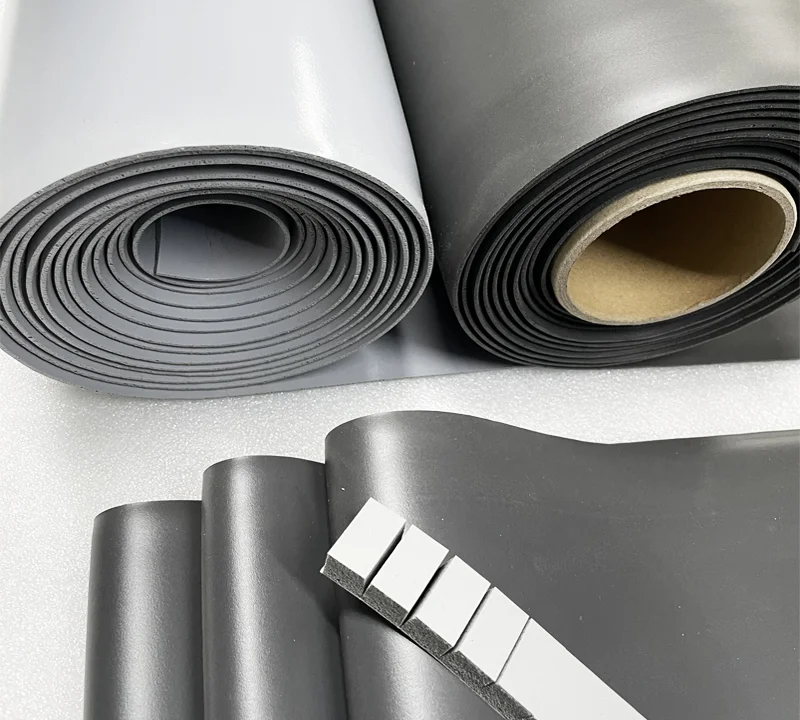

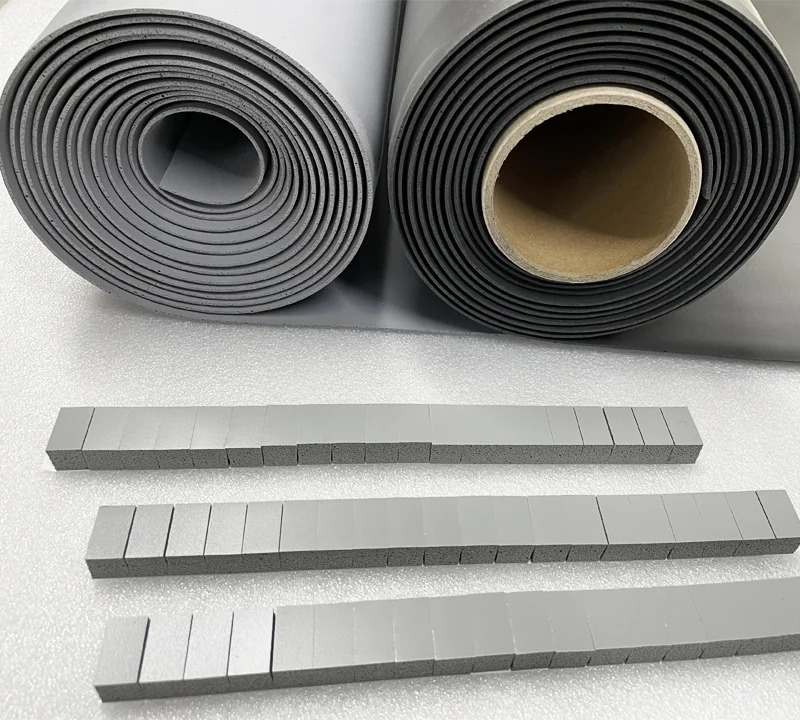

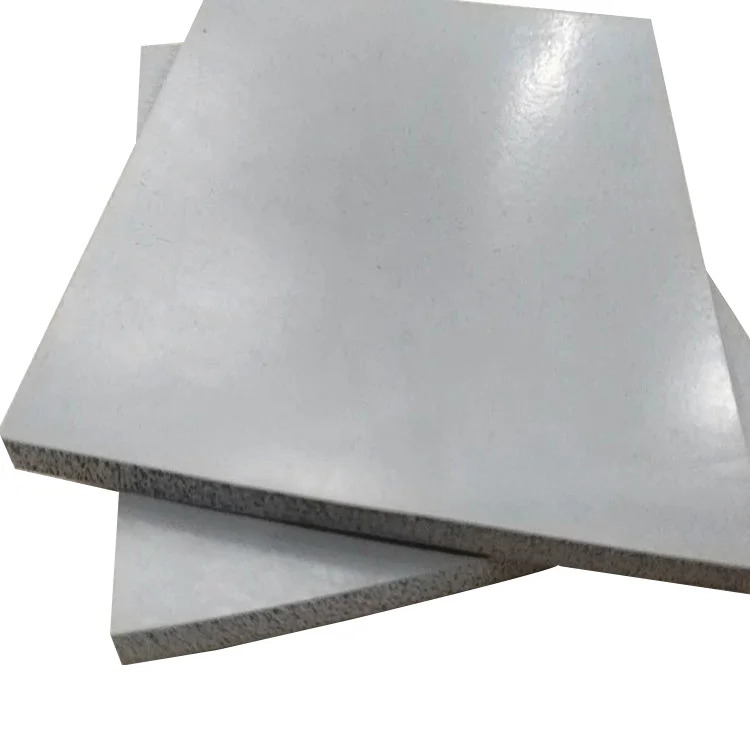

Z-FOAM800-10SC-NS3 Silicone Foam Gasket
- Density (g/cm³)
- 0.37
- Temperature Range
- -55~200 °C
- Thermal Conductivity (W/m·K)
- 0.08
- Thickness
- 1.0~12.0 mm
- Air Tightness
- >20 kPa
- Color
- Grey
Z-FOAM800-10SC-NS3 — Product overview
Z-Foam®800-10SC-NS3 series products feature a unique cell structure and high-quality raw materials, ensuring rapid rebound after compression, perfect filling of gaps, and the formation of a durable and stable sealing layer. Whether it is dealing with extreme temperature variations or long-term usage pressure, it can maintain stable performance and excellent sealing effect, effectively improving the operational efficiency of equipment, reducing energy consumption, and isolating noise.
Z-FOAM800-10SC-NS3 — Features
High temperature resistant - up to 200℃
Good sealing performance, meeting IPX7 standard
Ultraviolet rays and ozone resistance
Complies with UL157
Good buffering and high compression ratio
Compliant with UL94 V-0
Where this grade is used
Typical application targets for this grade include Designed specifically to handle the extreme conditions of liquid material sealing, it boasts outstanding airtightness and extremely strong sealing capabilities, forming a reliable and durable sealing barrier, Ensure that leakage and oxidation are prevented during precision casting or processing, ensuring production safety and improving product quality.
EV packs · OBC · inverters · BMS
New energy
EV battery modules, traction inverters, on-board chargers, and renewable power conversion — thermal management for high-current cycling loads with HV isolation requirements.
Drives · IGBT · controllers · sensors
Power Tools & Control Systems
Industrial controls, motor drives, power-stage IGBTs, and rugged modules — thermal interfaces, sealing, and encapsulation built for serviceable assemblies and harsh environments.
Z-FOAM800-10SC-NS3 — datasheet specifications
Values below are transcribed from the official datasheet (PDF: Z-Foam800-10SC-NS3_TDS.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Color | Grey | Visual |
| Structure & Components | Silicone rubber | — |
| Thickness | 1.0~12.0 mm | ASTM D374 |
| Density (g/cm³) | 0.37 | ASTM D1056 |
| Air Tightness | >20 kPa | Air tightness tester |
| Thermal Conductivity (W/m·K) | 0.08 | ASTM D5470 |
| Temperature Range | -55~200 °C | — |
* Match values to the PDF revision cited on your purchase order.
Related silicone foam gaskets models
Z-FOAM800-10SC-NS3 — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is specified for Z-FOAM800-10SC-NS3?
Typical tables list mechanical and safety-related properties — for example colour, hardness (Shore C), density, tensile strength, compression ratio at stated pressure, dielectric constant @ 1 MHz, temperature range, and UL94 flame rating. Values are grade-specific; use the documentation linked on this page as the contractual reference.

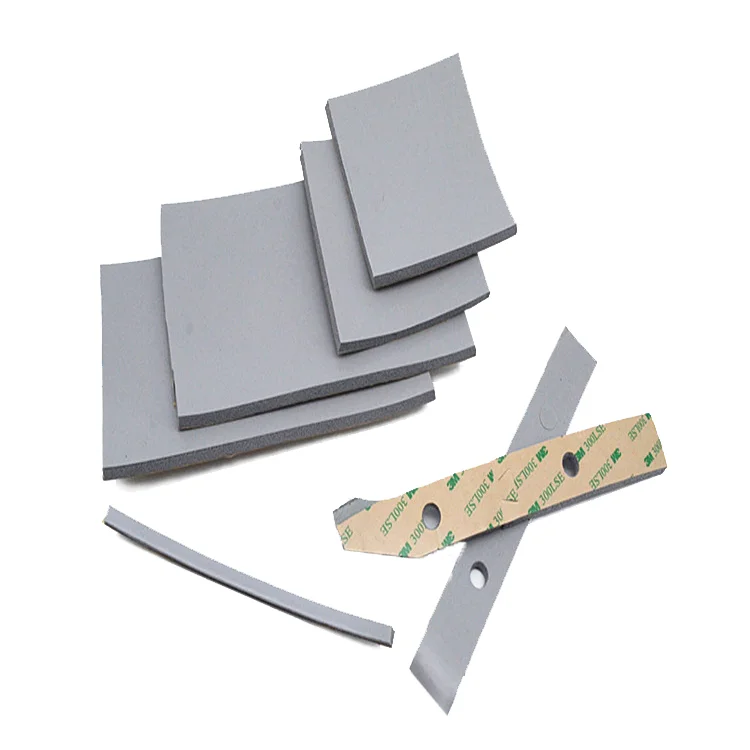

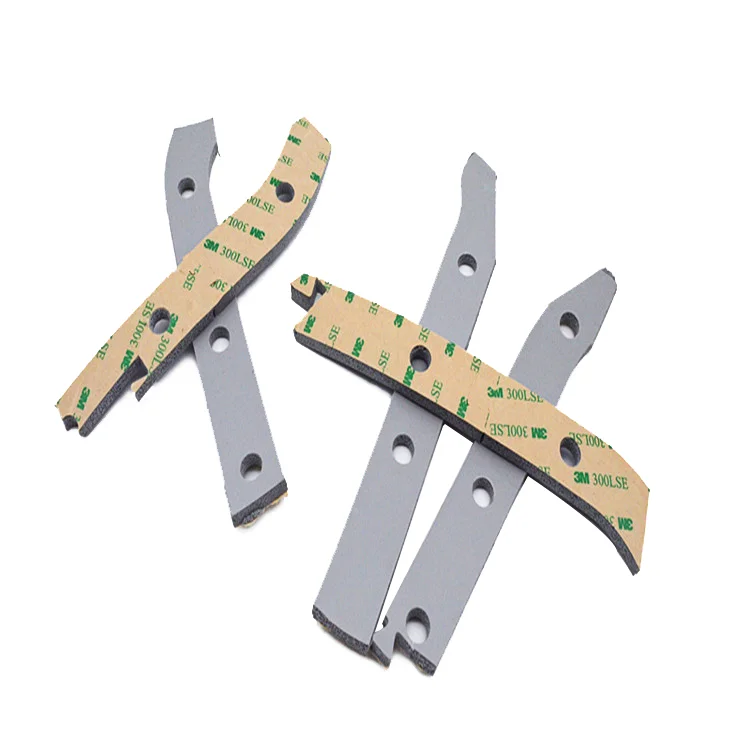

Can Ziitek supply Z-FOAM800-10SC-NS3 die-cut or with adhesive backing?
Yes — send DXF/DWG outlines, target thickness, and whether you need PSA. Silicone foam gaskets materials are converted routinely; tolerances depend on foam grade and geometry.
Where is the documentation for Z-FOAM800-10SC-NS3?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is Z-FOAM800-10SC-NS3 suitable for flame-retarded enclosures?
UL94 class and file references are stated per grade in the technical documentation (e.g. V-0 tiers). Confirm the rating against your enclosure standard and system-level tests.
