TIA800 Thermal Adhesive Tape
- Recommended Operating Tem…
- -40~125
- Thermal Conductivity (W/m·K)
- 0.8
- Thickness
- 0.05~0.38 mm
- Voltage Breakdown (V)
- ≥600 / ≥1200 / ≥1800 / ≥2500 / ≥2700 / …
- 180° Peel Adhesion (gf/in…
- ≥1400
- 180° Peel Adhesion (gf/in…
- ≥1200
TIA800 — Product overview

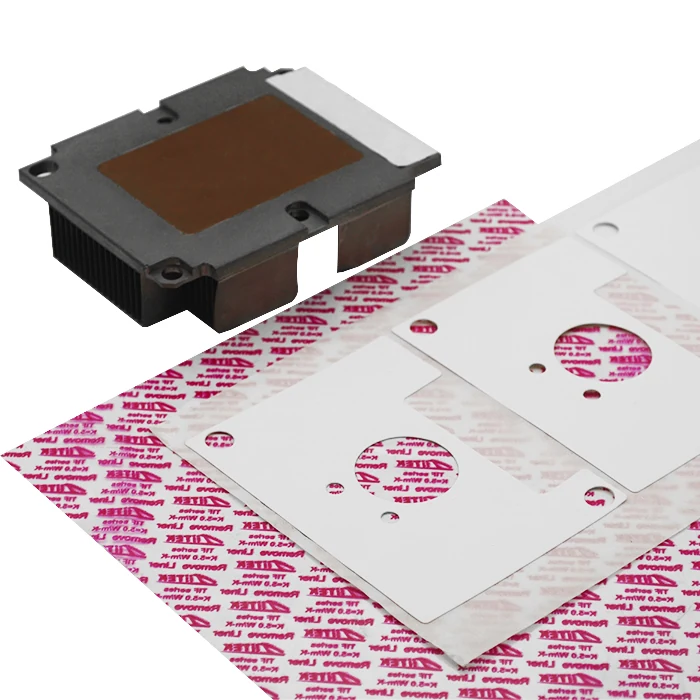

TIA®800 Series is filled with good thermal conductivity ceramic particles, featuring excellent thermal conductivity, strong adhesion and electrical insulation. It is suitable for bonding and fixing electronic components to heat sinks or housings, such as LED modules, power devices, communication equipment and other scenarios. The product is solvent-free, pollution-free, easy to construct, and can replace the traditional combination scheme of screw fixation and thermal conductive grease.
TIA800 — Features
High bonding strength
Good thermal conductivity efficiency

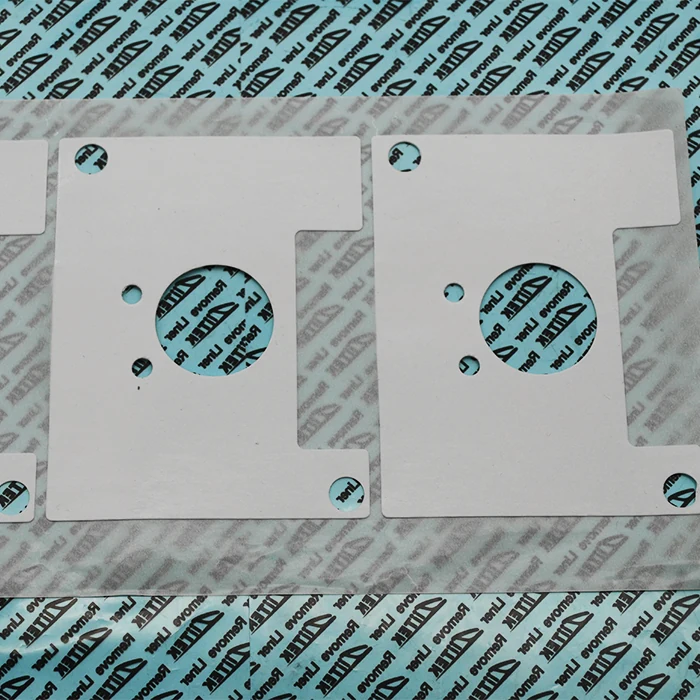

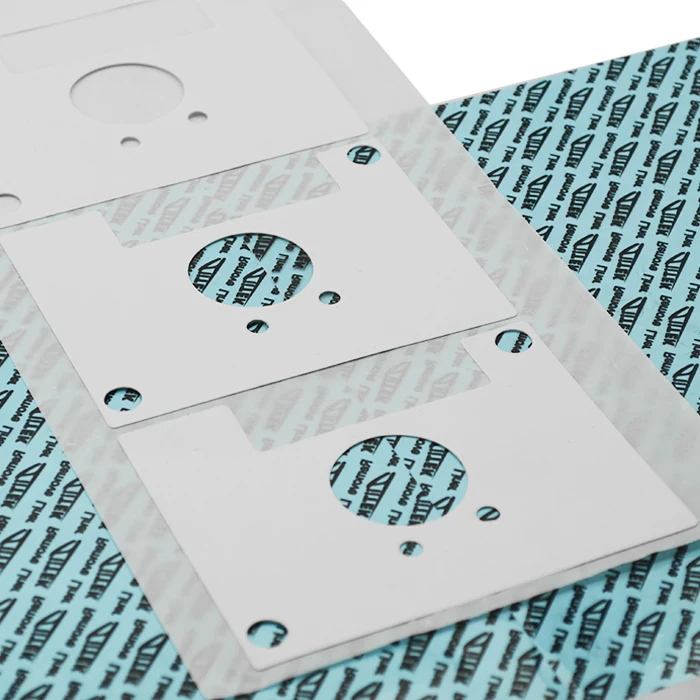

Easy to apply and can be die-cut into custom sizes
Stable operation over a wide temperature range
Where this grade is used
Typical application targets for this grade include LED module, Power device, Consumer electronics, Communication equipment.
TIA800 — datasheet specifications
Values below are transcribed from the official datasheet (PDF: tia800.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Product Name | TIA®802 / TIA®804 / TIA®806 / TIA®808 / TIA®810 / TIA®812 / TIA®815 | — |
| Color | White | Visual |
| Adhesive Type | Acrylic adhesive | — |
| Thickness | 0.002" (0.05 mm) / 0.004" (0.10 mm) / 0.006" (0.15 mm) / 0.008" (0.20 mm) / 0.010" (0.25 mm) / 0.012" (0.30 mm) / 0.015" (0.38 mm) | ASTM D374 |
| Voltage Breakdown (V) | ≥600 / ≥1200 / ≥1800 / ≥2500 / ≥2700 / ≥3000 / ≥4000 | ASTM D149 |
| Recommended Operating Temperature (°C) | -40~125 | — |
| Thermal Conductivity (W/m·K) | 0.8 | ASTM D5470 |
| 180° Peel Adhesion (gf/inch) Steel, Immediate | ≥1200 | ASTM D3330 |
| 180° Peel Adhesion (gf/inch) Steel, 24hrs | ≥1400 | ASTM D3330 |
| Holding Power (H/inch) @25°C | ≥48 | ASTM D3654 |
| Holding Power (H/inch) @80°C | ≥48 | ASTM D3654 |
* Match values to the PDF revision cited on your purchase order.
TIA800 — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIA800?
The customer workbook lists nominal through-plane conductivity as 0.8 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIA800 die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Thermal tapes parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIA800?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIA800 RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
