TIF700PES Silicone Thermal Pad
- Breakdown Voltage (V/mm)
- ≥5500
- Density (g/cm³)
- 3.4
- Dielectric Constant @1MHz
- 7.6
- Flame Rating
- V-0
- Hardness (Shore OO)
- 10~55
- Recommended Operating Tem…
- -40~200
TIF700PES — Product overview

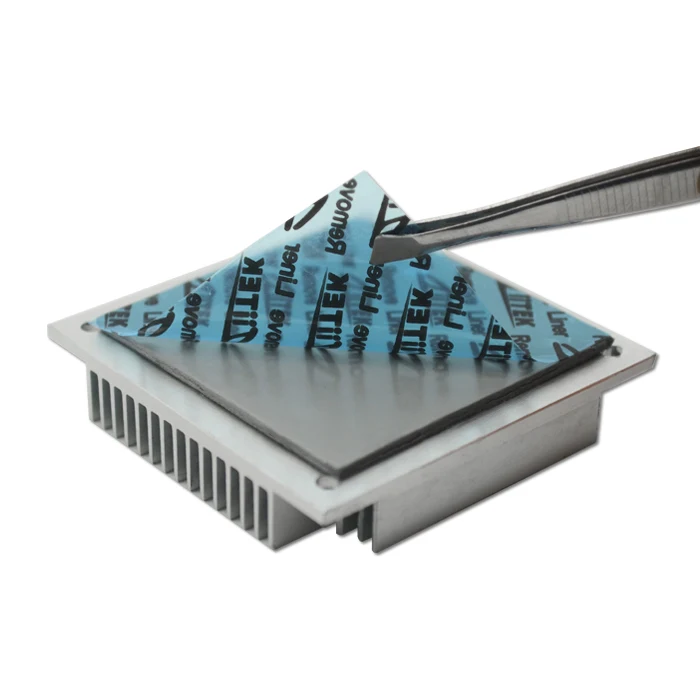

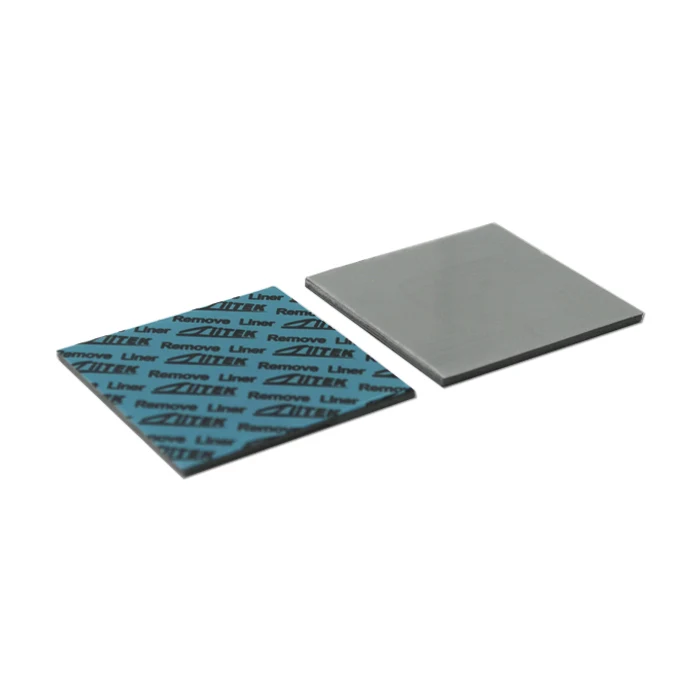

TIF®700PES Series is a thermal pad specifically designed to tackle the high level cooling challenges and environments sensitive to extreme mechanical stress. It combines excellent thermal conductivity with a near-fluid ultimate softness, ensuring perfect filling of the contact interface even under ultra-low mounting pressure, completely eliminating air thermal resistance, and providing superior thermal solutions and physical protection for the most precise and highest heat flux electronic components. Catalogue note: TIF700PES_Data-Sheet.pdf
TIF700PES — Features
Excellent thermal conductivity
Extremely soft, low compression stress effectively protects sensitive components
Self-adhesive without the need for additional surface adhesives
High insulation performance
Where this grade is used
Typical application targets for this grade include AI Servers, Semiconductor Packaging, Low-Altitude Aircraft, Optical Communication Products, 5G Base Stations. Workbook note: TIF700PES_Data-Sheet.pdf
Servers · GPU · accelerators · DIMM
Data Center & AI Servers
High-flux silicon and dense PCBs — CPU/GPU bond-lines, VRM/DIMM/NIC interfaces, and accelerator cold-plate paths. Match grade against clamp force, TIM impedance, and rework cadence.
EV packs · OBC · inverters · BMS
New energy
EV battery modules, traction inverters, on-board chargers, and renewable power conversion — thermal management for high-current cycling loads with HV isolation requirements.
TIF700PES — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIF700PES_Data-Sheet.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Color | Gray | Visual |
| Construction | Ceramic filled silicone elastomer | — |
| Thickness Range | 0.020"~0.030" (0.50~0.75 mm) / 0.040"~0.200" (1.00~5.00 mm) | ASTM D374 |
| Hardness (Shore OO) | 55 / 10 | ASTM D2240 |
| Density (g/cm³) | 3.4 | ASTM D792 |
| Recommended Operating Temperature (°C) | -40~200 | — |
| Breakdown Voltage (V/mm) | ≥5500 | ASTM D149 |
| Dielectric Constant @1MHz | 7.6 | ASTM D150 |
| Volume Resistivity (Ω·cm) | >1.0×10¹² | ASTM D257 |
| Thermal Conductivity (W/m·K) | 7.5 | ASTM D5470 / ISO22007 |
| Flame Rating | V-0 | UL94 (E331100) |
* Match values to the PDF revision cited on your purchase order.
Related silicone thermal pads models
| Model | Series | λ (W/m·K) | Hardness | View |
|---|---|---|---|---|
| TIF100-10-02S | TIF100 | 1 W/m·K | 45 | Details |
| TIF100-12-66U | TIF100 | 1.2 W/m·K | 27~65 | Details |
| TIF100-15-11U | TIF100 | 1.5 W/m·K | 27~65 | Details |
| TIF100-18-02S | TIF100 | 1.8 W/m·K | 45~65 | Details |
| TIF500-18-11US | TIF500 | 1.8 W/m·K | 20~65 | Details |
| TIF100-20-05E | TIF100 | 2 W/m·K | 35~65 | Details |
| TIF200-20-14S | TIF200 | 2 W/m·K | 45±5 | Details |
| TIF400 | TIF400 | 2 W/m·K | 45 | Details |
TIF700PES — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIF700PES?
The customer workbook lists nominal through-plane conductivity as 7.5 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIF700PES die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Silicone thermal pads parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIF700PES?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIF700PES RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
