TIS100-16-01 Thermally Conductive Insulator
- Breakdown Voltage (by thi…
- 3000 / 4000 / 5000 V/mm
- Density (g/cm³)
- 2.3
- Dielectric Constant @1MHz
- 5.5
- Flame Rating
- V-0
- Recommended Operating Tem…
- -60 to 180 °C
- Thermal Conductivity (W/m·K)
- 1.6
TIS100-16-01 — Product overview

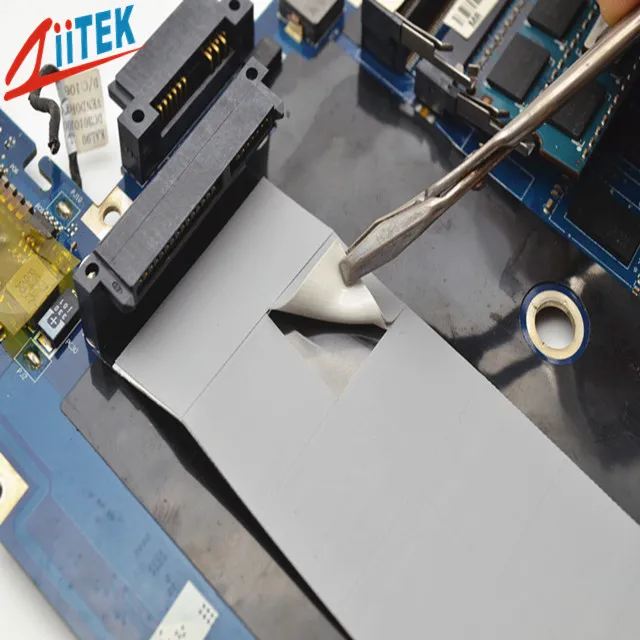

TIS®100-16-01 Series products are highly efficient thermally conductive insulators built on a fiberglass-reinforced silicone substrate. The insulating silicone base is loaded with ceramic filler, delivering 1.6 W/m·K thermal conductivity together with strong dielectric isolation for power-supply, motor-controller, and power-semiconductor assemblies.
TIS100-16-01 — Features
Soft surface with good thermal conductivity
Excellent dielectric strength
High voltage insulation, low thermal resistance
Tear-resistant and puncture-resistant
Where this grade is used
Typical application targets for this grade include Car battery and power supply, Power semiconductors, Audio and video components, Motor controllers.
Drives · IGBT · controllers · sensors
Power Tools & Control Systems
Industrial controls, motor drives, power-stage IGBTs, and rugged modules — thermal interfaces, sealing, and encapsulation built for serviceable assemblies and harsh environments.
EV packs · OBC · inverters · BMS
New energy
EV battery modules, traction inverters, on-board chargers, and renewable power conversion — thermal management for high-current cycling loads with HV isolation requirements.
TIS100-16-01 — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIS100-16-01-TDS-EN.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Color | Gray | Visual |
| Construction | Ceramic filled silicone elastomer / Fiberglass | — |
| Thickness Range | 0.006" (0.15 mm) / 0.008-0.009" (0.20-0.23 mm) / 0.010-0.018" (0.25-0.45 mm) | ASTM D374 |
| Density (g/cm³) | 2.3 | ASTM D297 |
| Tensile Strength | 30.0 MPa | ASTM D412 |
| Recommended Operating Temperature | -60 to 180 °C | — |
| Breakdown Voltage (by thickness) | 3000 / 4000 / 5000 V/mm | ASTM D149 |
| Dielectric Constant @1MHz | 5.5 | ASTM D150 |
| Volume Resistivity (Ω·cm) | 4×10¹² | ASTM D257 |
| Thermal Conductivity (W/m·K) | 1.6 | ASTM D5470 / ISO 22007-2.2 |
| Flame Rating | V-0 | UL94 (E331100) |
* Match values to the PDF revision cited on your purchase order.
Related thermally conductive insulators models
TIS100-16-01 — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIS100-16-01?
The customer workbook lists nominal through-plane conductivity as 1.6 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIS100-16-01 die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Thermally conductive insulators parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIS100-16-01?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIS100-16-01 RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
