TIS100-16-02 Thermally Conductive Insulator
- Dielectric Breakdown Voltage
- 5000 VAC
- Dielectric Constant @1000Hz
- 5.5
- Flame Rating
- 94 V-0
- Hardness
- 89 Shore A
- Specific Gravity (g/cm³)
- 2.3
- Thermal Conductivity (W/m·K)
- 1.6
TIS100-16-02 — Product overview

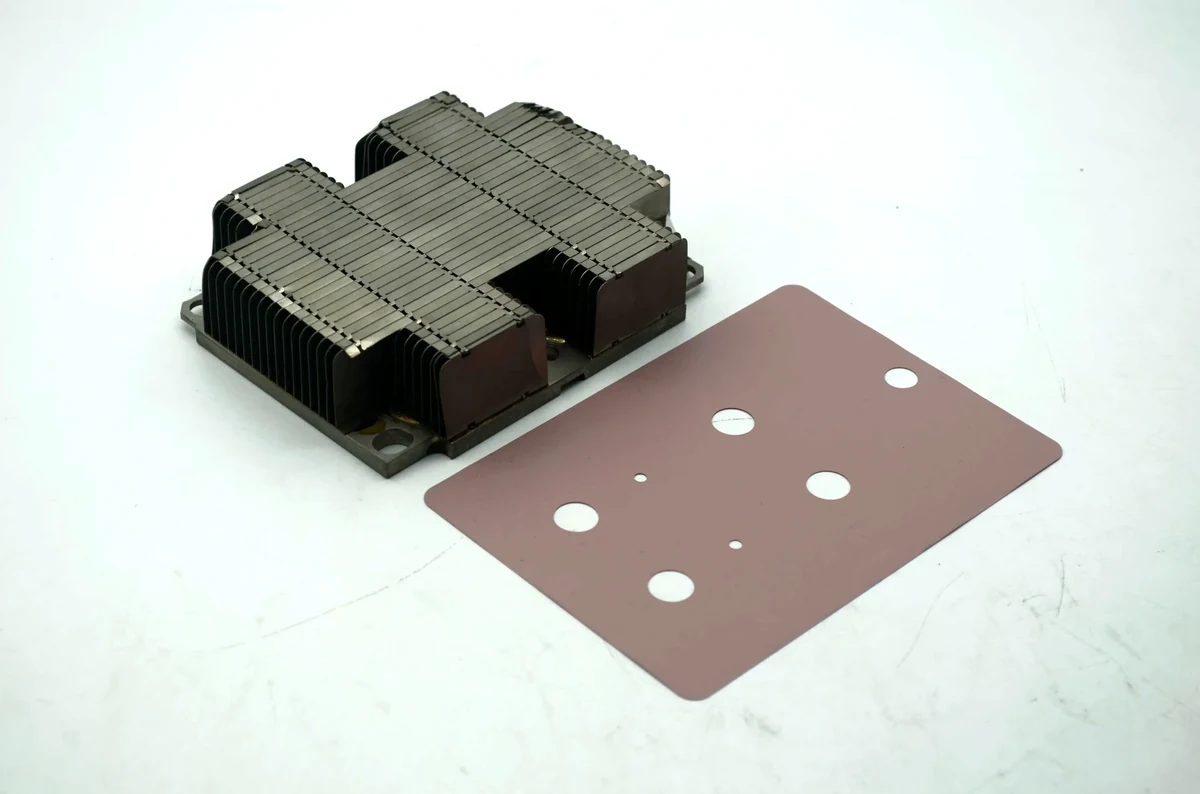

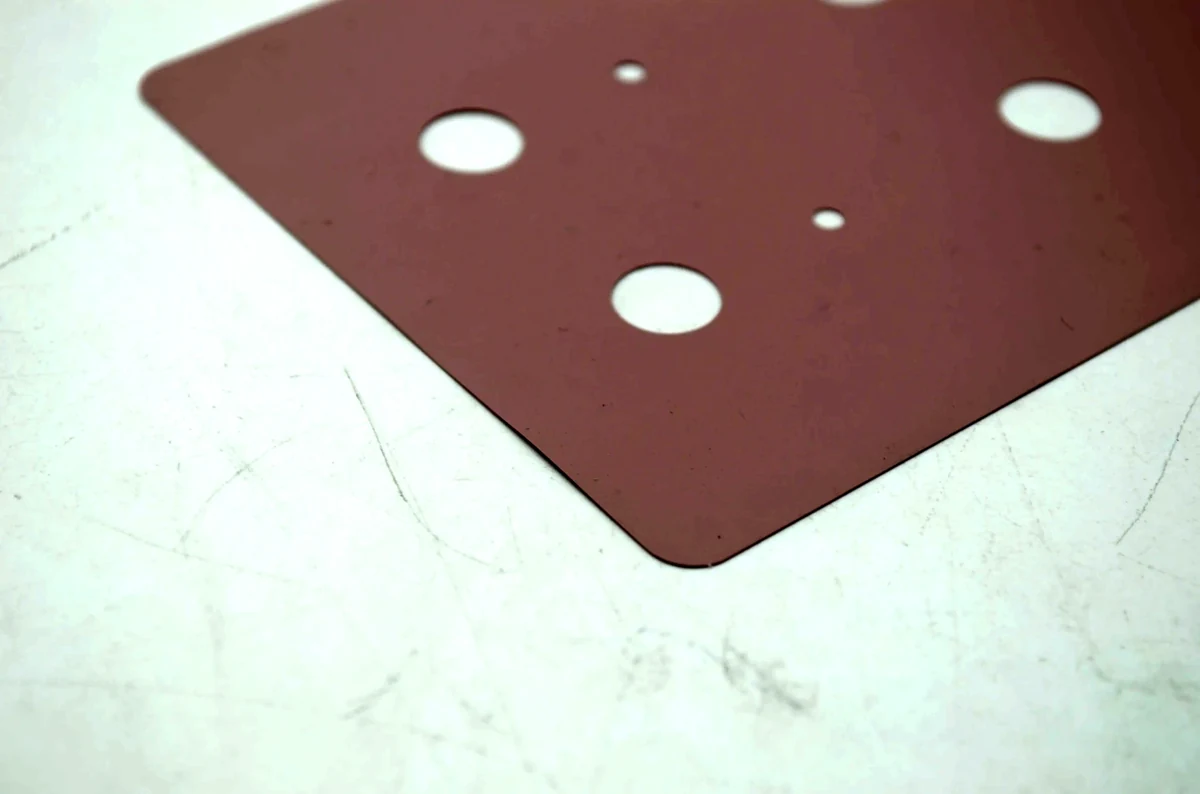

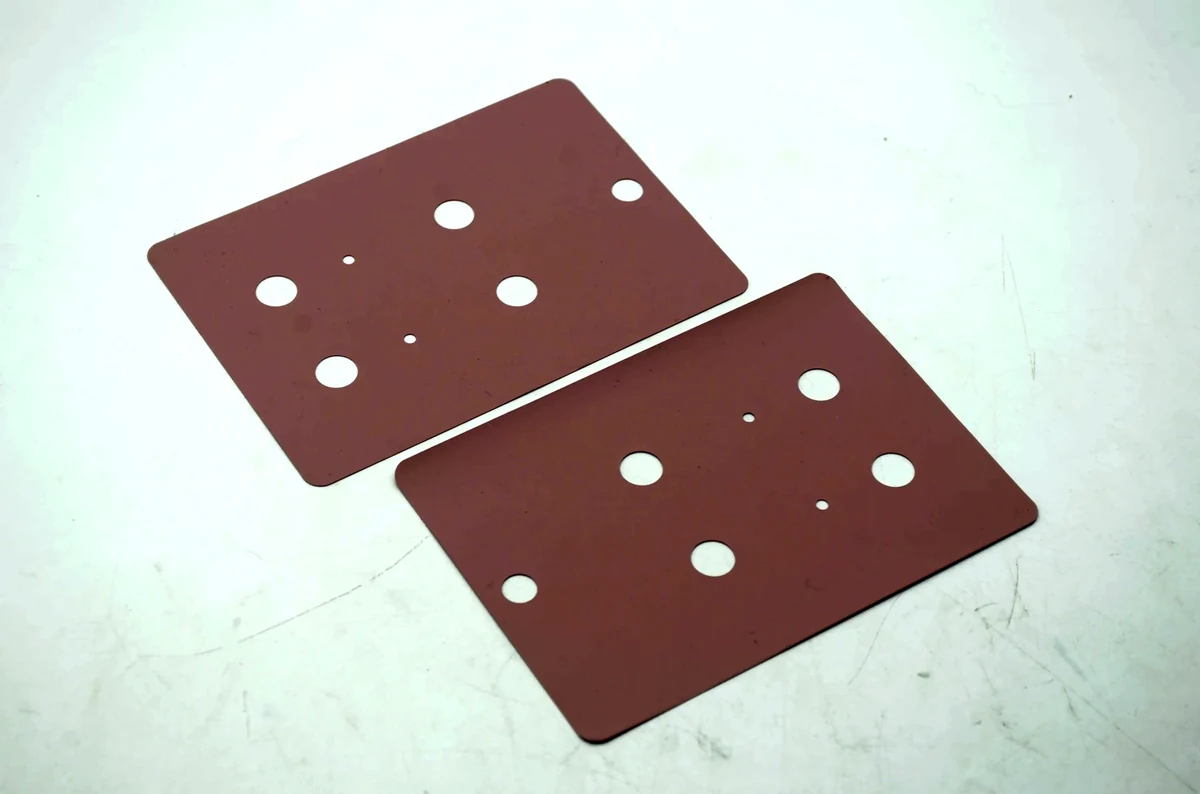

TIS™100-16-02 Series products are high-efficiency thermally conductive insulators (red) with a fiberglass-reinforced silicone substrate. The insulating silicone base is loaded with ceramic filler, delivering 1.6 W/m·K thermal conductivity along with 5 kV breakdown isolation for power-supply, motor-controller, and power-semiconductor assemblies.
TIS100-16-02 — Features
High thermal conductivity (1.6 W/m·K) with high dielectric strength
Low thermal resistance with high voltage isolation
Resistant to tears and punctures
Where this grade is used
Typical application targets for this grade include Car battery and power supply, Power semiconductors, Audio and video components, Motor controllers.
Drives · IGBT · controllers · sensors
Power Tools & Control Systems
Industrial controls, motor drives, power-stage IGBTs, and rugged modules — thermal interfaces, sealing, and encapsulation built for serviceable assemblies and harsh environments.
EV packs · OBC · inverters · BMS
New energy
EV battery modules, traction inverters, on-board chargers, and renewable power conversion — thermal management for high-current cycling loads with HV isolation requirements.
TIS100-16-02 — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIS100-16-02-Serice-Datasheet(英)-REV01.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Color | Red | Visual |
| Reinforcement Carrier | Fiberglass | — |
| Thickness | 0.230-0.457 mm | ASTM D374 |
| Specific Gravity (g/cm³) | 2.3 | ASTM D297 |
| Hardness | 89 Shore A | ASTM D751 |
| Tensile Strength | 425 Kpsi | ASTM D412 |
| Continuous Use Temperature | -40 to 180 °C | — |
| Dielectric Breakdown Voltage | 5000 VAC | ASTM D149 |
| Dielectric Constant @1000Hz | 5.5 | ASTM D150 |
| Volume Resistivity (Ω·cm) | 1.1×10¹² | ASTM D257 |
| Flame Rating | 94 V-0 | UL E331100 |
| Thermal Conductivity (W/m·K) | 1.6 | ASTM D5470 |
| Thermal Resistance @30 psi | 1.95 °C·in²/W | ASTM D5470 |
| Thermal Resistance @50 psi | 1.92 °C·in²/W | ASTM D5470 |
* Match values to the PDF revision cited on your purchase order.
Related thermally conductive insulators models
TIS100-16-02 — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIS100-16-02?
The customer workbook lists nominal through-plane conductivity as 1.6 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIS100-16-02 die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Thermally conductive insulators parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIS100-16-02?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIS100-16-02 RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
