TIS800K Thermally Conductive Insulator
- Density (g/cm³)
- 2.0
- Dielectric Breakdown Voltage
- 6500 / 7000 / 7500 VAC
- Dielectric Constant @ 1 MHz
- 3.8
- Flame Rating
- V-0
- Polyimide Film Thickness
- 0.025 mm
- Recommended Operating Tem…
- -45~160 °C

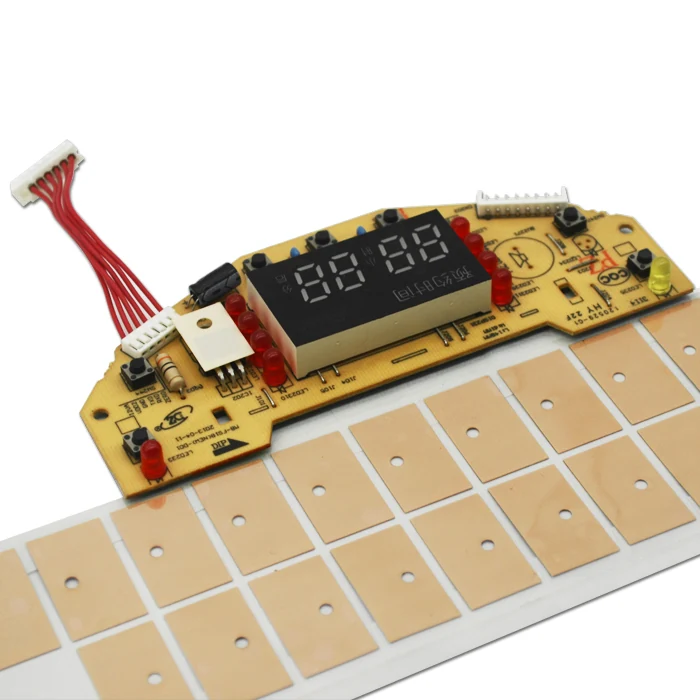

TIS800K — Product overview

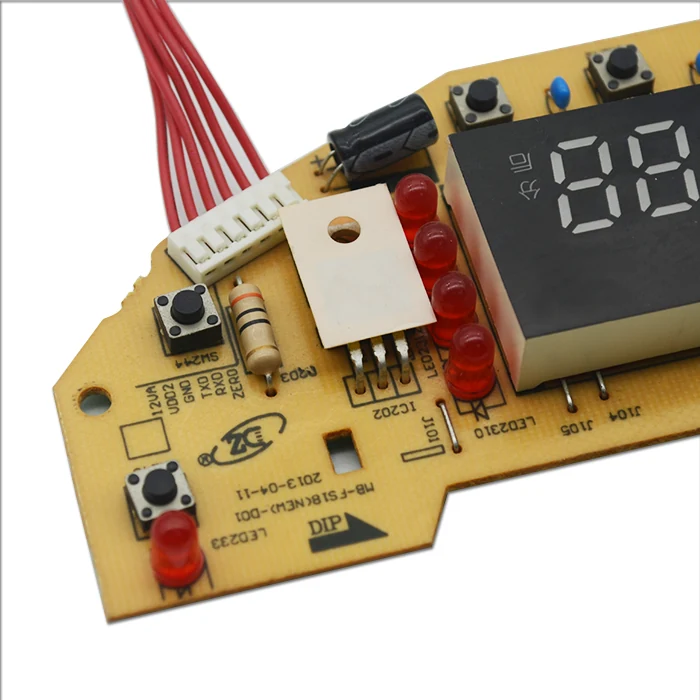

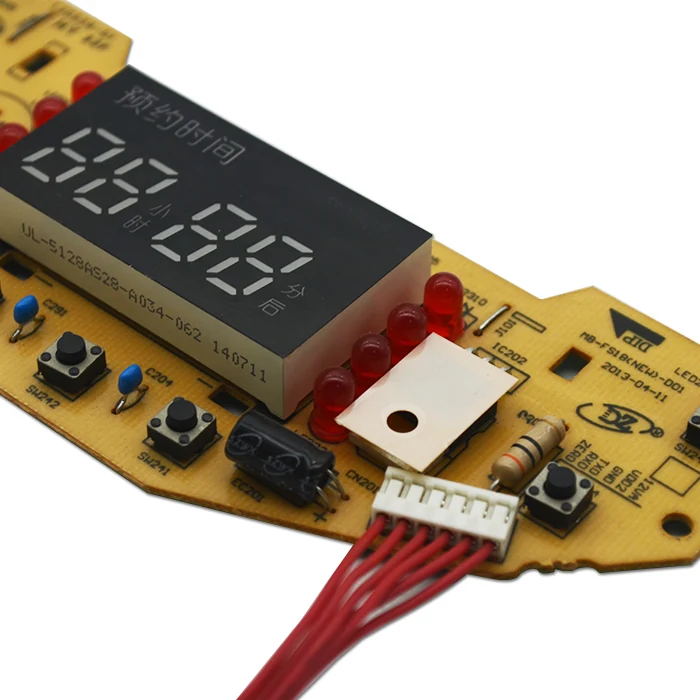

TIS®800K series is a thermal silicone product featuring a ceramic-filled layer coated on a polyimide film, offering excellent thermal conductivity and heat transfer performance. The TIS®800K model is designed for screw-mounted applications on device openings, with the composite polyimide film providing superior dielectric insulation. Its soft thermal coating enhances gap-filling capability and improves handling during assembly.
TIS800K — Features
Relatively soft surface, good thermal conductivit
High voltage insulation, low thermal resistance
Tear-resistant and puncture-resistant
Where this grade is used
Typical application targets for this grade include Power supplies and automotive battery packs, Power semiconductor devices, Audio-visual products, Charging stations.
Drives · IGBT · controllers · sensors
Power Tools & Control Systems
Industrial controls, motor drives, power-stage IGBTs, and rugged modules — thermal interfaces, sealing, and encapsulation built for serviceable assemblies and harsh environments.
EV packs · OBC · inverters · BMS
New energy
EV battery modules, traction inverters, on-board chargers, and renewable power conversion — thermal management for high-current cycling loads with HV isolation requirements.
TIS800K — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIS800K-Data-Sheet.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Product Name | TIS®806K / TIS®808K / TIS®810K | — |
| Color | Light Amber | Visual |
| Polyimide Film Thickness | 0.001" (0.025 mm) | ASTM D374 |
| Total Thickness | 0.006" (0.152 mm) / 0.008" (0.203 mm) / 0.010" (0.254 mm) | ASTM D374 |
| Density (g/cm³) | 2.0 | ASTM D792 |
| Tensile Strength | 10 MPa | ASTM D751 |
| Recommended Operating Temperature | -45~160 °C | — |
| Dielectric Breakdown Voltage | 6500 / 7000 / 7500 VAC | ASTM D149 |
| Dielectric Constant @ 1 MHz | 3.8 | ASTM D150 |
| Volume Resistivity (Ω·cm) | 3.5×10¹³ | ASTM D257 |
| Thermal Conductivity (W/m·K) | 1.3 | ASTM D5470 |
| Flame Rating | V-0 | UL94 |
* Match values to the PDF revision cited on your purchase order.
Related thermally conductive insulators models
TIS800K — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIS800K?
The customer workbook lists nominal through-plane conductivity as 1.3 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIS800K die-cut or in custom thickness?

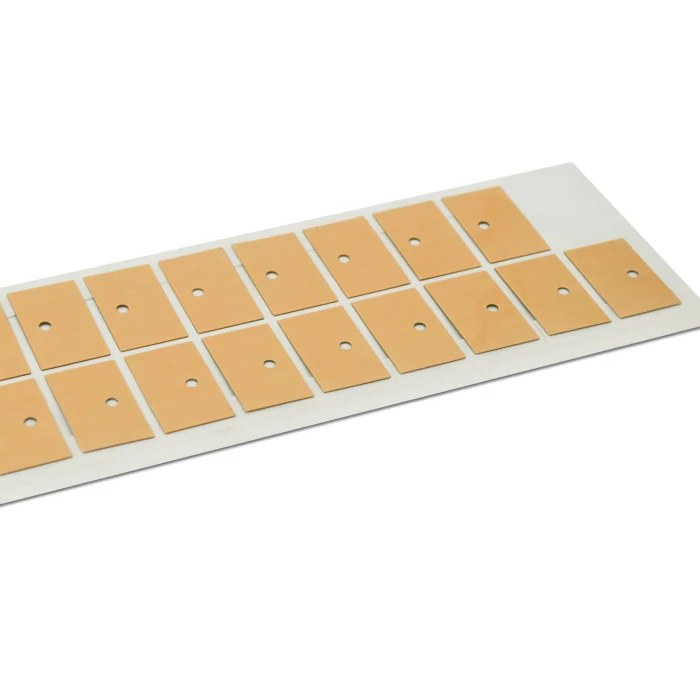

Yes — send DXF/DWG outlines and stack height. Thermally conductive insulators parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIS800K?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIS800K RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
