TCP100-01PP Thermally Conductive Plastic
- Dielectric Breakdown Voltage
- >10000 VAC
- Dielectric Constant, 1MHz
- 3.1
- Flame retardancy
- V-0 Class
- Specific Gravity (g/cm³)
- 1.55
- Thermal Conductivity Thro…
- 0.8
- Volume Resistivity (Ω·m)
- 7.0 × 10¹²
TCP100-01PP — Product overview
TCP™100-01PP is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.
TCP100-01PP — Features
Good thermal conductivity
Excellent thermal conductivity compared to normal engineering plastics
Lighter than normal Aluminum housing 30% in weight
Excellent mould ability in injection moulding
Where this grade is used

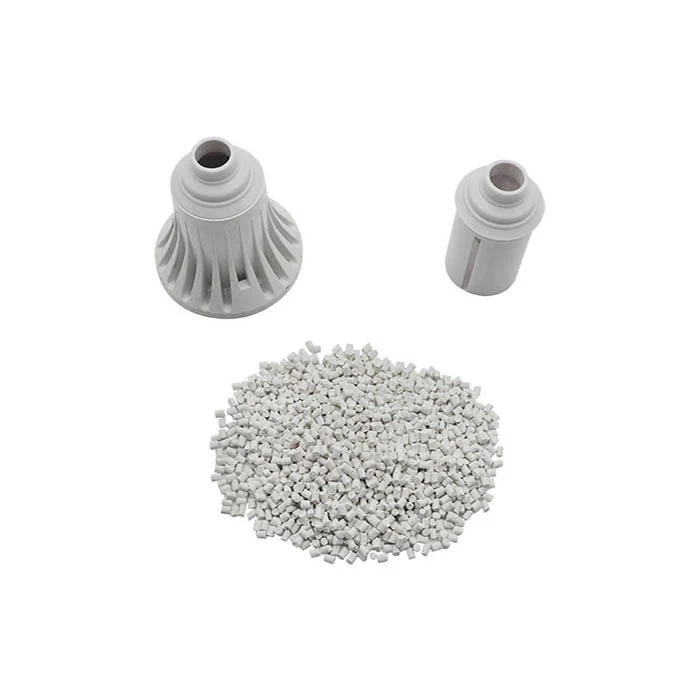

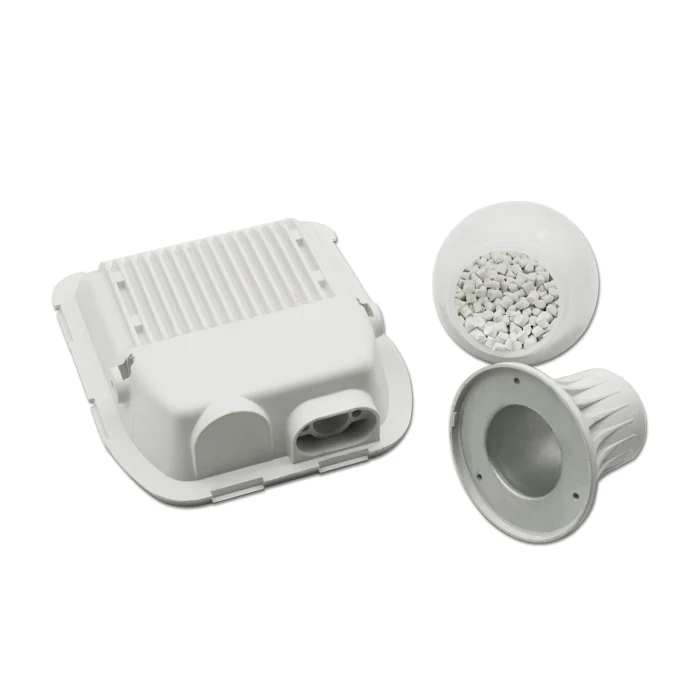

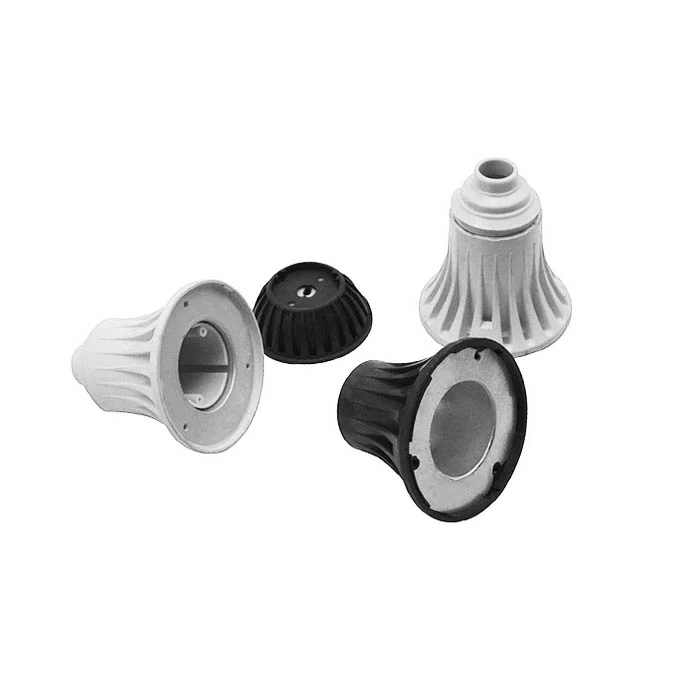

Typical application targets for this grade include TCP™100-01PP can be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink..
TCP100-01PP — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TCP100-01PP-TDS_EN_REV01.3.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Physical Properties | ||
| Color | White | Visual |
| Melt index | 14.73 g/10min | ASTM D1238 |
| Specific Gravity (g/cm³) | 1.55 | ASTM D792 |
| Shrinkage | 1.3 % | ASTM D955 |
| Mechanical Properties | ||
| Tensile Strength | 9.92 MPa | ASTM D638 |
| Flexural Strength | 38 MPa | ASTM D790 |
| Flexural Modulus | 3900 MPa | ASTM D790 |
| Impact Strength, notched | 8.9 kJ/m² | GB/T 1483-2008 |
| Electrical Properties | ||
| Dielectric Breakdown Voltage | >10000 VAC | ASTM D149 |
| Dielectric Constant, 1MHz | 3.1 | ASTM D150 |
| Volume Resistivity (Ω·m) | 7.0 × 10¹² | ASTM D257 |
| Thermal Properties | ||
| Heat Deflection Temperature | 130 °C | ASTM D648 |
| Thermal Conductivity Through Plane (W/m·K) | 0.8 | ASTM E1461 |
| Flame retardancy | V-0 Class | Min. thick. 1.0mm |
| Injection parameters | ||
| Barrel Zone Temperature — One sect | 180–220°C | — |
| Barrel Zone Temperature — Two sect | 190–230°C | — |
| Barrel Zone Temperature — Three sect | 180–220°C | — |
| Mouth Temperature | 200–230°C | — |
| Melt Temperature | 200–240°C | — |
| Bake Temperature | 80–90°C 2H | — |
| Mould Temperature | According to the machine tonnage °C | — |
| Injection Pressure | According to the machine tonnage Bar | — |
| Injection Speed | Medium Speed mm/s | — |
* Match values to the PDF revision cited on your purchase order.
Related thermally conductive plastics models
| Model | λ (W/m·K) | Specific Gravity | View |
|---|---|---|---|
| TCP100-07-06A | 0.7 W/m·K | 1.5 | Details |
| TCP300PS-09-02A | 0.9 W/m·K | 1.7 | Details |
| TCP300PS-09-06A | 0.9 W/m·K | 1.7 | Details |
| TCP300PS-09-06A1 | 0.9 W/m·K | 1.6±0.05 | Details |
| TCP300PS-10-02S | 1.1 W/m·K | 1.7 | Details |
| TCP200-15-02A | 1.5 W/m·K | 1.45 | Details |
| TCP100-18-06A | 1.8 W/m·K | 1.55 | Details |
| TCP200-18-02A | 1.8 W/m·K | 1.45 | Details |
TCP100-01PP — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TCP100-01PP?
The customer workbook lists nominal through-plane conductivity as 0.8 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TCP100-01PP die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Thermally conductive plastics parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TCP100-01PP?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TCP100-01PP RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
