TCP200-18-02A Thermally Conductive Plastic
- Density (g/cm³)
- 1.45
- Dielectric Breakdown Volt…
- ≥5500
- Dielectric Constant @1MHz
- 2.5
- Flame Retardant Rating
- V-0
- Thermal Conductivity (Thr…
- 1.8 W/m·K
- Volume Resistivity (Ω·cm)
- 8.0×10¹²
TCP200-18-02A — Product overview

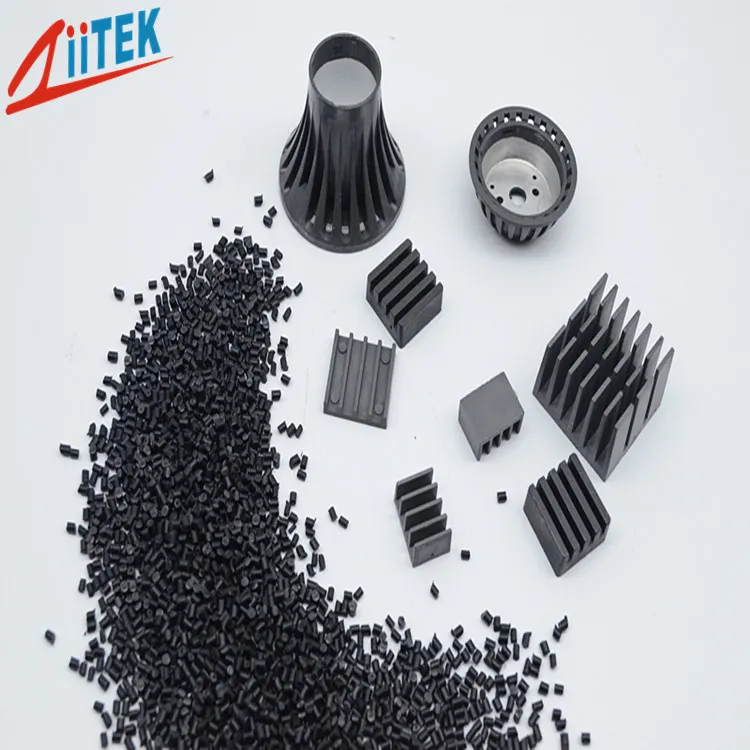

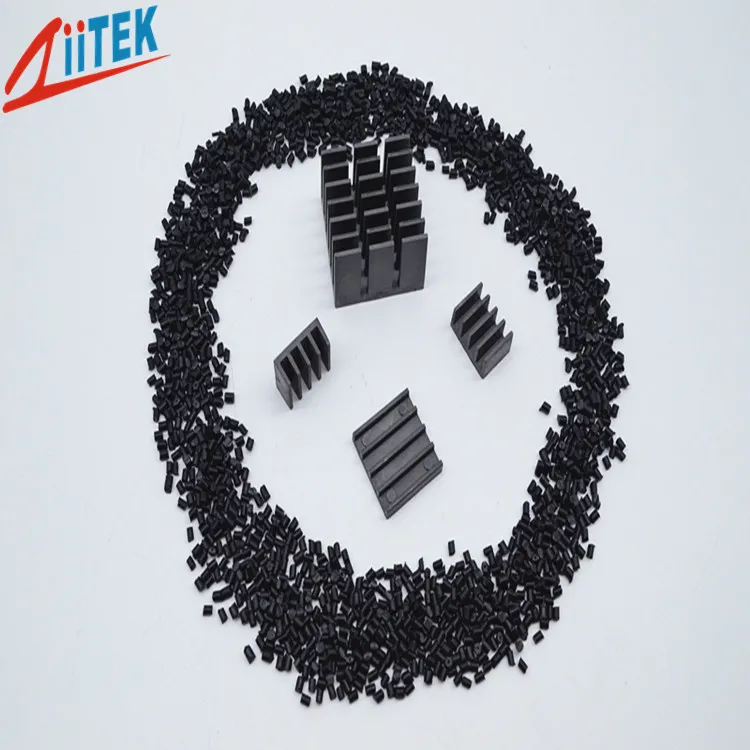

TCP®200-18-02A is made by uniformly dispersing thermally conductive fillers in a polymer matrix, successfully combining the excellent mechanical properties and processing convenience of engineering plastics with active heat dissipation capabilities. Compared to ordinary plastics, it can transfer and distribute heat more effectively; compared to metals, it has advantages such as being lightweight, electrically insulating, corrosion-resistant, and offering a high degree of design flexibility.
TCP200-18-02A — Features
Even heat dissipation, preventing hotspots and reducing local deformation of parts due …
Lightweight, lighter than aluminum
Easy to mold and process, no secondary processing required
High flexibility in product design
Where this grade is used

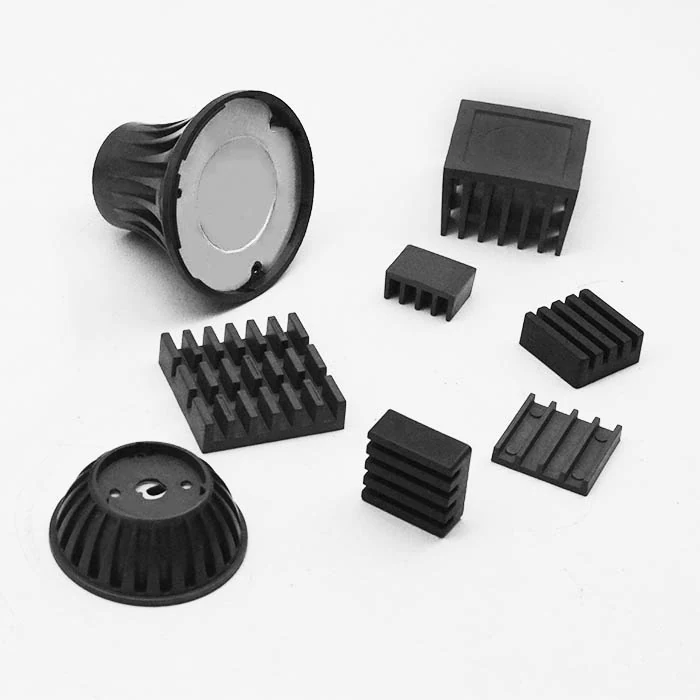

Typical application targets for this grade include Heat dissipation housing for LED bulbs and spotlights, light engine substrates, Insulation brackets and housings for battery management systems, Housings for charging equipment, Insulation brackets and sensor housings for motor drivers, electrical junction boxes.
TCP200-18-02A — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TCP200-18-02A_Data-Sheet.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Typical Properties (Part A) | ||
| Color | Black | Visual |
| Construction | Nylon | - |
| Melt Index | 150 g/10min | ASTM D1238 |
| Density (g/cm³) | 1.45 | ASTM D792 |
| Shrinkage | 0.3~0.5 % | ASTM D955 |
| Tensile Strength | 55 MPa | ASTM D638 |
| Flexural Strength | 70 MPa | ASTM D790 |
| Flexural Modulus | 9000 MPa | ASTM D790 |
| Notched Izod Impact | 4.5 KJ/m² | ASTM D256 |
| Dielectric Breakdown Voltage (V/mm) | ≥5500 | ASTM D149 |
| Dielectric Constant @1MHz | 2.5 | ASTM D150 |
| Volume Resistivity (Ω·cm) | 8.0×10¹² | ASTM D257 |
| Heat Deflection Temperature | 180 °C | ASTM D648 |
| Vicat Temperature | 170 °C | ASTM D648 |
| Thermal Conductivity (Through-plane) | 1.8 W/m·K | ASTM D5470 |
| Flame Retardant Rating | V-0 | UL94 (E331100) |
| Recommended Injection Parameters (Part A) | ||
| Material Barrel Temperature — One Section | 230-250 °C | — |
| Material Barrel Temperature — Second Section | 245-260 °C | — |
| Material Barrel Temperature — Three Section | 245-260 °C | — |
| Nozzle Temperature | 240-260 °C | — |
| Melt Temperature | 245-260 °C | — |
| Drying Material Temperature (4h) | 90-120 °C | — |
| Mold Temperature | 80-100 °C | — |
| Injection Molding Pressure | According to Machine Tonnage Bar | — |
| Injection Molding Speed | Medium Speed mm/s | — |
* Match values to the PDF revision cited on your purchase order.
Related thermally conductive plastics models
| Model | λ (W/m·K) | Specific Gravity | View |
|---|---|---|---|
| TCP100-07-06A | 0.7 W/m·K | 1.5 | Details |
| TCP100-01PP | 0.8 W/m·K | 1.55 | Details |
| TCP300PS-09-02A | 0.9 W/m·K | 1.7 | Details |
| TCP300PS-09-06A | 0.9 W/m·K | 1.7 | Details |
| TCP300PS-09-06A1 | 0.9 W/m·K | 1.6±0.05 | Details |
| TCP300PS-10-02S | 1.1 W/m·K | 1.7 | Details |
| TCP200-15-02A | 1.5 W/m·K | 1.45 | Details |
| TCP100-18-06A | 1.8 W/m·K | 1.55 | Details |
TCP200-18-02A — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TCP200-18-02A?
The customer workbook lists nominal through-plane conductivity as 1.8 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TCP200-18-02A die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Thermally conductive plastics parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TCP200-18-02A?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TCP200-18-02A RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
