TCP200-15-02A Thermally Conductive Plastic
- Dielectric Breakdown Volt…
- >5.5
- Dielectric Constant, 1MHz
- 4.5
- Flame retardancy
- V-0 Class
- Specific Gravity (g/cm³)
- 1.45
- Thermal Conductivity Thro…
- 1.5
- Volume Resistivity (Ω·m)
- 8.0 × 10¹²
TCP200-15-02A — Product overview
TCP™200-15-02A is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.
TCP200-15-02A — Features
Good thermal conductivity
Excellent thermal conductivity compared to normal engineering plastics
Lighter than normal Aluminum housing 30% in weight
Excellent mould ability in injection moulding
Much higher production yield than normal Aluminum Die Casting
Excellent flexibility in designing final products such as housings.
Where this grade is used

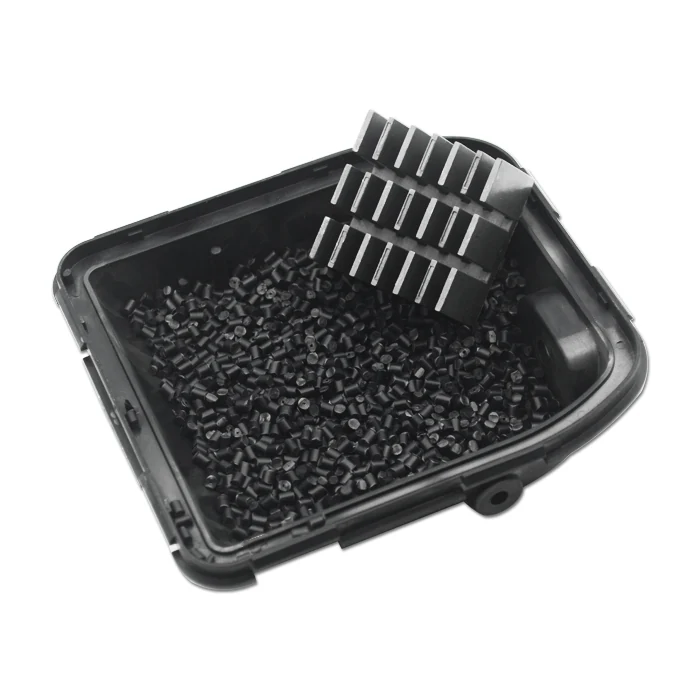

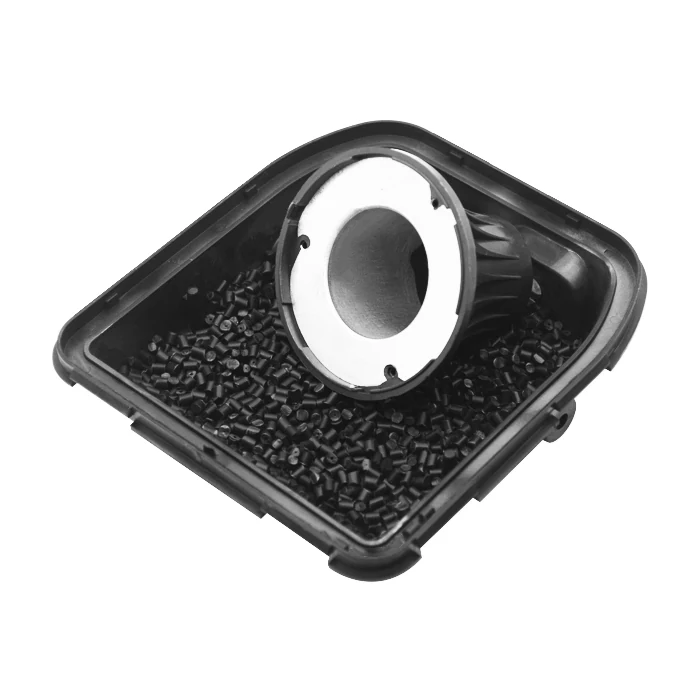

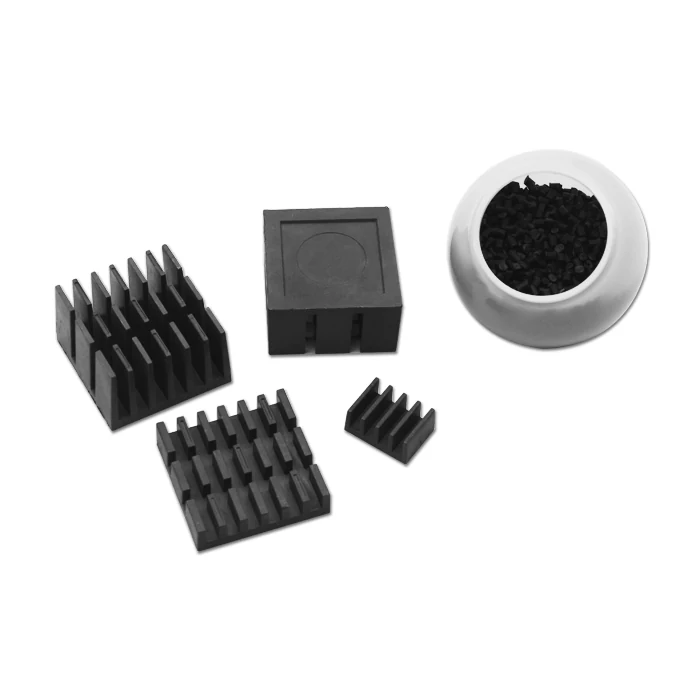

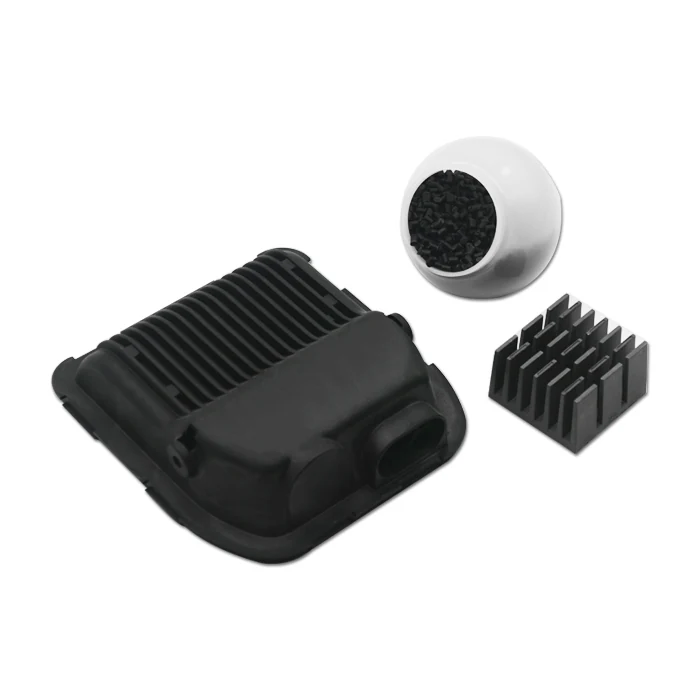

Typical application targets for this grade include TCP™200-15-02A can be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink..
TCP200-15-02A — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TCP200-15-02A-Thermally-Conductive-plastic.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Physical Properties | ||
| Color | Black | Visual |
| Melt index | 150 g/10min | ASTM D1238 |
| Specific Gravity (g/cm³) | 1.45 | ASTM D792 |
| Shrinkage | 0.3~0.5 % | ASTM D955 |
| Mechanical Properties | ||
| Tensile Strength | 55 MPa | ASTM D638 |
| Flexural Strength | 70 MPa | ASTM D790 |
| Flexural Modulus | 9000 MPa | ASTM D638 |
| Impact Strength, notched | 4.5 kJ/m² | ASTM D256 |
| Electrical Properties | ||
| Dielectric Breakdown Voltage (KV/mm) | >5.5 | ASTM D149 |
| Dielectric Constant, 1MHz | 4.5 | ASTM D150 |
| Volume Resistivity (Ω·m) | 8.0 × 10¹² | ASTM D257 |
| Thermal Properties | ||
| Heat Deflection Temperature | 180 °C | ASTM D648 |
| Vicat Temperature | 170 °C | ASTM D648 |
| Thermal Conductivity Through Plane (W/m·K) | 1.5 | ASTM D5470 |
| Flame retardancy | V-0 Class | Min. thick. 1.0mm |
| Injection parameters | ||
| Barrel Zone Temperature — One sect | 230-250°C | — |
| Barrel Zone Temperature — Two sect | 245-260°C | — |
| Barrel Zone Temperature — Three sect | 245-260°C | — |
| Mouth Temperature | 240-260°C | — |
| Melt Temperature | 245-260°C | — |
| Bake Temperature | 90-120°C 4H | — |
| Mould Temperature | 80-100°C | — |
| Injection Pressure | According to the machine tonnage Bar | — |
| Injection Speed | High Speed mm/s | — |
* Match values to the PDF revision cited on your purchase order.
Related thermally conductive plastics models
| Model | λ (W/m·K) | Specific Gravity | View |
|---|---|---|---|
| TCP100-07-06A | 0.7 W/m·K | 1.5 | Details |
| TCP100-01PP | 0.8 W/m·K | 1.55 | Details |
| TCP300PS-09-02A | 0.9 W/m·K | 1.7 | Details |
| TCP300PS-09-06A | 0.9 W/m·K | 1.7 | Details |
| TCP300PS-09-06A1 | 0.9 W/m·K | 1.6±0.05 | Details |
| TCP300PS-10-02S | 1.1 W/m·K | 1.7 | Details |
| TCP100-18-06A | 1.8 W/m·K | 1.55 | Details |
| TCP200-18-02A | 1.8 W/m·K | 1.45 | Details |
TCP200-15-02A — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TCP200-15-02A?
The customer workbook lists nominal through-plane conductivity as 1.5 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TCP200-15-02A die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Thermally conductive plastics parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TCP200-15-02A?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TCP200-15-02A RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
