TCP300PS-10-02S Thermally Conductive Plastic
- Flame retardancy
- Equal to UL 94 V0
- Specific Gravity (g/cm³)
- 1.7
- Surface Resistivity
- ≥10¹² Ω·cm
- Thermal Conductivity Thro…
- 1.1
- Back Pressure
- 3-9 Mpa
- Color
- Black
TCP300PS-10-02S — Product overview

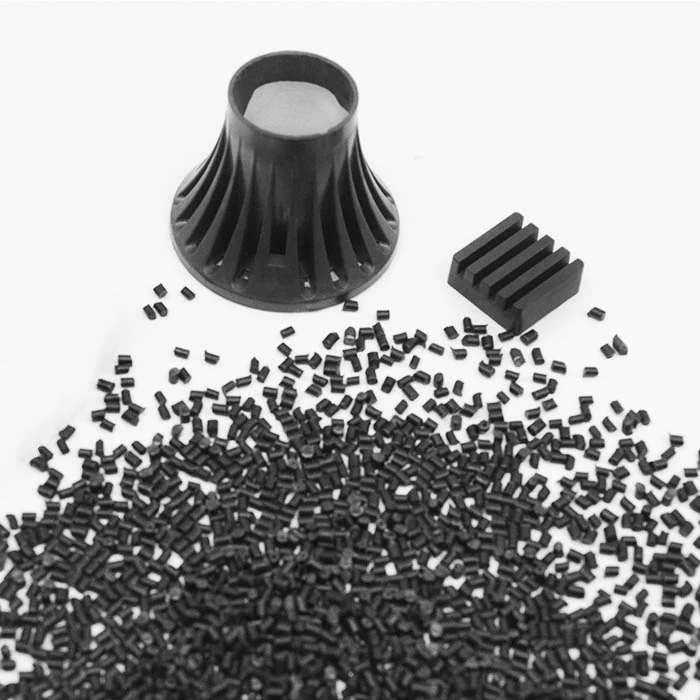

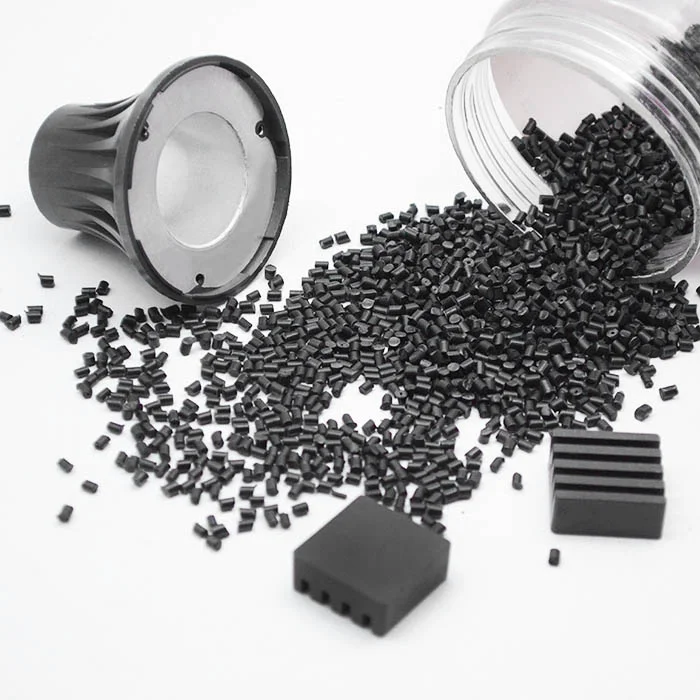

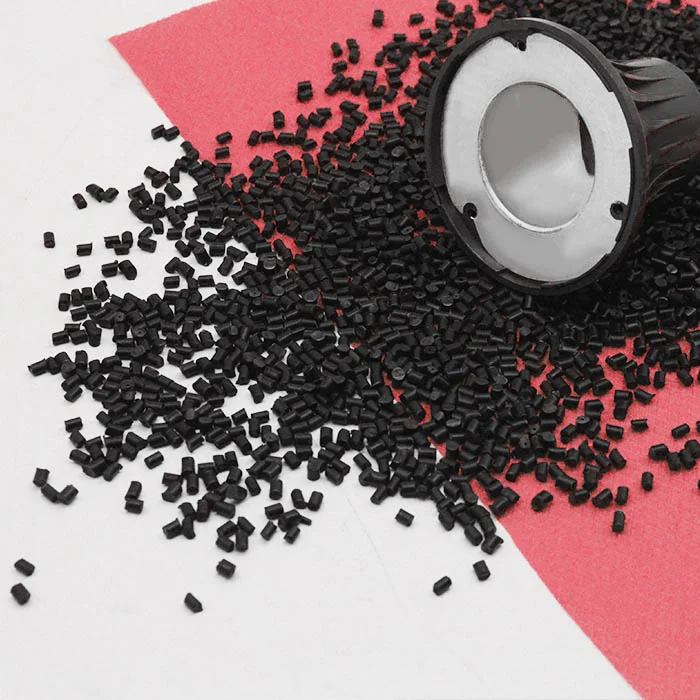

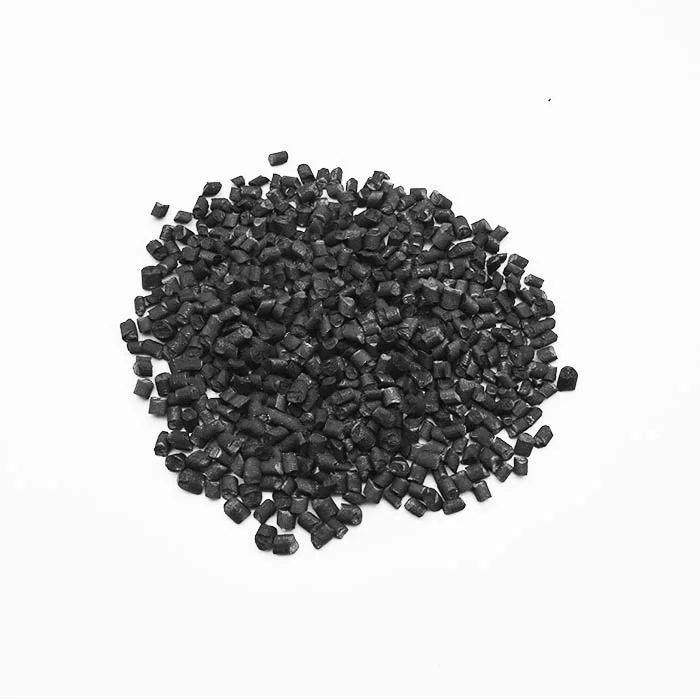

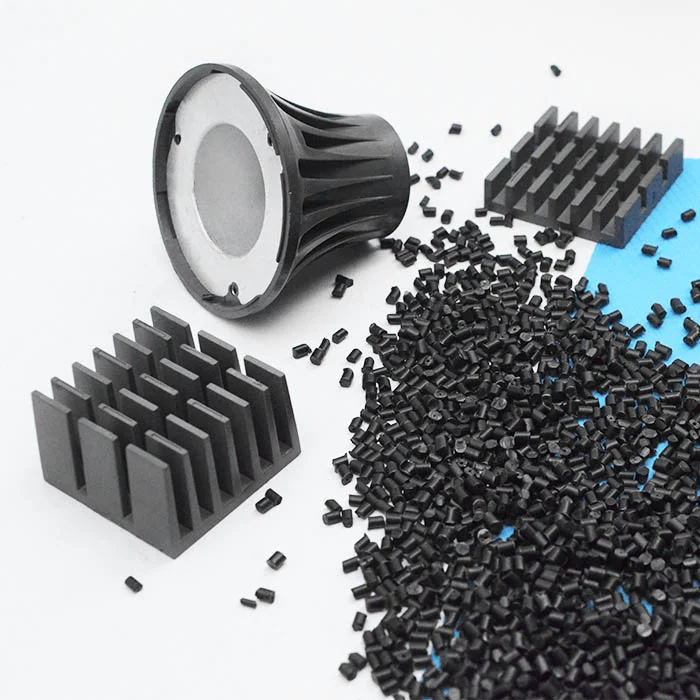

TCP™300PS-10-02S Series is a kind of thermal insulation polyphenylene sulfide material, with high thermal conductivity, electric conductivity, chemical resistance and heat resistance. This product is mainly used in automotive, electronic and electrical fields, used to make structural parts, shells, supports, trays and other parts that require insulation and heat conduction
TCP300PS-10-02S — Features
Good thermal conductivity
High mechanical strength and excellent compression and shear properties
Excellent creep property at high temperature and high fatigue resistance to repeated st…
Ionic impurities are very few and are used in fields where electrical properties are st…
Much higher production yield than
Where this grade is used
Typical application targets for this grade include Automobile engine and peripheral products, Electric products for electric vehicles., Mobile phone products, Mixed faucets in bathrooms and lavatories, etc..
TCP300PS-10-02S — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TCP300PS-10-02S-系列导热工程塑料规格书(英）.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Typical Properties | ||
| Color | Black | Visual |
| Construction | Polyphenylene sulfide | — |
| Specific Gravity (g/cm³) | 1.7 | ASTM D792 |
| Mold Shrinkage | 0.03 % | ASTM D995 |
| Moisture Absorption | 0.00 % | ASTM D570 |
| Tensile Strength | 33 MPa | ASTM D638 |
| Flexural Strength | 66 MPa | ASTM D790 |
| Flexural Modulus | 9200 MPa | ASTM D790 |
| Impact Strength, notched | 61 cm-kgf/cm | ASTM D256 |
| Impact Strength, unnotched | 102 cm-kgf/cm | ASTM D1461 |
| Surface Resistivity | ≥10¹² Ω·cm | ASTM D257 |
| HDT, 0.45MPa, 6.4mm | 210 °C | ASTM D648 |
| HDT, 1.82MPa, 6.4mm | 260 °C | ASTM D648 |
| Thermal Conductivity Through Plane (W/m·K) | 1.1 | ISO22007-2.2 |
| Flame retardancy | Equal to UL 94 V0 | — |
| Injection Molding Processing Parameters | ||
| Drying Temperature | 80-90 °C | — |
| Drying Time | 3-4 hrs | — |
| Maximum Moisture Content | 0.01 % | — |
| Melt Temperature | 250-280 °C | — |
| Nozzle Temperature | 250-280 °C | — |
| Front - Zone 3 Temperature | 250-280 °C | — |
| Middle - Zone 2 Temperature | 240-280 °C | — |
| Rear - Zone 1 Temperature | 230-270 °C | — |
| Mold Temperature | 80-100 °C | — |
| Back Pressure | 3-9 Mpa | — |
| Screw Speed | 30-150 rpm | — |
* Match values to the PDF revision cited on your purchase order.
Related thermally conductive plastics models
| Model | λ (W/m·K) | Specific Gravity | View |
|---|---|---|---|
| TCP100-07-06A | 0.7 W/m·K | 1.5 | Details |
| TCP100-01PP | 0.8 W/m·K | 1.55 | Details |
| TCP300PS-09-02A | 0.9 W/m·K | 1.7 | Details |
| TCP300PS-09-06A | 0.9 W/m·K | 1.7 | Details |
| TCP300PS-09-06A1 | 0.9 W/m·K | 1.6±0.05 | Details |
| TCP200-15-02A | 1.5 W/m·K | 1.45 | Details |
| TCP100-18-06A | 1.8 W/m·K | 1.55 | Details |
| TCP200-18-02A | 1.8 W/m·K | 1.45 | Details |
TCP300PS-10-02S — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TCP300PS-10-02S?
The customer workbook lists nominal through-plane conductivity as 1.1 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TCP300PS-10-02S die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Thermally conductive plastics parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TCP300PS-10-02S?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TCP300PS-10-02S RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
