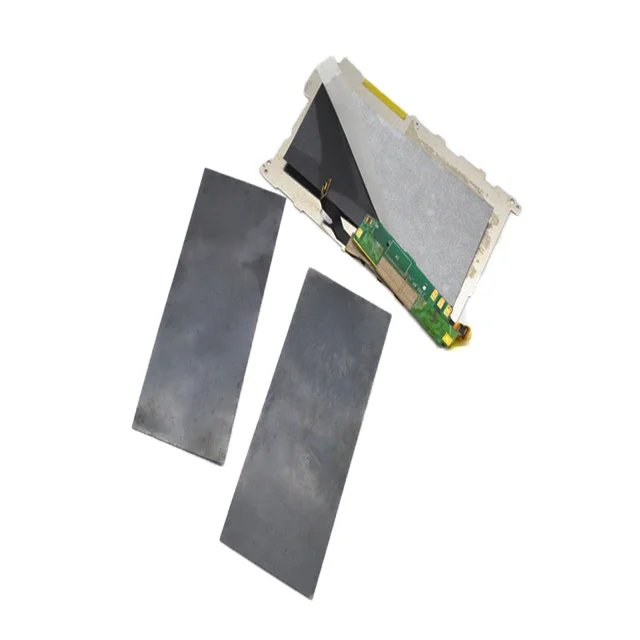

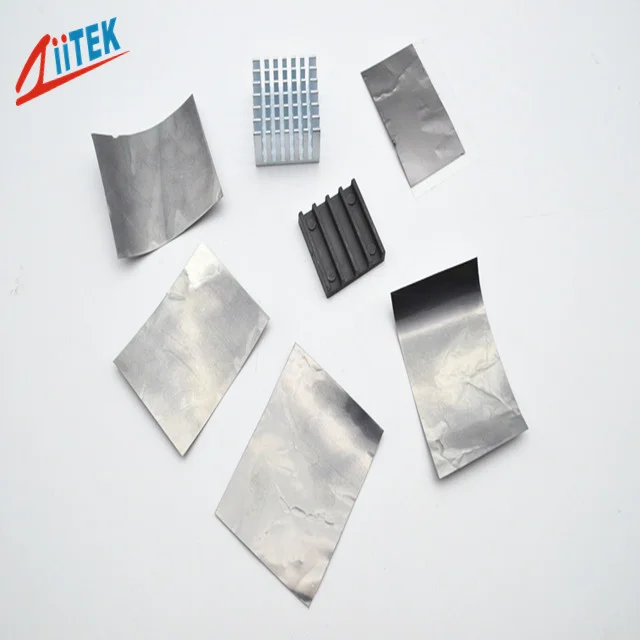

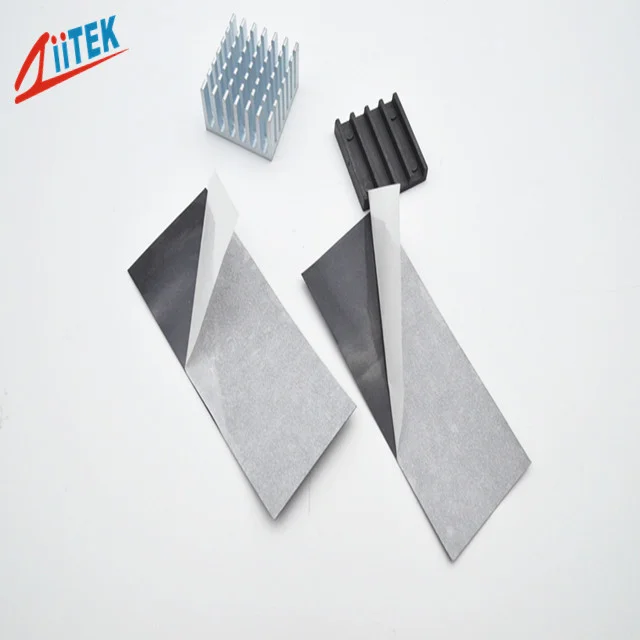

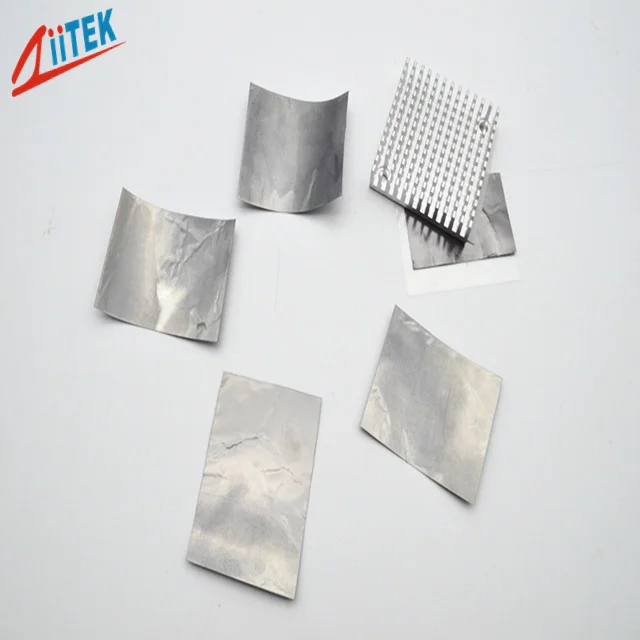

TIR300AL Thermal Graphite Sheet
- Density (g/cm³)
- 2.7
- Hardness
- 85 Shore A
- Single-sided coating Thic…
- 0.010~0.015 mm
- The aluminum foil thickness
- 0.030~0.050 mm
- Thickness Tolerance
- ±10% mm
- Total Thickness
- 0.050~0.080 mm
TIR300AL — Product overview
TIR™300AL Series products are a new material with highly effective heat conductivity and absorption, stabilized device function and reduce the chance of malfunction by spreading the high temperature heat radiated from specific parts or devices.
TIR300AL — Features
Good thermal conductive
Easy to assemble
Ultra-thin type
RoHS Compliant
Where this grade is used
Typical application targets for this grade include PDP, LCD TV, Set top box, Laptop, Notebook, Projector, Mobile phone, Hand-held devices, Automotive electronics.
TIR300AL — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIR300AL纳米碳鍍层復合鋁箔-英.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Product Name | TIR™350AL-T2 / TIR™380AL-T2 | — |
| Colour | Black | Visual |
| Material | Carbon nano composite The aluminum foil vacuum sputtering | — |
| Total Thickness | 0.050 mm / 0.080 mm | ASTM D751 |
| The aluminum foil thickness | 0.030 mm / 0.050 mm | ASTM D751 |
| Single-sided coating Thickness | 0.010 mm / 0.015 mm | ASTM D751 |
| Thickness Tolerance | ±10% | ASTM D751 |
| Density (g/cm³) | 2.7 | ASTM D297 |
| Hardness | 85 Shore A | ASTM D2240 |
| Operation Temperature | -40°C ~400°C | — |
| Volume Resistivity (Ω·m) | 6.2×10³ | ASTM D257 |
| Tensile Strength | 30 psi / 40 psi | ASTM D412 |
| Typical Thermal Conductivity (In Z axis) | 60 W/m·K | ASTM D5470 |
| Typical Thermal Conductivity (In X-Y axis) | 450 W/m·K | ASTM D5470 |
| Thermal Resistance @100psi | 0.072 in²°C/W / 0.105 in²°C/W | ASTM D5470 |
* Match values to the PDF revision cited on your purchase order.
