TIR300L-A1 Thermal Graphite Sheet
- Density (g/cm³)
- 1.4
- Hardness (Shore A)
- 90
- Thermal Conductivity (W/m·K)
- 2.5
- Thickness (mm)
- 0.15 mm
- Volume Resistivity (Ω·cm)
- 1×10²
- 180° Peel Strength
- 1.0 N/25 mm
TIR300L-A1 — Product overview

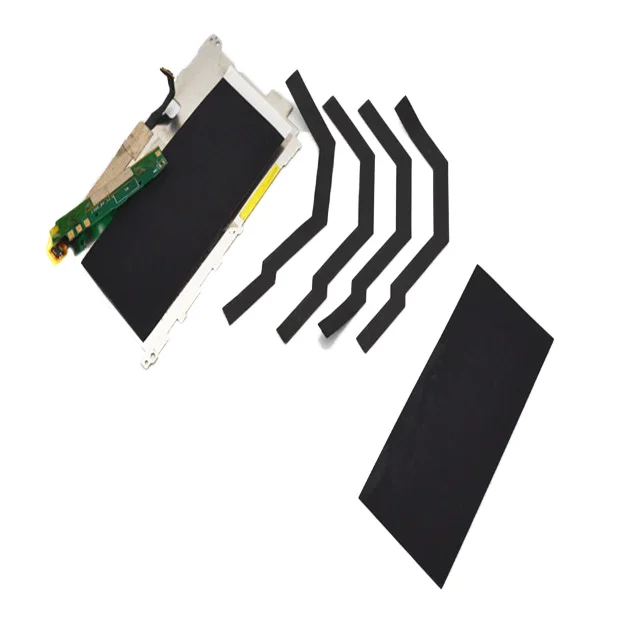

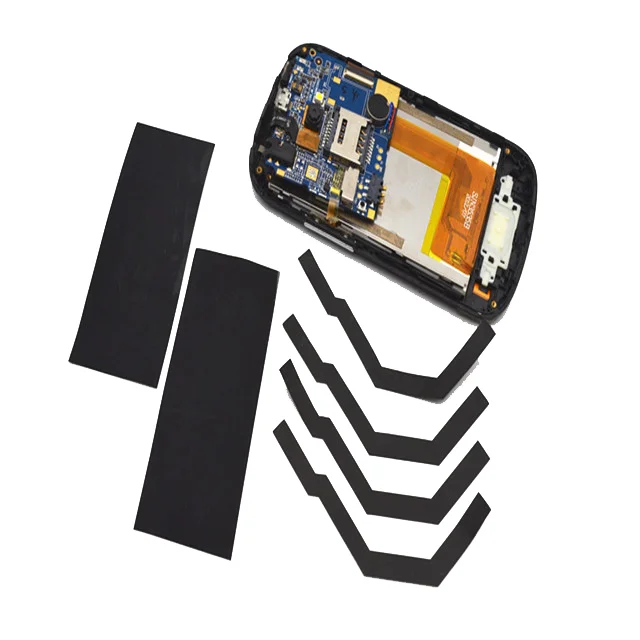

TIR®300L-A1 series is a graphite-enhanced composite thermal interface material engineered for high thermal conductivity and reliable heat dissipation. Reinforced with an aluminum foil layer, it maintains structural integrity throughout handling and application. The material conforms well to a variety of surfaces, enabling efficient thermal contact and ease of assembly. It is ideally suited for use between power transistors and heat sinks, as well as in large-area thermal interface applications.
TIR300L-A1 — Features
Excellent thermal impedance
Replaces traditional thermal grease
High reliability
Easy to apply to surfaces
Where this grade is used
Typical application targets for this grade include Between transistors and heat sinks, Between mechanical structures, Between heat sinks and external casings.
Servers · GPU · accelerators · DIMM
Data Center & AI Servers
High-flux silicon and dense PCBs — CPU/GPU bond-lines, VRM/DIMM/NIC interfaces, and accelerator cold-plate paths. Match grade against clamp force, TIM impedance, and rework cadence.
Drives · IGBT · controllers · sensors
Power Tools & Control Systems
Industrial controls, motor drives, power-stage IGBTs, and rugged modules — thermal interfaces, sealing, and encapsulation built for serviceable assemblies and harsh environments.
TIR300L-A1 — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIR300L-A1-TDS-EN.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Color | Black | Visual |
| Reinforcement Carrier | Aluminum | - |
| Thickness (mm) | 0.15 | ASTM D374 |
| Density (g/cm³) | 1.4 | ASTM D297 |
| Hardness (Shore A) | 90 | ASTM D2240 |
| Volume Resistivity (Ω·cm) | 1×10² | ASTM D257 |
| Continuous Use Temp (°C) | -60~180 | Ziitek Test Method |
| Thermal Conductivity (W/m·K) | 2.5 | ASTM D5470 |
| Thermal Impedance (°C·in²/W) @30 psi | 0.30 | ASTM D5470 |
| Thermal Impedance (°C·in²/W) @50 psi | 0.25 | ASTM D5470 |
| 180° Peel Strength | 1.0 N/25 mm | ASTM D3330 (Steel, Immediate) |
* Match values to the PDF revision cited on your purchase order.
Related graphite sheets for thermal management models
| Model | Thickness | X-Y Conductivity | View |
|---|---|---|---|
| TIR300 | 0.012~0.040 mm | 1200~1700 W/m·K | Details |
| TIR300AL | 0.050~0.080 mm | 450 W/m·K | Details |
| TIR300C | 0.040~0.080 mm | 700 W/m·K | Details |
| TIR300CU | 0.060~0.080 mm | 320 W/m·K | Details |
| TIR300G | 0.005~0.15 mm | 2.0 | Details |
| TIR600 | 0.127~0.508 mm | 240 W/m·K | Details |
| TS-TIR700-09 | 1.0~5.0 mm | 9.0 | Details |
| TS-TIR700-25 | 0.3~5.0 mm | 25 | Details |
TIR300L-A1 — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIR300L-A1?
The customer workbook lists nominal through-plane conductivity as — W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIR300L-A1 die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Graphite sheets for thermal management parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIR300L-A1?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIR300L-A1 RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
