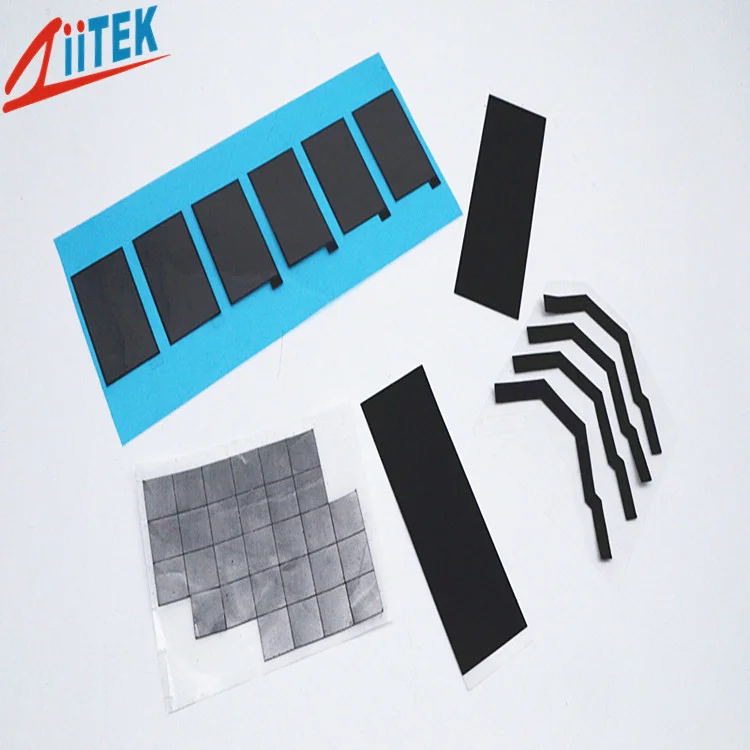

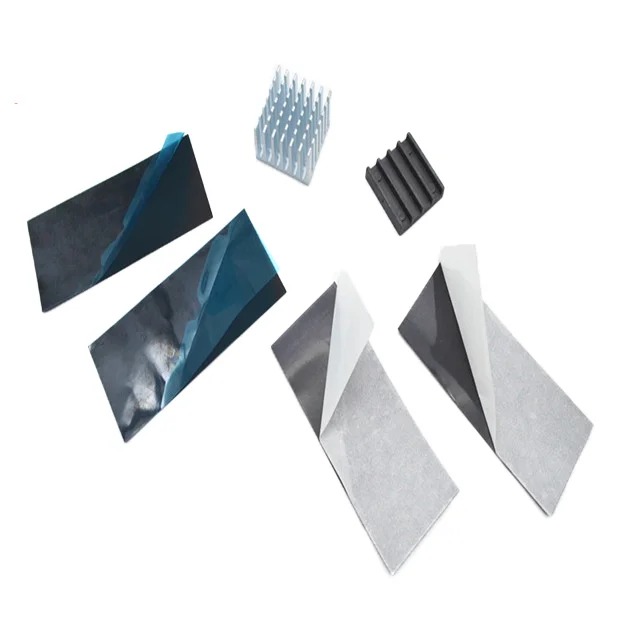

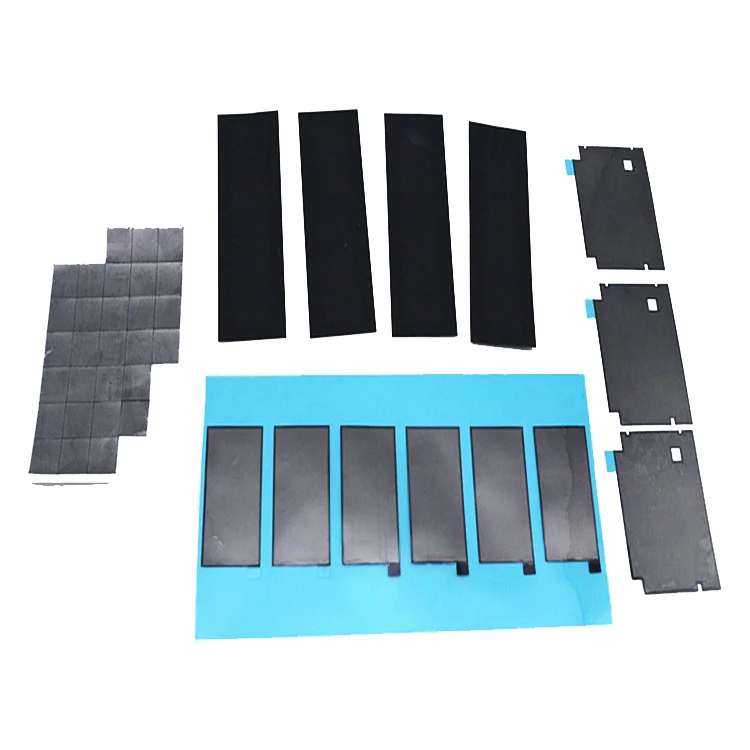

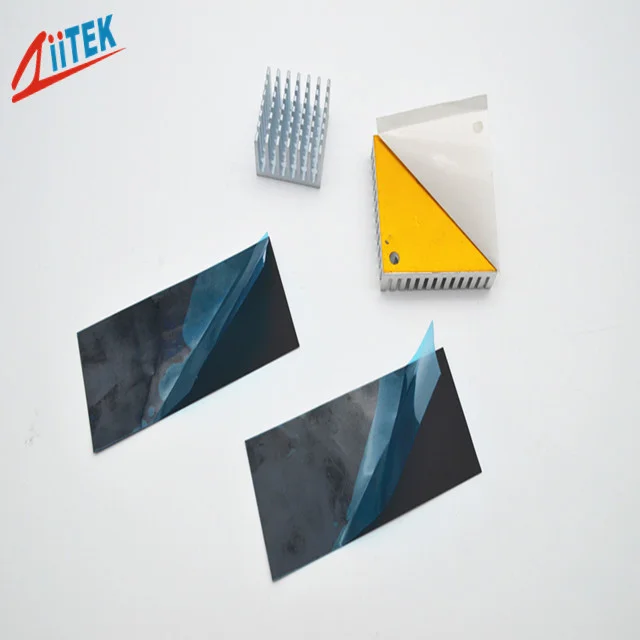

TIR300 Thermal Graphite Sheet
- Density
- 1.8~2.0 g/cm³
- Hardness
- 85 Shore A
- Thickness
- 0.012~0.040 mm
- Thickness Tolerance
- ±10% mm
- Typical Thermal Conductiv…
- 1200~1700 W/m·K
- Typical Thermal Conductiv…
- 4.2~12 W/m·K
TIR300 — Product overview
TIR™300 Series products are high performance thermal conductive interface materials. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus maximizes the ability of heat conduction.
TIR300 — Features
Good thermal conductive
Easy to assemble
Ultra-thin type
RoHS Compliant
Where this grade is used
Typical application targets for this grade include PDP, LCD TV, Set top box, Laptop, Notebook, Projector, Mobile phone, Hand-held devices, Automotive electronics.
Servers · GPU · accelerators · DIMM
Data Center & AI Servers
High-flux silicon and dense PCBs — CPU/GPU bond-lines, VRM/DIMM/NIC interfaces, and accelerator cold-plate paths. Match grade against clamp force, TIM impedance, and rework cadence.
Drives · IGBT · controllers · sensors
Power Tools & Control Systems
Industrial controls, motor drives, power-stage IGBTs, and rugged modules — thermal interfaces, sealing, and encapsulation built for serviceable assemblies and harsh environments.
TIR300 — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIR™-300-Series-Ultra-thin-super-thermally-conductive-(horizontal)-materials.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Product Name | TIR™312 / TIR™317 / TIR™325 / TIR™332 / TIR™340 | — |
| Colour | Black | Visual |
| Material | Synthetic graphite | — |
| Thickness | 0.012 mm / 0.017 mm / 0.025 mm / 0.035 mm / 0.040 mm | ASTM D751 |
| Thickness Tolerance | ±10% / ±10% / ±10% / ±10% / ±10% | ASTM D751 |
| Density | 1.9 g/cm³ / 2.0 g/cm³ / 1.8 g/cm³ / 1.9 g/cm³ / 1.8 g/cm³ | ASTM D297 |
| Hardness | 85 Shore A | ASTM D2240 |
| Operation Temperature | -40°C ~400°C | — |
| Volume Resistivity (Ω·m) | 3.2×10³ | ASTM D257 |
| Typical Thermal Conductivity (In Z axis) | 4.2 W/m·K / 5.0 W/m·K / 6.0 W/m·K / 8.0 W/m·K / 12 W/m·K | ASTM D5470 |
| Typical Thermal Conductivity (In X-Y axis) | 1600 W/m·K / 1700 W/m·K / 1500 W/m·K / 1400 W/m·K / 1200 W/m·K | — |
| Thermal Resistance @100psi | 0.028 in²°C/W / 0.030 in²°C/W / 0.035 in²°C/W / 0.045 in²°C/W / 0.060 in²°C/W | ASTM D5470 |
* Match values to the PDF revision cited on your purchase order.
Related graphite sheets for thermal management models
| Model | Thickness | X-Y Conductivity | View |
|---|---|---|---|
| TIR300AL | 0.050~0.080 mm | 450 W/m·K | Details |
| TIR300C | 0.040~0.080 mm | 700 W/m·K | Details |
| TIR300CU | 0.060~0.080 mm | 320 W/m·K | Details |
| TIR300G | 0.005~0.15 mm | 2.0 | Details |
| TIR300L-A1 | 0.15 mm | 2.5 | Details |
| TIR600 | 0.127~0.508 mm | 240 W/m·K | Details |
| TS-TIR700-09 | 1.0~5.0 mm | 9.0 | Details |
| TS-TIR700-25 | 0.3~5.0 mm | 25 | Details |
TIR300 — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIR300?
The customer workbook lists nominal through-plane conductivity as — W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIR300 die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Graphite sheets for thermal management parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIR300?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIR300 RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
