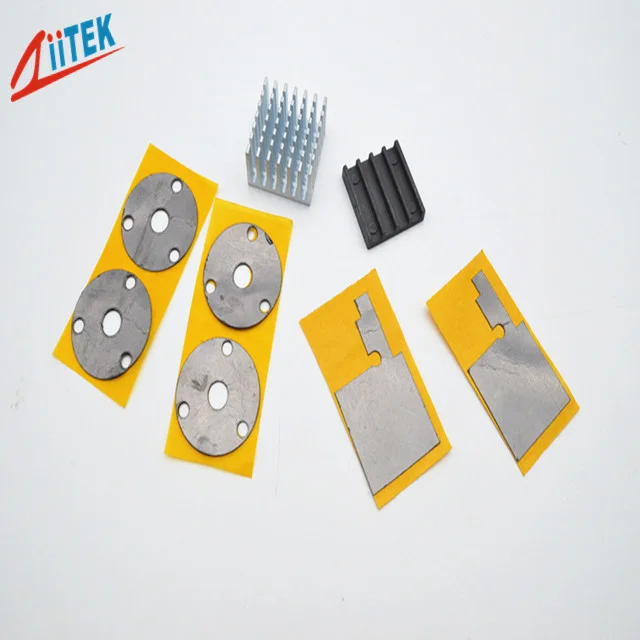

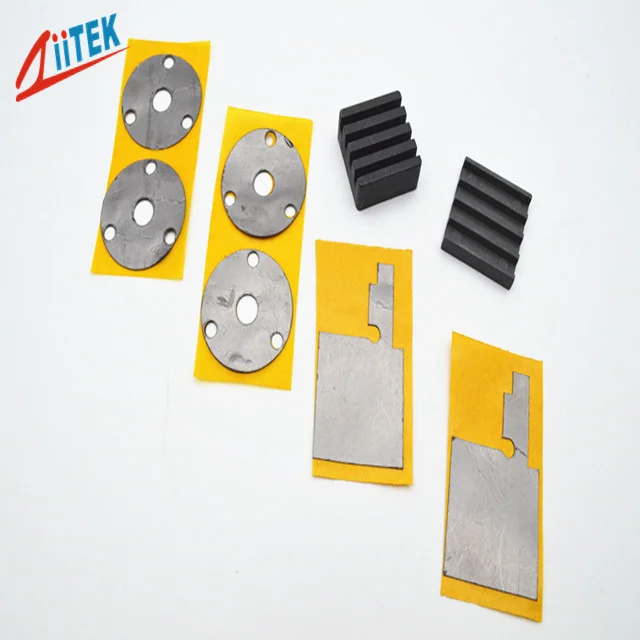

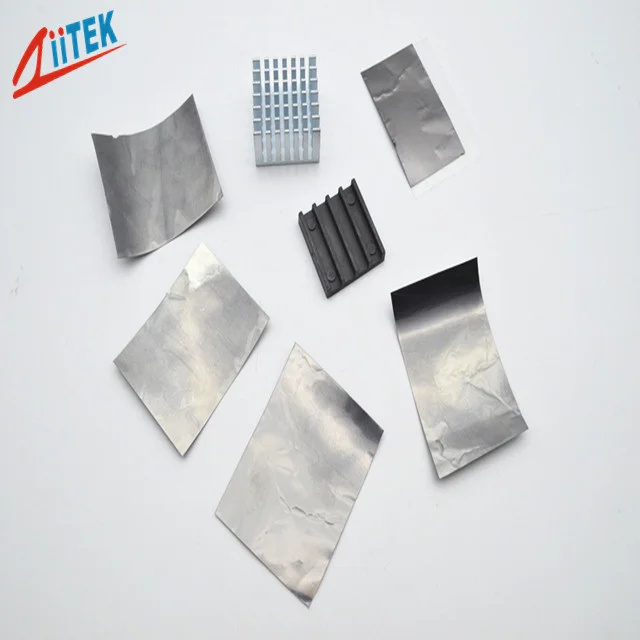

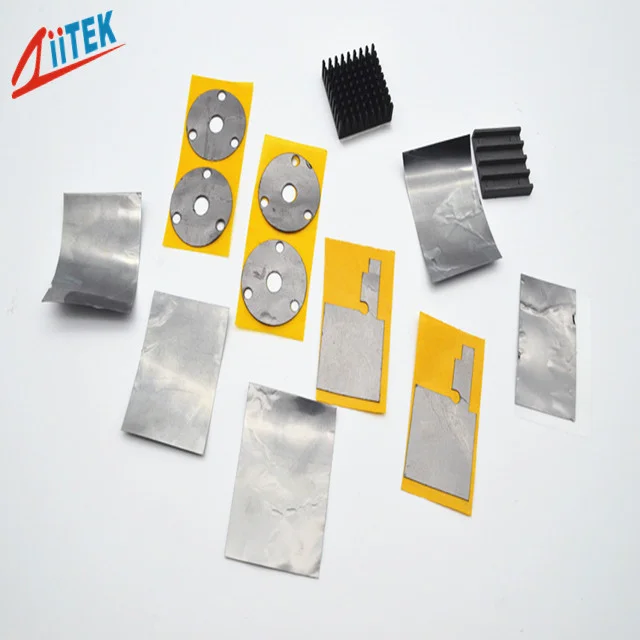

TIR600 Thermal Graphite Sheet
- Density
- 2.2 g/cm³
- Hardness
- 85 Shore A
- Thickness
- 0.127~0.508 mm
- Thickness Tolerance
- ±10% / ±10% / ±5% / ±5% mm
- Typical Thermal Conductiv…
- 240 W/m·K
- Typical Thermal Conductiv…
- 6.0 W/m·K
TIR600 — Product overview
TIR™600 Series products are high-performance and heat-conductive interface materials with the reasonable prices. They can be used in applications where no requirement for electric insulation is specified. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained.
TIR600 — Features
Good thermal conductive
Easy to assemble
Ultra-thin type
RoHS Compliant
Where this grade is used

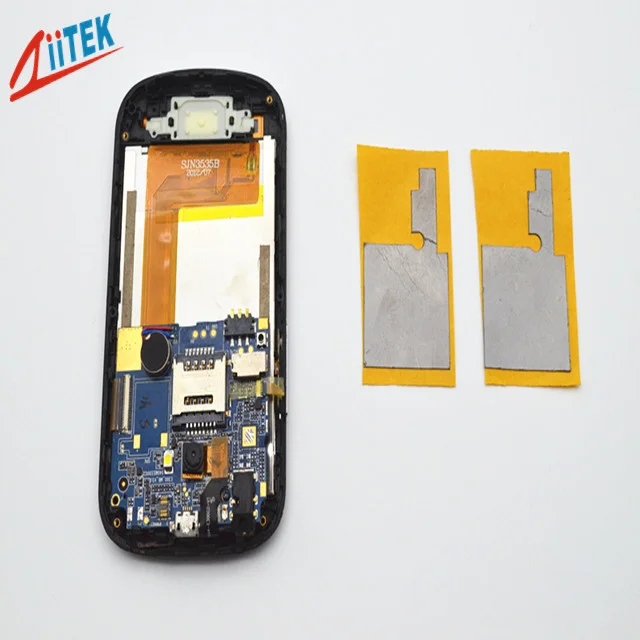

Typical application targets for this grade include PDP, LCD TV, Set top box, Laptop, Notebook, Projector, Mobile phone, Hand-held devices, Automotive electronics.
Servers · GPU · accelerators · DIMM
Data Center & AI Servers
High-flux silicon and dense PCBs — CPU/GPU bond-lines, VRM/DIMM/NIC interfaces, and accelerator cold-plate paths. Match grade against clamp force, TIM impedance, and rework cadence.
Drives · IGBT · controllers · sensors
Power Tools & Control Systems
Industrial controls, motor drives, power-stage IGBTs, and rugged modules — thermal interfaces, sealing, and encapsulation built for serviceable assemblies and harsh environments.
TIR600 — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIR™-600-Series-Natural-graphite-gasket.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Product Name | TIR™605 / TIR™606 / TIR™610 / TIR™620 | — |
| Colour | Black | Visual |
| Material | Natural Graphite | — |
| Thickness | 0.005" (0.127mm) / 0.006" (0.152mm) / 0.010" (0.254mm) / 0.020" (0.508mm) | ASTM D751 |
| Thickness Tolerance | ±10% / ±10% / ±5% / ±5% | ASTM D751 |
| Density | 2.2 g/cm³ / 2.2 g/cm³ / 2.2 g/cm³ / 2.2 g/cm³ | ASTM D297 |
| Hardness | 85 Shore A | ASTM D2240 |
| Operation Temperature | -200°C ~300°C | — |
| Volume Resistivity (Ω·m) | 3.2×10³ | ASTM D257 |
| Typical Thermal Conductivity (In Z axis) | 6.0 W/m·K / 6.0 W/m·K / 6.0 W/m·K / 6.0 W/m·K | ASTM D5470 |
| Typical Thermal Conductivity (In X-Y axis) | 240 W/m·K / 240 W/m·K / 240 W/m·K / 240 W/m·K | — |
| Thermal Resistance @100psi | 0.037 in²°C/W / 0.042 in²°C/W / 0.057 in²°C/W / 0.098 in²°C/W | ASTM D5470 |
* Match values to the PDF revision cited on your purchase order.
Related graphite sheets for thermal management models
| Model | Thickness | X-Y Conductivity | View |
|---|---|---|---|
| TIR300 | 0.012~0.040 mm | 1200~1700 W/m·K | Details |
| TIR300AL | 0.050~0.080 mm | 450 W/m·K | Details |
| TIR300C | 0.040~0.080 mm | 700 W/m·K | Details |
| TIR300CU | 0.060~0.080 mm | 320 W/m·K | Details |
| TIR300G | 0.005~0.15 mm | 2.0 | Details |
| TIR300L-A1 | 0.15 mm | 2.5 | Details |
| TS-TIR700-09 | 1.0~5.0 mm | 9.0 | Details |
| TS-TIR700-25 | 0.3~5.0 mm | 25 | Details |
TIR600 — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIR600?
The customer workbook lists nominal through-plane conductivity as — W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIR600 die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Graphite sheets for thermal management parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIR600?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIR600 RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
