TIR300CU Thermal Graphite Sheet
- Copper foil thickness
- 0.030~0.050 mm
- Density (g/cm³)
- 2.7
- Hardness
- 85 Shore A
- Single-sided coating Thic…
- 0.015 mm
- Thickness Tolerance
- ±10% mm
- Total Thickness
- 0.060~0.080 mm
TIR300CU — Product overview
TIR™300CU Series products are a new material with highly effective heat conductivity and absorption, stabilized device function and reduce the chance of malfunction by spreading the high temperature heat radiated from specific parts or devices.
TIR300CU — Features
Good thermal conductive
Easy to assemble
Ultra-thin type
RoHS Compliant
Where this grade is used

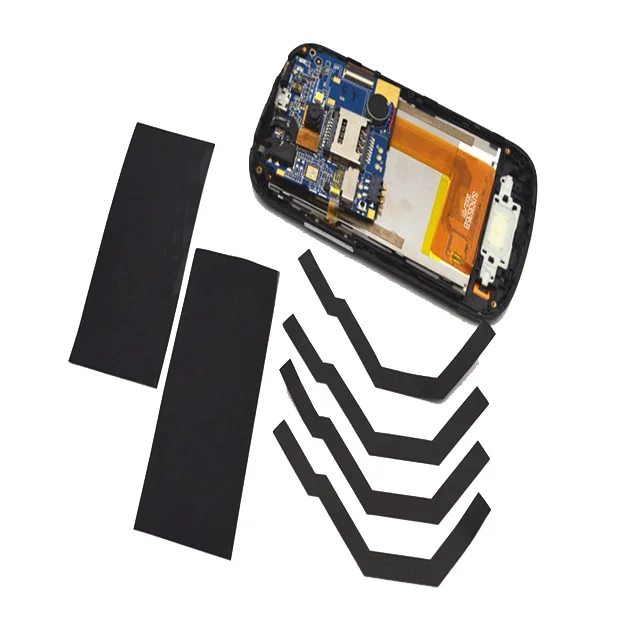

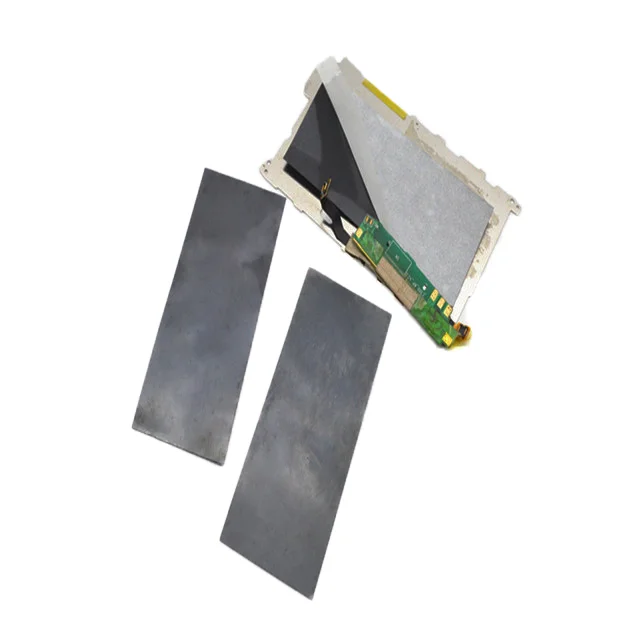

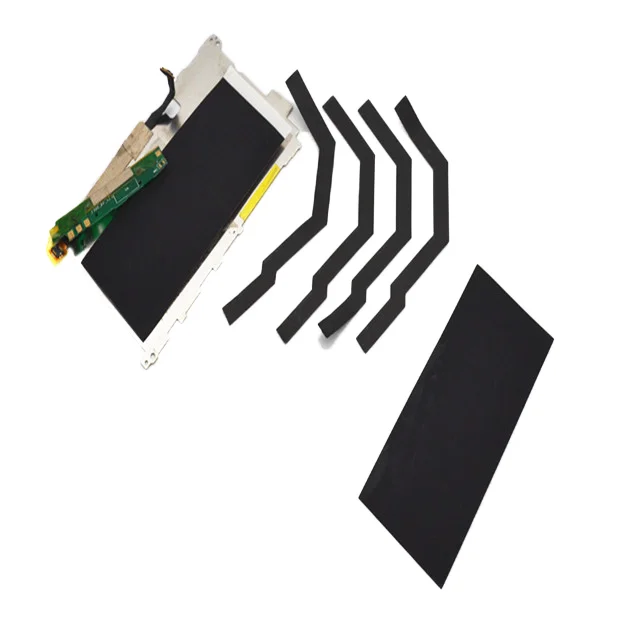

Typical application targets for this grade include PDP, LCD TV, Set top box, Laptop, Notebook, Projector, Mobile phone, Hand-held devices, Automotive electronics.
Servers · GPU · accelerators · DIMM
Data Center & AI Servers
High-flux silicon and dense PCBs — CPU/GPU bond-lines, VRM/DIMM/NIC interfaces, and accelerator cold-plate paths. Match grade against clamp force, TIM impedance, and rework cadence.
Drives · IGBT · controllers · sensors
Power Tools & Control Systems
Industrial controls, motor drives, power-stage IGBTs, and rugged modules — thermal interfaces, sealing, and encapsulation built for serviceable assemblies and harsh environments.
TIR300CU — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIR™-300CU-Series-Copper-Composite-Carbon-Nano-Coating.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Product Name | TIR™360CU-T2 / TIR™380-CU-T2 | — |
| Colour | Black | Visual |
| Material | Copper Composite Carbon Nano Coating | — |
| Total Thickness | 0.060 mm / 0.080 mm | ASTM D751 |
| Copper foil thickness | 0.030 mm / 0.050 mm | ASTM D751 |
| Single-sided coating Thickness | 0.015 mm | ASTM D751 |
| Thickness Tolerance | ±10% | ASTM D751 |
| Density (g/cm³) | 2.7 | ASTM D297 |
| Hardness | 85 Shore A | ASTM D2240 |
| Operation Temperature | -40°C ~250°C | — |
| Volume Resistivity (Ω·m) | 6.3×10⁹ | ASTM D257 |
| Tensile Strength | 30 psi / 40 psi | ASTM D412 |
| Typical Thermal Conductivity (In Z axis) | 140 W/m·K | ASTM D5470 |
| Typical Thermal Conductivity (In X-Y axis) | 320 W/m·K | ASTM D5470 |
| Thermal Resistance @100psi | 0.075 in²°C/W / 0.100 in²°C/W | ASTM D5470 |
* Match values to the PDF revision cited on your purchase order.
Related graphite sheets for thermal management models
| Model | Thickness | X-Y Conductivity | View |
|---|---|---|---|
| TIR300 | 0.012~0.040 mm | 1200~1700 W/m·K | Details |
| TIR300AL | 0.050~0.080 mm | 450 W/m·K | Details |
| TIR300C | 0.040~0.080 mm | 700 W/m·K | Details |
| TIR300G | 0.005~0.15 mm | 2.0 | Details |
| TIR300L-A1 | 0.15 mm | 2.5 | Details |
| TIR600 | 0.127~0.508 mm | 240 W/m·K | Details |
| TS-TIR700-09 | 1.0~5.0 mm | 9.0 | Details |
| TS-TIR700-25 | 0.3~5.0 mm | 25 | Details |
TIR300CU — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIR300CU?
The customer workbook lists nominal through-plane conductivity as — W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIR300CU die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Graphite sheets for thermal management parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIR300CU?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIR300CU RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
