TCP200-50-02A Thermally Conductive Plastic
- Dielectric Constant, 1MHz
- 4.5
- Flame Retardancy
- V-0 Class
- Specific Gravity (g/cm³)
- 1.45
- Thermal Conductivity Thro…
- 5.0
- Volume Resistivity (Ω·m)
- 10000
- Bake Temperature
- 100-120°C 4H
TCP200-50-02A — Product overview

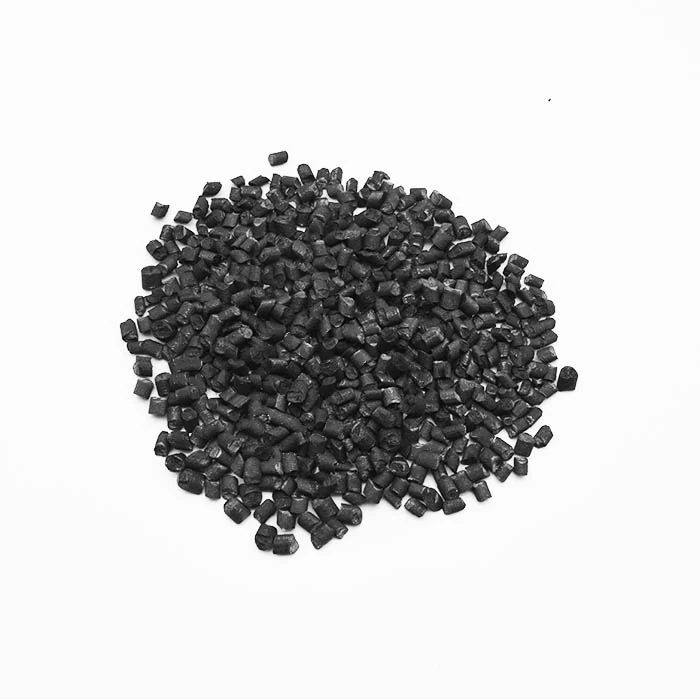

TCP™200-50-02A is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.
TCP200-50-02A — Features
Good thermal conductivity
Excellent thermal conductivity compared to normal engineering plastics
Lighter than normal Aluminum housing 30% in weight
Excellent mould ability in injection moulding
Much higher production yield than normal
Where this grade is used

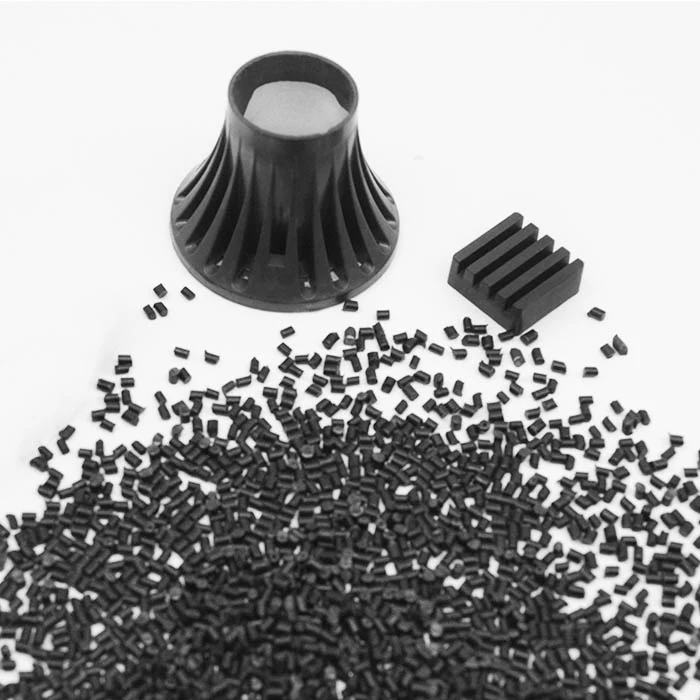

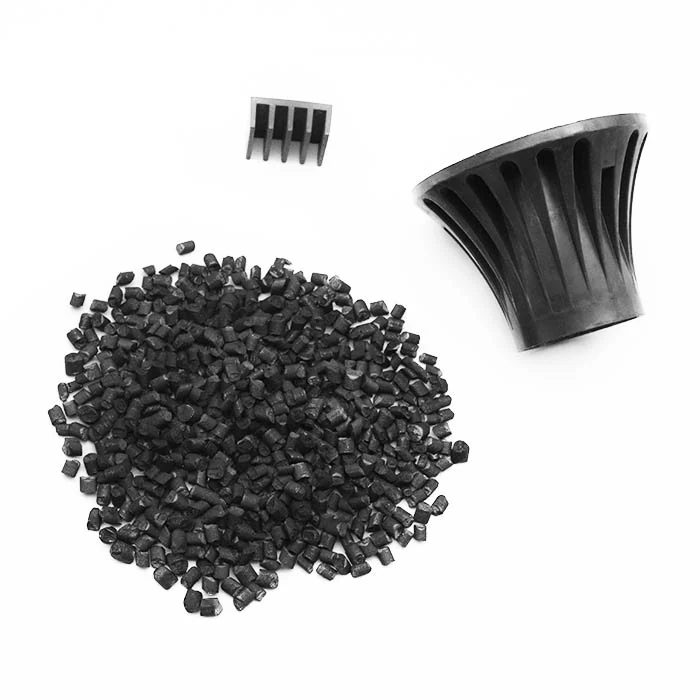

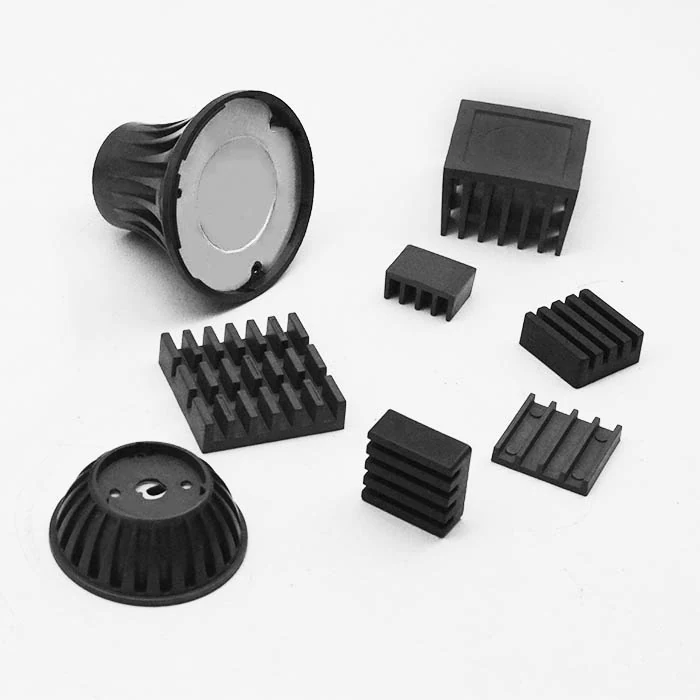

Typical application targets for this grade include TCP™200-50-02A can be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink..
TCP200-50-02A — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TCP200-50-02A-Thermally-Conductive-plastic.pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Physical Properties | ||
| Material | Nylon | — |
| Color | Black | Visual |
| Melt index | 4 g/10min | ASTM D1238 |
| Specific Gravity (g/cm³) | 1.45 | ASTM D792 |
| Shrinkage | 0.3~0.5 % | ASTM D955 |
| Mechanical Properties | ||
| Tensile Strength | 55 MPa | ASTM D638 |
| Flexural Strength | 80 MPa | ASTM D790 |
| Flexural Modulus | 15800 MPa | ASTM D638 |
| Impact Strength, notched | 2.5~3.5 kJ/m² | ASTM D256 |
| Electrical Properties | ||
| Dielectric Constant, 1MHz | 4.5 | ASTM D150 |
| Volume Resistivity (Ω·m) | 10000 | ASTM D257 |
| Thermal Properties | ||
| Heat Deflection Temperature | 150 °C | ASTM D648 |
| Vicat Temperature | 15.0 °C | ASTM D648 |
| Thermal Conductivity Through Plane (W/m·K) | 5.0 | ASTM E1461 |
| Flame Retardancy | V-0 Class | Min. thick. 1.0mm |
| Injection Parameters of Recommends | ||
| Barrel Zone Temperature — One sect | 240-260°C | — |
| Barrel Zone Temperature — Two sect | 250-270°C | — |
| Barrel Zone Temperature — Three sect | 260-280°C | — |
| Mouth Temperature | 265-280°C | — |
| Melt Temperature | 250-280°C | — |
| Bake Temperature | 100-120°C 4H | — |
| Mould Temperature | 80-100°C | — |
| Injection Pressure | 3-9Mpa Bar | — |
| Injection Speed | Medium speed mm/s | — |
* Match values to the PDF revision cited on your purchase order.
Related thermally conductive plastics models
| Model | λ (W/m·K) | Specific Gravity | View |
|---|---|---|---|
| TCP100-07-06A | 0.7 W/m·K | 1.5 | Details |
| TCP100-01PP | 0.8 W/m·K | 1.55 | Details |
| TCP300PS-09-02A | 0.9 W/m·K | 1.7 | Details |
| TCP300PS-09-06A | 0.9 W/m·K | 1.7 | Details |
| TCP300PS-09-06A1 | 0.9 W/m·K | 1.6±0.05 | Details |
| TCP300PS-10-02S | 1.1 W/m·K | 1.7 | Details |
| TCP200-15-02A | 1.5 W/m·K | 1.45 | Details |
| TCP100-18-06A | 1.8 W/m·K | 1.55 | Details |
TCP200-50-02A — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TCP200-50-02A?
The customer workbook lists nominal through-plane conductivity as 5 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TCP200-50-02A die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Thermally conductive plastics parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TCP200-50-02A?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TCP200-50-02A RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
