How to Find a Drop-in Replacement Thermal Pad

The right way to find a drop-in replacement thermal pad is to stop shopping by brand and start matching numbers. The right way to evaluate a drop-in replacement thermal pad is to stop shopping by brand and start matching engineering requirements. A candidate replacement should be compared with the incumbent across key parameters such as thermal conductivity, thermal impedance, hardness, thickness, footprint, compression behavior, operating temperature and compliance requirements. The closer these characteristics are under the actual assembly conditions, the greater the likelihood that the replacement can be adopted with minimal design changes and qualification effort.

This guide walks through the key specifications in the order a design engineer should evaluate them, using ZIITEK materials as worked examples. If any one of those five numbers drifts, the part may fit but the thermal performance changes, and that's how an "equivalent" pad becomes a field failure. This guide walks through each spec in the order a design engineer should check it, using ZIITEK grades as worked examples.

What a "Drop-in Replacement" Thermal Pad Really Means

In engineering terms, a drop-in replacement is a part that swaps into an existing design with zero changes to the mechanical stack-up, the assembly process, or the thermal budget. For a thermal pad, that means the thermal pad must sit at the same compressed thickness in the same gap, carry the same heat flux, and survive the same environment as the part it replaces.

Engineers reach for a drop-in swap for three reasons: the incumbent material is on allocation, the incumbent brand raised price or lead time, or the project needs a second qualified source. Whatever the trigger, the goal is the same — change the supplier, not the design. The fastest way to get there is a spec-by-spec comparison against the incumbent's datasheet, which is exactly what the thermal material cross-reference library organizes by grade.

Two traps trip up most attempts. First, matching only one number: a pad with identical W/mK but a stiffer hardness changes contact pressure and can crack or spring components. Second, trusting marketing descriptions: "high performance" and "premium thermal pad" carry no engineering meaning — the datasheet does. So the discipline below is simple: five numbers, checked in order, each against the incumbent's datasheet, not against its brochure.

Step 1: Match Thermal Conductivity (W/mK)

Thermal conductivity is the number most people start with, and it is genuinely the first thing to check. Measured in W/mK, it describes how readily heat moves through the material. The standard method for comparing pads is ASTM D5470, which measures thermal impedance through a sample under a defined load and thickness — so when two datasheets both cite ASTM D5470, their W/mK values are roughly comparable. Values measured by other methods may not be, a problem the thermal interface material literature has been warning about for decades.

The practical matching rule: aim for the incumbent's W/mK within ±10%. Thermal pads sit in the middle of a thermal stack (heat source → pad → heatsink), and their bulk conductivity rarely dominates the total junction-to-ambient resistance — the interfaces and the heatsink usually matter more. A pad at 3.0 W/mK replacing a 3.3 W/mK incumbent is usually fine; a pad at 1.5 W/mK replacing 3.0 W/mK is a different design. If you want the reasoning behind that tolerance band, what W/mK really measures walks through conductivity versus impedance in more detail.

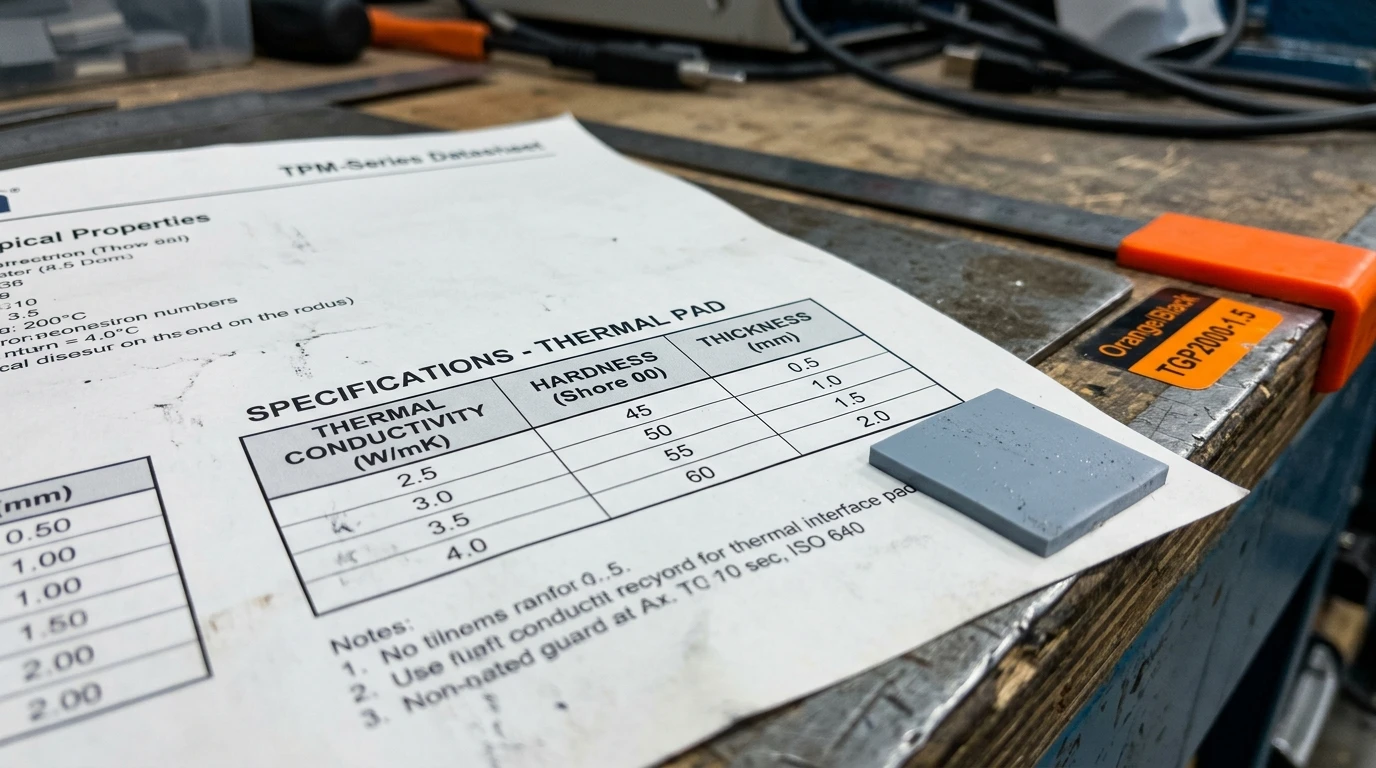

Reading a thermal pad datasheet: W/mK, Shore 00 hardness and thickness are the three columns a drop-in comparison starts from.

For reference, a typical silicone thermal pad portfolio spans roughly 1 to 16 W/mK. ZIITEK's TIF® series covers 1.25–16 W/mK with UL 94 V-0 flame ratings; higher grades (10–16 W/mK) serve high-density CPU/GPU and AI accelerator designs, while 1.5–5 W/mK grades cover most consumer electronics and power modules. Whatever grade you land on, record the W/mK value and the test method together — an unstated test method is a red flag on any thermal pad datasheet.

Step 2: Match Hardness (Shore 00) and Compression

Hardness is the most underrated number in thermal pad selection, because it determines how much force the pad exerts on the components it touches. Pads are soft by design — most are rated on the Shore 00 scale, where lower numbers mean softer material (a Shore durometer scale explains the difference from Shore A and D). A typical silicone pad runs 5–70 Shore 00, and the TIF® series spans exactly that range.

Why it matters for a drop-in swap: a softer pad compresses more under the same clamp, so it fills uneven gaps with less component stress. If the incumbent was 30 Shore 00 and your replacement is 70 Shore 00, the replacement transmits more force through the same stack — risk of bending thin PCBs, lifting BGA balls, or simply not compressing enough because the frame wasn't designed for a stiffer material. Conversely, too soft a pad can squeeze out of the gap over time or deform under reflow temperatures.

Match hardness to the application's stress budget. For low-stress, large-gap or fragile-component designs, consider whether a pad is even the right form factor — a one-part thermal gel or gap filler applies near-zero pressure and can be dispensed to odd shapes. The trade-offs between gap filler, gap pad and phase change material are worth reading before you commit to a pad. When you do stay with a pad, keep the replacement within roughly ±5 Shore 00 of the incumbent, and verify compression behavior (deflection at 25% strain is the typical datasheet value) rather than just the durometer reading.

Step 3: Match Thickness, Gap and Compression Ratio

Thickness is where drop-in replacements silently fail, because the datasheet thickness is the uncompressed value — what matters in the assembly is the compressed layer thickness (CLT) under the real clamp load. The thermal pad thickness and compression guide on this blog covers the physics in depth; here is the drop-in version.

The mechanical rule: the pad should be 10–30% thicker than the nominal gap, so it compresses to fill the gap with positive contact pressure. A 2.0 mm gap wants roughly a 2.3–2.6 mm pad; an uncompressed 2.0 mm pad in a 2.0 mm gap may never develop contact at all. That means thickness tolerance matters as much as the nominal value — a pad spec'd "2.0 mm ±0.2" covers a different design than one spec'd "2.0 mm ±0.05". TIF® pads are available from 0.25 to 12 mm; thin grades (≤1 mm) are typically used with tight-tolerance gaps, thicker grades for large voids.

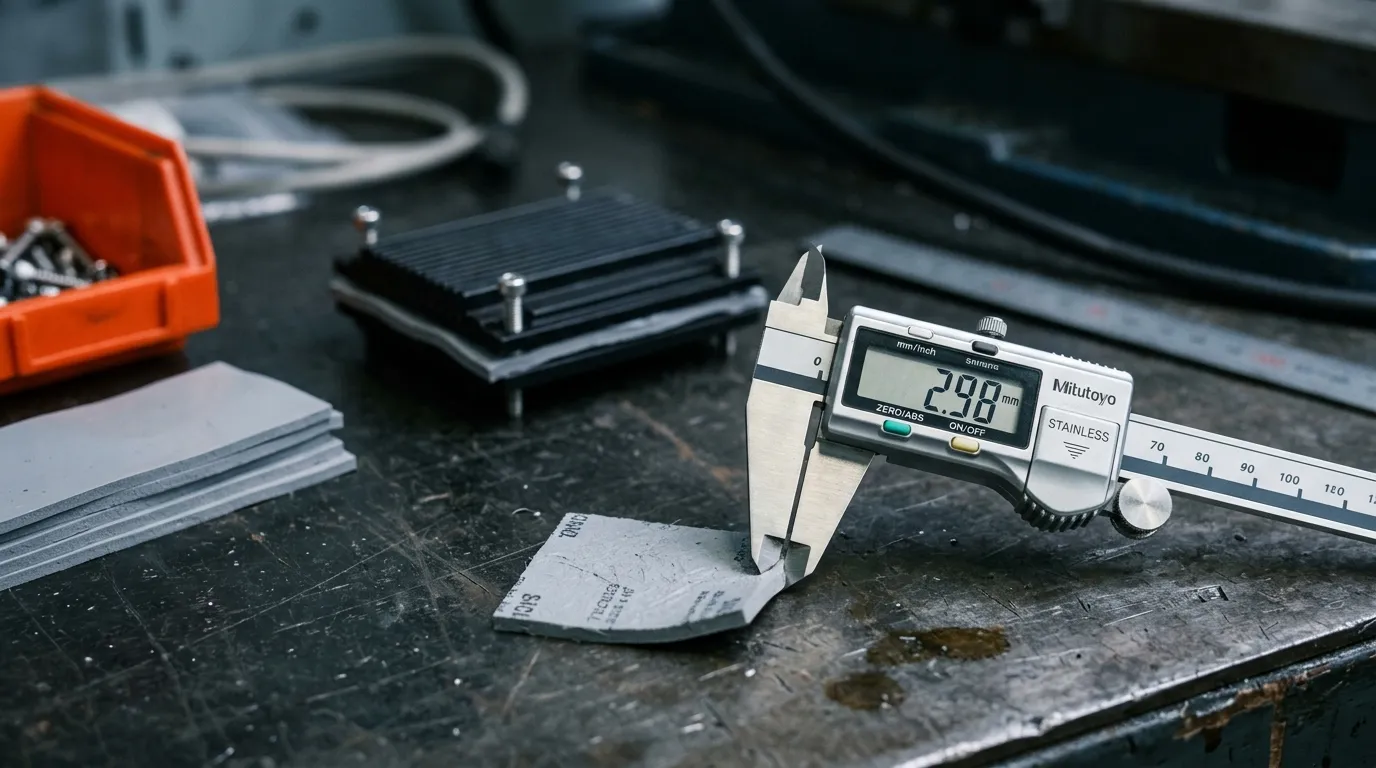

Thickness sets everything downstream: compression ratio, contact pressure and thermal impedance all change with this one number.

Changing thickness changes two things at once: the compressed thickness (which sets thermal impedance versus thermal resistance) and the force the pad applies. If the incumbent datasheet lists thermal impedance at a specific thickness and pressure (typically 50 psi), your replacement must be compared at the same conditions — comparing a 1.0 mm impedance number against a 3.0 mm number is comparing two different parts. Match thickness within ±0.1 mm of the incumbent whenever the design's clamp force is fixed, and confirm the pad's compression set (permanent deformation after long-term load) is in the same class.

Step 4: Match Size, Shape and Adhesion

Physical dimensions are the easiest spec to get right and the easiest to get subtly wrong. Measure the incumbent's footprint and note its tolerances: pads are often die-cut to shape, and the edge trim matters for fit in a recessed pocket. A pad that is 1 mm wider than the pocket buckles when the lid closes; one that is 1 mm narrower leaves a thermal void along the edge. Most manufacturers, including ZIITEK, offer custom die-cutting to match the exact footprint — supply the drawing or a sample and the part comes back to size.

Adhesion is the second question. Plain pads rely on compression and surface tack to stay in place; pressure-sensitive adhesive (PSA) versions stick to the heatsink or component and simplify assembly. If the incumbent was adhesive-backed, an adhesive-free replacement changes the assembly process — it may slide during rework or require a fixture. If the incumbent was non-adhesive, an adhesive version can be a pain to reposition. Match the adhesion style, or be prepared to update the assembly instructions.

Also check whether the incumbent material was actually a silicone pad at all. If the application is silicone-sensitive — optical modules, some sensors, high-voltage environments where silicone oils migrate — the drop-in equivalent is a thermal pad vs thermal paste comparison made from non-silicone chemistry, not another silicone pad. ZIITEK's Z-Paster®100 series (1.5–10 W/mK) covers that class, and the distinction is one of the most common reasons a "same-looking" replacement fails qualification.

One chemistry question engineers ask before any pad swap: can I replace a thermal pad with thermal paste (or grease)? The honest answer is "only when the design allows it." Thermal pads are solid, pre-formed gap fillers that tolerate large, irregular gaps and survive rework — paste is a liquid that needs a thin, well-controlled bond line (typically 25–100 µm), a flat mating surface, and pump-out resistance under thermal cycling. Replacing a pad with paste on a component with a 1–3 mm standoff leaves an unmanageable bond line; replacing paste with a pad on a flat CPU cooler changes the thermal path. So a pad-to-paste substitution is a thermal redesign, not a drop-in swap — treat the material class as part of the spec you are matching, and use the pad-vs-paste guide above to see the full trade-off.

Step 5: Verify Temperature Range, Outgassing and Compliance

The last matching pass covers the environment, and it filters out most "almost equivalent" candidates:

• Operating temperature range. The pad must survive the worst-case operating and storage temperatures of the assembly. Silicone thermal pads typically run −40 to +200 °C; phase change materials and some tapes are limited to roughly 125 °C. If the incumbent ran at 150 °C continuous, don't swap in a 125 °C-max material.
• Flammability. If the original design calls for a UL 94 V-0 rated pad (common in consumer electronics, power supplies and automotive), the replacement must carry the same rating — check the UL Yellow Card, not the datasheet's marketing line.
• Outgassing and volatiles. For optical, camera and sealed applications, low-molecular-weight silicone outgassing can fog lenses and contaminate contacts. Low-volatile grades (such as ZIITEK's TIF®100L, D3–D20 low-silicone) exist precisely for this class; if the incumbent specified low volatility, so must the replacement.
• Chemical compliance. RoHS and REACH compliance are table stakes for EU-bound products; automotive programs additionally require IATF 16949 supply-chain certification. Ask for the certificates alongside the datasheet — established suppliers document these requirements in their thermal interface materials portfolio, which makes a useful checklist against the incumbent's certificates.

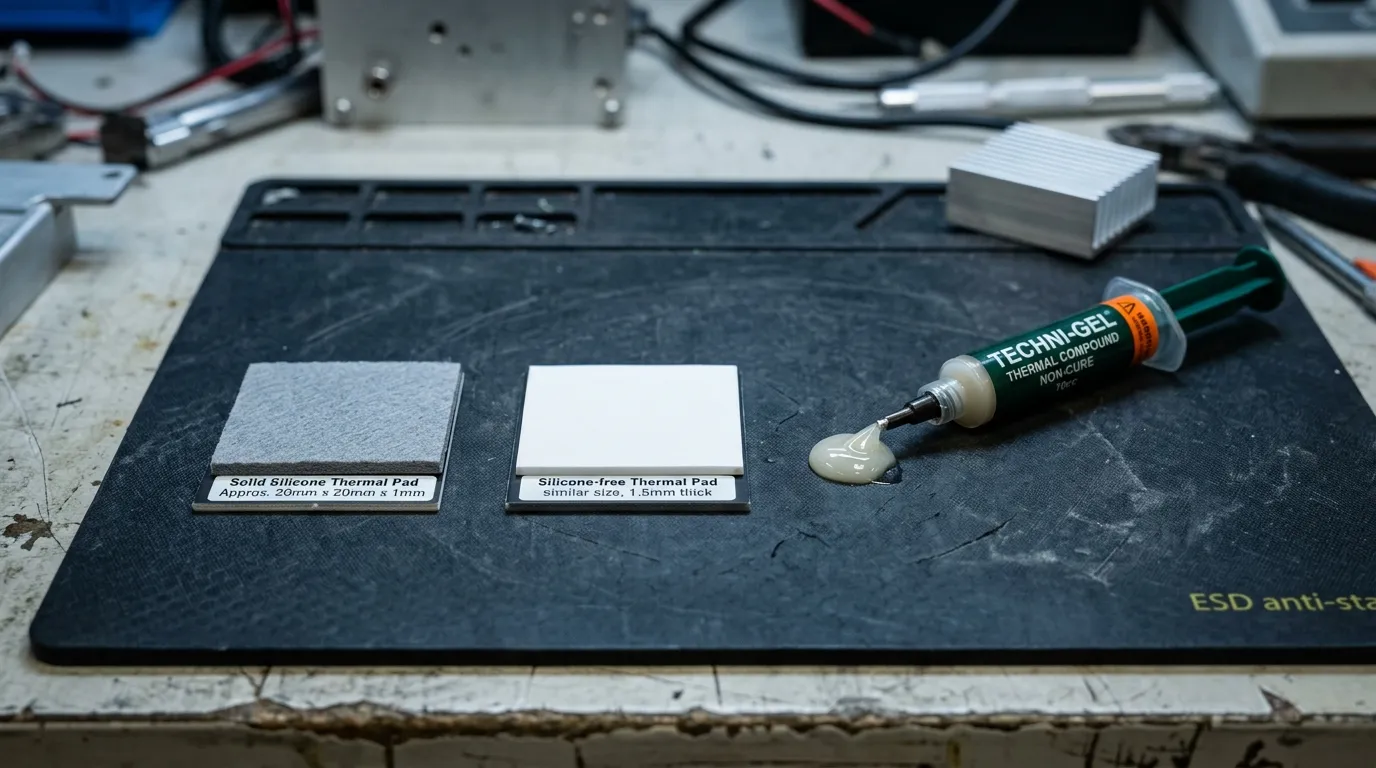

Form factor matters: solid pad, silicone-free pad and gel are different answers to the same gap, with different stress, temperature and outgassing profiles.

A Worked Cross-Reference Example

To make the method concrete, here is a real cross-reference sample from ZIITEK's engineering team. The table below maps ZIITEK grades to the incumbent brands they were cross-referenced against — the same exercise works in reverse, starting from any incumbent datasheet. The thermal material cross-reference hub maintains this kind of brand-to-brand mapping across pads, gels and phase change materials.

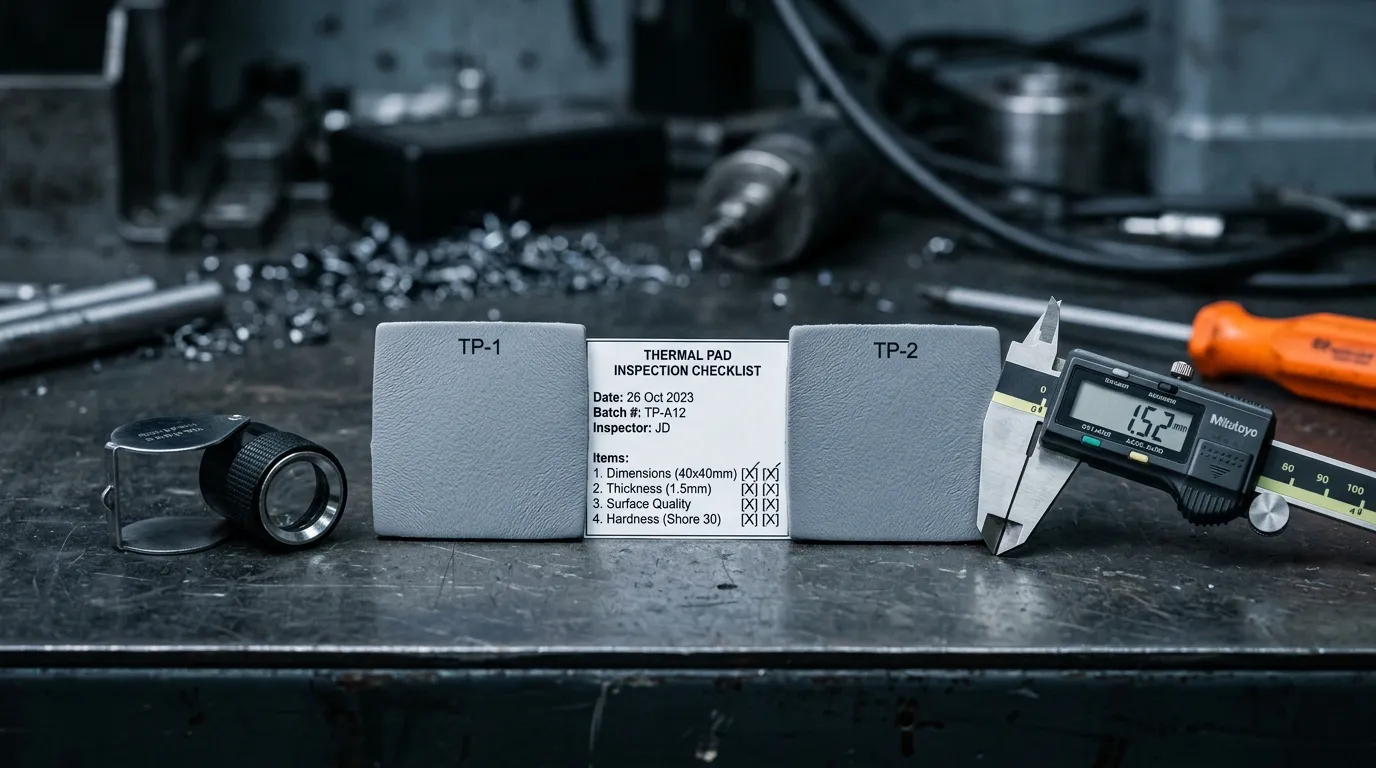

The matching workflow in practice: incumbent part, candidate part and datasheet checklist side by side before sampling.

Two cautions about cross-reference tables. First, a table matches nominal specs — it does not replace a sample test, because hardness and thickness tolerances interact with your specific clamp design. Second, tables drift as suppliers revise grades, so verify the current datasheet of both the incumbent and the candidate before you commit. Use the table as a shortlist builder, not as a certificate of equivalence.

Drop-in Replacement Checklist

Run through this list before you request samples, and again before you approve production:

1. W/mK within ±10% of the incumbent, same test method (ASTM D5470 preferred).
2. Hardness within ±5 Shore 00, compression deflection in the same class.
3. Thickness within ±0.1 mm; compare thermal impedance at the same thickness and pressure.
4. Footprint and tolerances match; die-cut to the same drawing if needed.
5. Adhesion style matches (plain vs PSA).
6. Temperature range, UL 94 V-0 rating, outgassing class and RoHS/REACH/IATF compliance verified.
7. Sample test: assemble into the real stack-up, measure junction temperature and interface impedance under production clamp conditions, and thermal-cycle if the application demands it.

The whole exercise takes an afternoon with the incumbent's datasheet and a supplier who can answer questions 1–6 with numbers, not adjectives. When you have a shortlist, order samples and measure — the sample test is the only step that cannot be shortcut. A ZIITEK engineer can typically confirm the closest replacement grade from your incumbent's datasheet in a single call, custom die-cutting is available so the drop-in is a true drop-in, and the broader how to choose a thermal interface material guide covers the full TIM landscape if you are starting from scratch.
