TIG680-28AB Silicone Potting Compound
- Breakdown Voltage (V/mm)
- ≥8000
- Density (g/cm³)
- 2.95
- Dielectric Constant @1MHz
- 6.0~8.0
- Flame Rating
- V-0
- Hardness (Shore A)
- 25
- Part A Viscosity (mPa·s)
- 7000
TIG680-28AB — Product overview

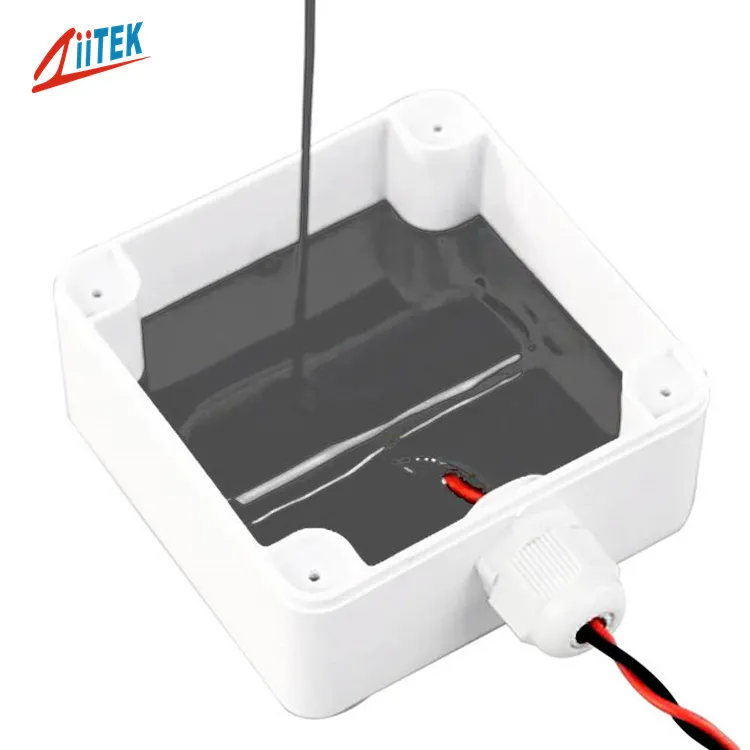

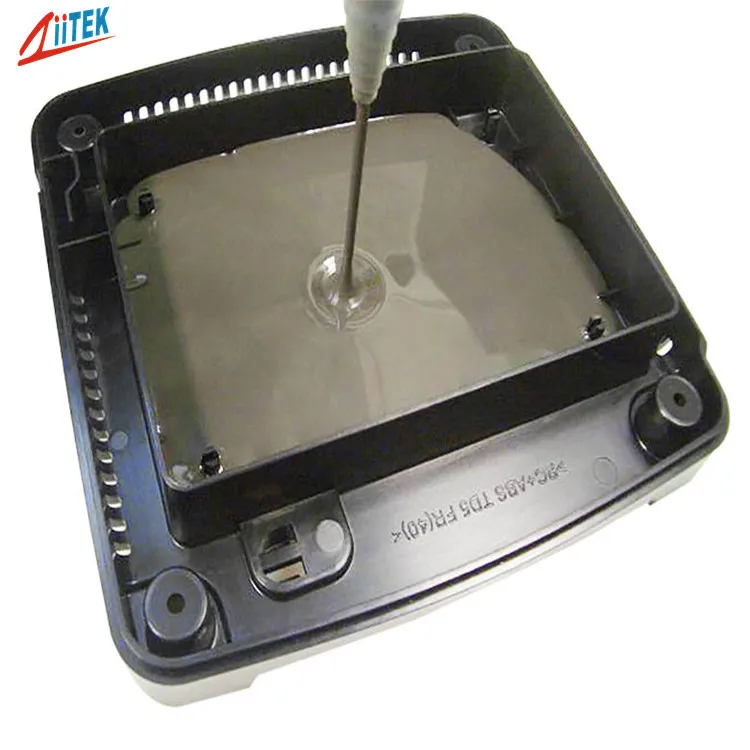

TIG® 680-28AB Series is a two-component high thermal conductivity silicone sealant with room temperature curing, long working time, and flame retardant properties. This product is particularly suitable for sealing capacitors and small electronic devices. Its excellent flexibility properties enable it to provide excellent cushioning protection for coating materials. The low viscosity characteristic enables the thermal conductive sealant to cover the surface more comprehensively, greatly improving the heat transfer efficiency of the heating element or the entire printed circuit board to the metal shell or heat dissipation plate, thereby improving the performance and service life of electronic components.
TIG680-28AB — Features
Good thermal conductive
Good insulation performance
Good elasticity
Lower shrinkage
Low viscosity, easy gas emissions
Good solvent resistance and waterproof performance
Where this grade is used
Typical application targets for this grade include Industrial control, transformer, coil, amplifier, high voltage package, relay, high current junction box, etc, Heat sink assembly, thermal sensor potting, thermal conductive product potting, Heat conduction between the battery cell and the cold tube, LED and power drive potting.
EV packs · OBC · inverters · BMS
New energy
EV battery modules, traction inverters, on-board chargers, and renewable power conversion — thermal management for high-current cycling loads with HV isolation requirements.
Drives · IGBT · controllers · sensors
Power Tools & Control Systems
Industrial controls, motor drives, power-stage IGBTs, and rugged modules — thermal interfaces, sealing, and encapsulation built for serviceable assemblies and harsh environments.
TIG680-28AB — datasheet specifications
Values below are transcribed from the official datasheet (PDF: TIG680-28AB_Data-sheet..pdf). Use the linked PDF for sign-off and lot-specific CoA.
Request application engineering support| Parameter | Value (typical / as stated) | Method / note |
|---|---|---|
| Material Properties (Before Curing) | ||
| Color/Part A | White | Visual |
| Color/Part B | Gray | Visual |
| Part A Viscosity (mPa·s) | 7000 | GB/T 10247 |
| Part B Viscosity (mPa·s) | 8000 | GB/T 10247 |
| Mix Ratio | 1:1 | Ziitek Test Method |
| Shelf Life | 6 months (Unopened) | Ziitek Test Method |
| Cure Schedule | ||
| Pot Life @25°C | 30~45 mins | Ziitek Test Method |
| Cure @70°C | 20~30 mins | Ziitek Test Method |
| Cure Material Properties | ||
| Color | Gray | Visual |
| Hardness (Shore A) | 25 | ASTM D2240 |
| Density (g/cm³) | 2.95 | ASTM D792 |
| Recommended Operating Temp | -45~200 °C | - |
| Flame Rating | V-0 | UL 94 |
| Thermal Conductivity (W/m·K) | 2.8 | ASTM D5470 |
| Breakdown Voltage (V/mm) | ≥8000 | ASTM D149 |
| Dielectric Constant @1MHz | 6.0~8.0 | ASTM D150 |
| Volume Resistivity (Ω·cm) | 1.0×10¹³ | ASTM D257 |
* Match values to the PDF revision cited on your purchase order.
Related silicone potting compounds models
TIG680-28AB — common questions
Replacing another vendor’s TIM or need a stack review? Send drawings — applications responds quickly.
Talk to an engineerWhat is the nominal thermal conductivity of TIG680-28AB?
The customer workbook lists nominal through-plane conductivity as 2.8 W/m·K. What you measure depends on pressure, gap, and fixture — use the technical documentation as the reference.
Can Ziitek supply TIG680-28AB die-cut or in custom thickness?
Yes — send DXF/DWG outlines and stack height. Silicone potting compounds parts are routinely converted at Ziitek; tolerances depend on thickness and geometry.
Where is the documentation for TIG680-28AB?
Download the technical documentation from this page when available. If your revision differs, name the file from your RFQ so applications engineering matches it.
Is TIG680-28AB RoHS-aligned?
Ziitek targets RoHS-oriented formulations across TIM lines. Cite the compliance block for audits and tell us if you need additional regional substance lists.
